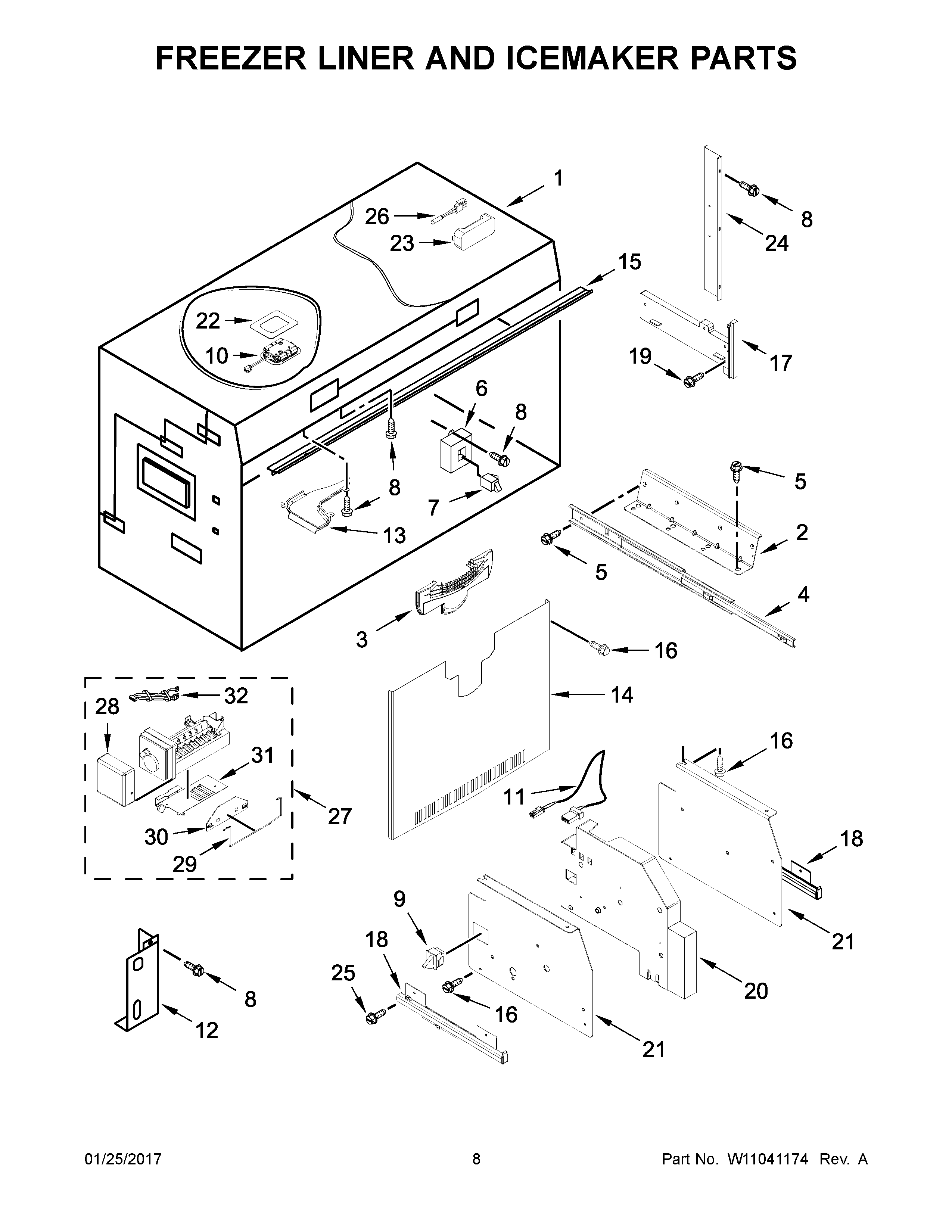

JF36NXFXDE01 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10744327
3MAY W10541687
4MAY W10423551
5MAY W10061370
6MAY W10606833
7MAY W10565415
8SCREW
9MAY W10565413
10ASSEMBLY, LED MODULE
11MAY W10568445
12MAY 2306187
13MAY W10552980
14MAY W10636533
15MAY W10710400
16MAY W10001160
17AMAY W10664383
17MAY W10664385
18MAY 2306117
18AMAY 2306116
20MAY W10647421
21AMAY W10600626
21MAY W10600630
22MAY W10672548
23MAY W10609678
24MAY W10538780
25MAY 488163
26MAY W10280386
27MAY W10645968
28COVER
29ARM, SHUT OFF
30EXTENSION-SHUT OFF ARM
31MAY 2221231
32WIRE ASSEMBLY, ICE MAKER
