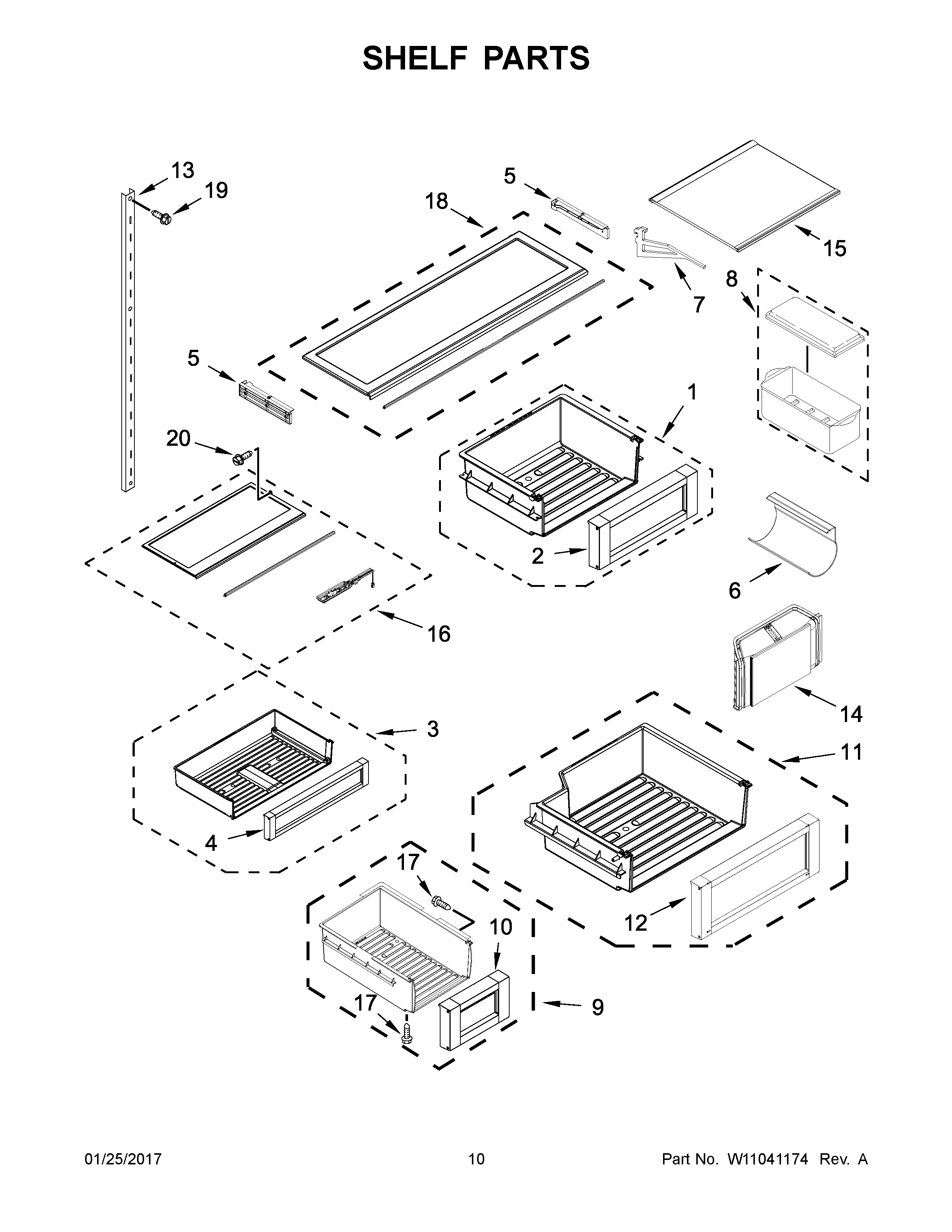

JF36NXFXDE01 06 – SHELF PARTS

JF36NXFXDE01 06 – SHELF PARTS

Written by

in

JF36NXFXDE01 06 – SHELF PARTS

Products

Position	Product
1	MAY W10529500
2	MAY W10529477
3	MAY W10529502
4	MAY W10529485
5	MAY W10569842
5A	MAY W10569839
6	RACK, WINE
7	SIDEARM, SHELF
8	MAY 2221071
9	MAY W10626679
10	MAY W10626676
11	MAY W10626680
12	MAY W10626677
13A	MAY W10743251
13	MAY W10743252
13B	MAY W10743232
14	MAY W10593207
15	MAY W10198700
16	MAY W10569933
17	MAY 488886
18	MAY W10569936
19	MAY W10745668
20	Screw, 8-15 x .500 (Black)
