JF36NXFXDE05 02 – CABINET PARTS

JF36NXFXDE05 02 – CABINET PARTS

Written by

in

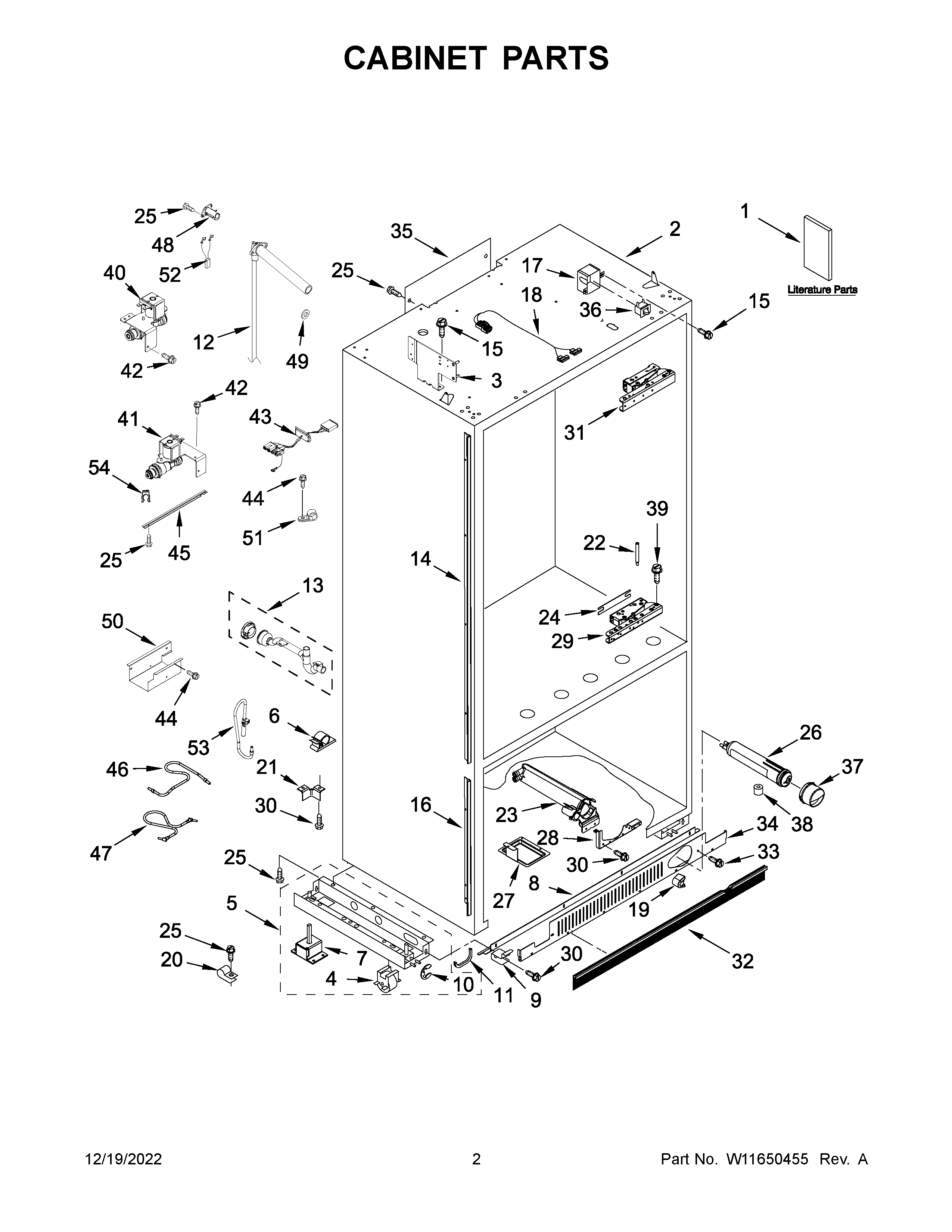

JF36NXFXDE05 02 – CABINET PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W10744761 Whirlpool Refrigerator Installation Kit
NI	W10234156 Whirlpool Refrigerator Installation Kit
NI	W11175806 Whirlpool Refrigerator Installation Kit
NI	W10704869 Whirlpool Installation Kit
1C	TECH SHEET
1	USE AND CARE GUIDE
1A	ENERGY GUIDE
1B	INSTALLATION INSTRUCTIONS
1D	WIRING DIAGRAM
2	CABINET (NOT A SERVICEABLE PART)
3	W11042558 Whirlpool Refrigerator Bracket
3A	W11042559 Whirlpool Refrigerator Bracket
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5A	W10860448 Whirlpool Refrigerator Support
6	CLIP
7	2005032 Whirlpool Refrigerator Leveler
8	W10634858 Whirlpool Refrigerator Trim Grill
9	W10839844 Whirlpool Refrigerator Bracket
10	2006841 Whirlpool Ring
11	2307584 Whirlpool Refrigerator Grommet
12	2317847 Whirlpool Refrigerator Water Tube
13	W11291510 Whirlpool Refrigerator Valve
14	W10687588 Whirlpool Refrigerator Cabinet Trim
14A	W10687582 Whirlpool Refrigerator Cabinet Trim
15	WP965173 Whirlpool Dishwasher Screw
16	W10714137 Whirlpool Refrigerator Cabinet Trim
16A	W10687583 Whirlpool Refrigerator Cabinet Trim
17	COVER, SWITCH (LEFT & RIGHT HAND)
18	W10740131 Whirlpool Jumper Wire
19	WP2260503B Whirlpool Refrigerator Button
20	W10833902 Whirlpool Refrigerator Clamp
21	2006617 Whirlpool Refrigerator Bracket
22	W10234202 Whirlpool Refrigerator Hinge Pin
23	WPW10121140 Whirlpool Refrigerator Housing
24	W10291661 Whirlpool Refrigerator Hinge Shim
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	2318189 Whirlpool Refrigerator Drip Pan
28	W10674648 Whirlpool Refrigerator Bracket
29	W10828686 Whirlpool Refrigerator Door Hinge
30	WP8533928 Whirlpool Refrigerator Screw
31	W10691145 Whirlpool Refrigerator Door Hinge
31A	W11700299 Whirlpool Door Hinge
32	WPW10188547 Whirlpool Refrigerator Front Grille
34	W11739145 Whirlpool Front Grille
35	2215612 Whirlpool Refrigerator Duct Cover
36	SWITCH, LIGHT
37	W11238395 Whirlpool Refrigerator Filter Cap
38	2005433 Whirlpool Refrigerator Spacer
39	W11721628 Whirlpool Screw Assembly
40	W11246413 Whirlpool Refrigerator Inlet Valve
41	W11225845 Whirlpool Refrigerator Inlet Valve
42	WP489069 Whirlpool Compactor Screw
43	WPL W11479397
44	WP489464 Whirlpool Refrigerator Screw
45	Support, Valve
46	W10619899 Whirlpool Refrigerator Water Tube
47	W10635851 Whirlpool Refrigerator Water Tube
48	WP2221240 Whirlpool Refrigerator Heater
49	WP1106508 Whirlpool Refrigerator Gasket
50	W10619291 Whirlpool Refrigerator Shield
51	W11456069 Whirlpool Refrigerator Clamp
52	W10482373 Whirlpool Refrigerator Jumper Wire
53	WPL W10577944
54A	W10782424 Whirlpool Refrigerator Ring
54	W10782423 Whirlpool Refrigerator Ring
