JF36NXFXDE05 07 – REFRIGERATOR DOOR PARTS
Written by
in

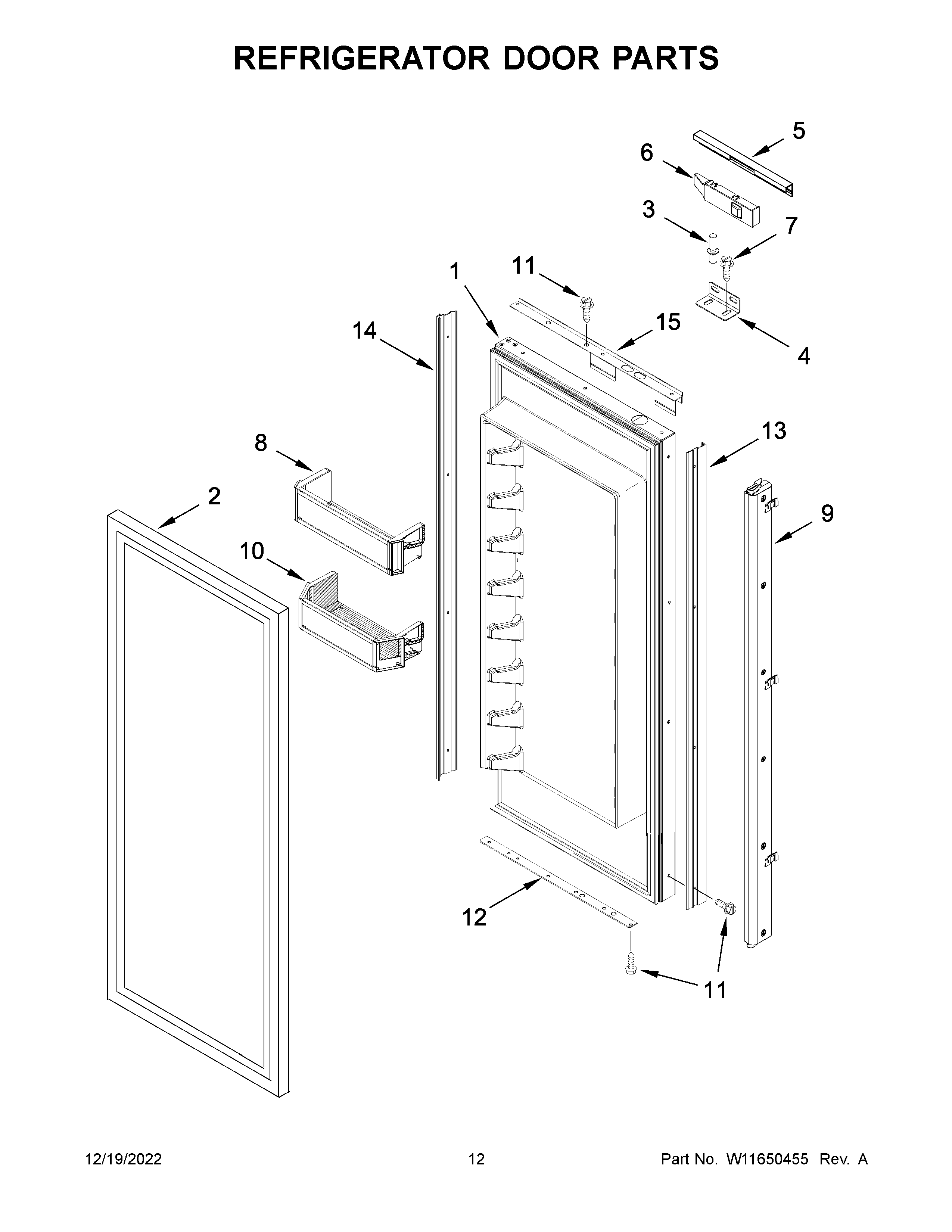

JF36NXFXDE05 07 – REFRIGERATOR DOOR PARTS
Products
Position
Product
NI
FOLLOWING PARTS NOT ILLUSTRATED
NI
MAT, DOOR BIN
1
W10782236 Whirlpool Refrigerator Door Assembly
1A
W10782253 Whirlpool Refrigerator Door Assembly
2
GASKET, DOOR (NOT AVAILABLE SEPARATELY-MUST ORDER REFRIGERATOR DOOR)
3
W10234194 Whirlpool Refrigerator Hinge Pin
4
W10606841 Whirlpool Refrigerator Bracket
5
COVER, DOOR (TOP) LEFT HAND (GREY)
5A
W10726561 Whirlpool Refrigerator Trim Cover
6A
W10606814 Whirlpool Refrigerator Cover
6
W10606813 Whirlpool Refrigerator Cover
7
WPW10142233 Whirlpool Refrigerator Screw
8
W10578270 Whirlpool Refrigerator Cantilever Bin
9
W11590870 Whirlpool Mullion Rail
10
BIN, DOOR (GALLON)
11
W10851443 Whirlpool Refrigerator Screw
12
TRIM, DOOR (BOTTOM) LEFT HAND (GREY)
12A
TRIM-DOOR
13
W10606806 Whirlpool Refrigerator Door Trim
13A
W10606802 Whirlpool Refrigerator Door Trim
14
W10606803 Whirlpool Refrigerator Door Trim
15
TRIM-DOOR
15A
TRIM-DOOR
←
