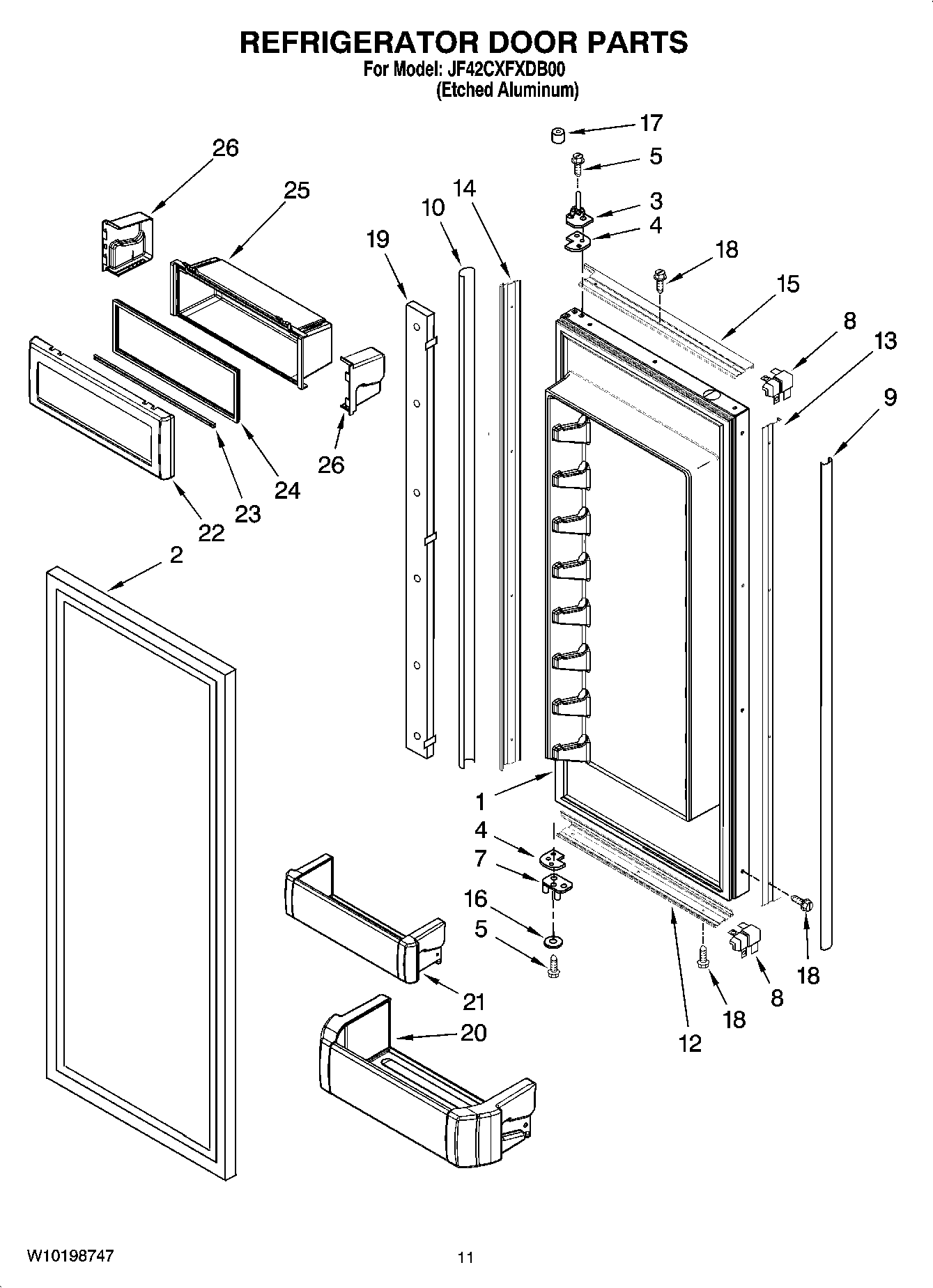

JF42CXFXDB00 07 – REFRIGERATOR DOOR PARTS

JF42CXFXDB00 07 – REFRIGERATOR DOOR PARTS

Written by

in

JF42CXFXDB00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 2307903
1	MAY 2307902
2	MAY 2268265
3	MAY 2320642
4	Spacer-Door, Top & Bottom
5	MAY 489282
7	MAY 2316752
7	MAY 2316751
8	Trim, Corner (Chrome)
9	Cover-Trim, Side (Handle Side)
10	Cover-Trim, Side (Hinge Side)
12	Trim-Door, Bottom
13	Trim-Door, Side (Handle Side)
14	Trim-Door, Side (Hinge Side)
15	Trim-Door, Top
16	WASHER
17	MAY 2316760
18	Screw, 8-15 x .500 (Stainless Steel)
19	MAY 2307938
20	MAY 2222769
21	MAY 2222772
22	MAY W10131132
23	MAY 2222795
24	MAY 2222981
25	MAY 2222921
26	End Cap (Right Side)
26	End Cap (Left Side)
