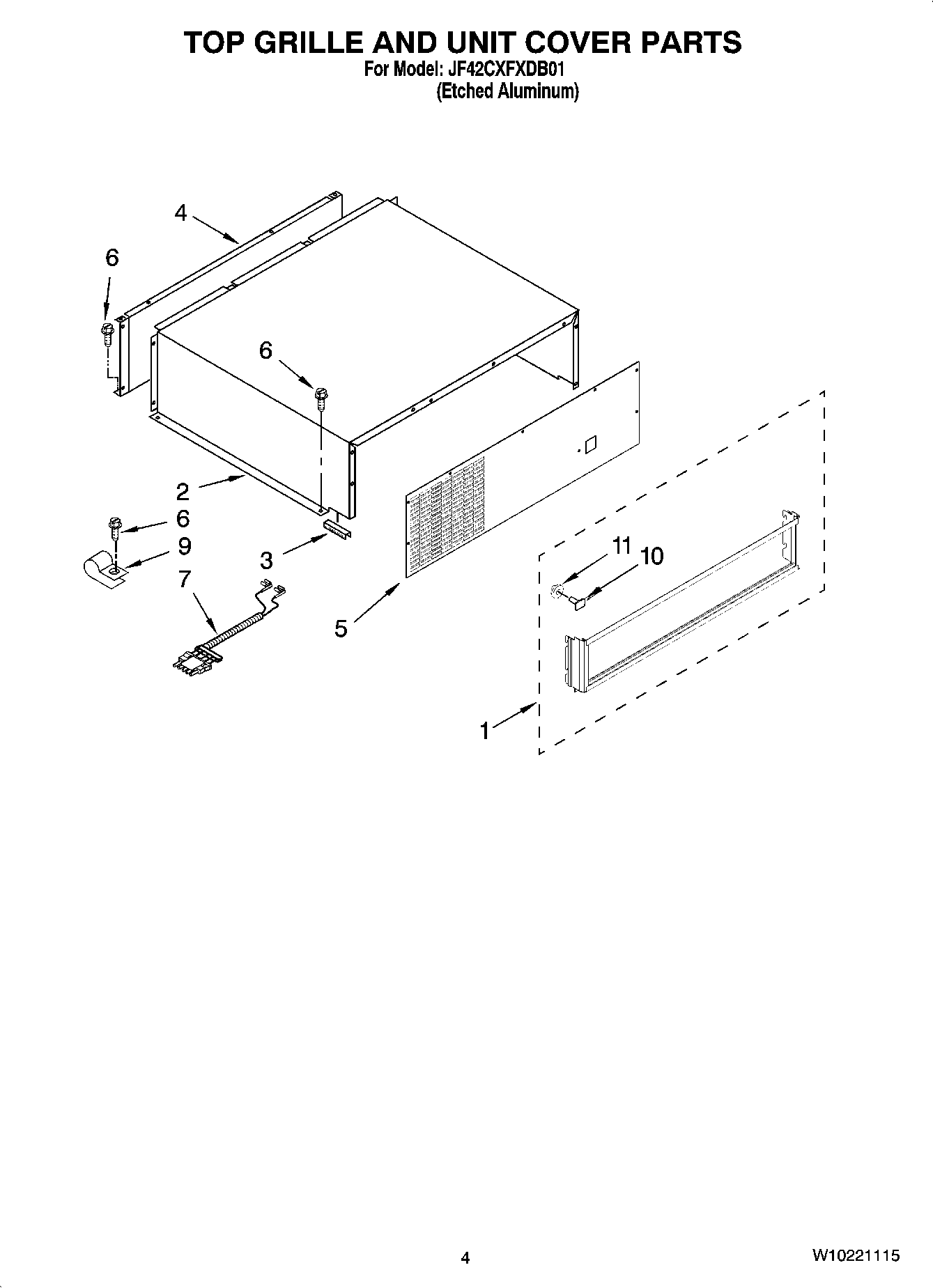

JF42CXFXDB01 03 – TOP GRILLE AND UNIT COVER PARTS
Written by
in
JF42CXFXDB01 03 – TOP GRILLE AND UNIT COVER PARTS
Products
| Position | Product |
|---|---|
| 1 | Top Grille Assembly |
| 2 | MAY W10161693 |
| 3 | GROMMET |
| 4 | Back Panel |
| 5 | MAY 2307682 |
| 6 | Screw |
| 7 | MAY 2187946 |
| 9 | MAY 489348 |
| 10 | Tee Bolt (4) |
| 11 | Nut (4) |
