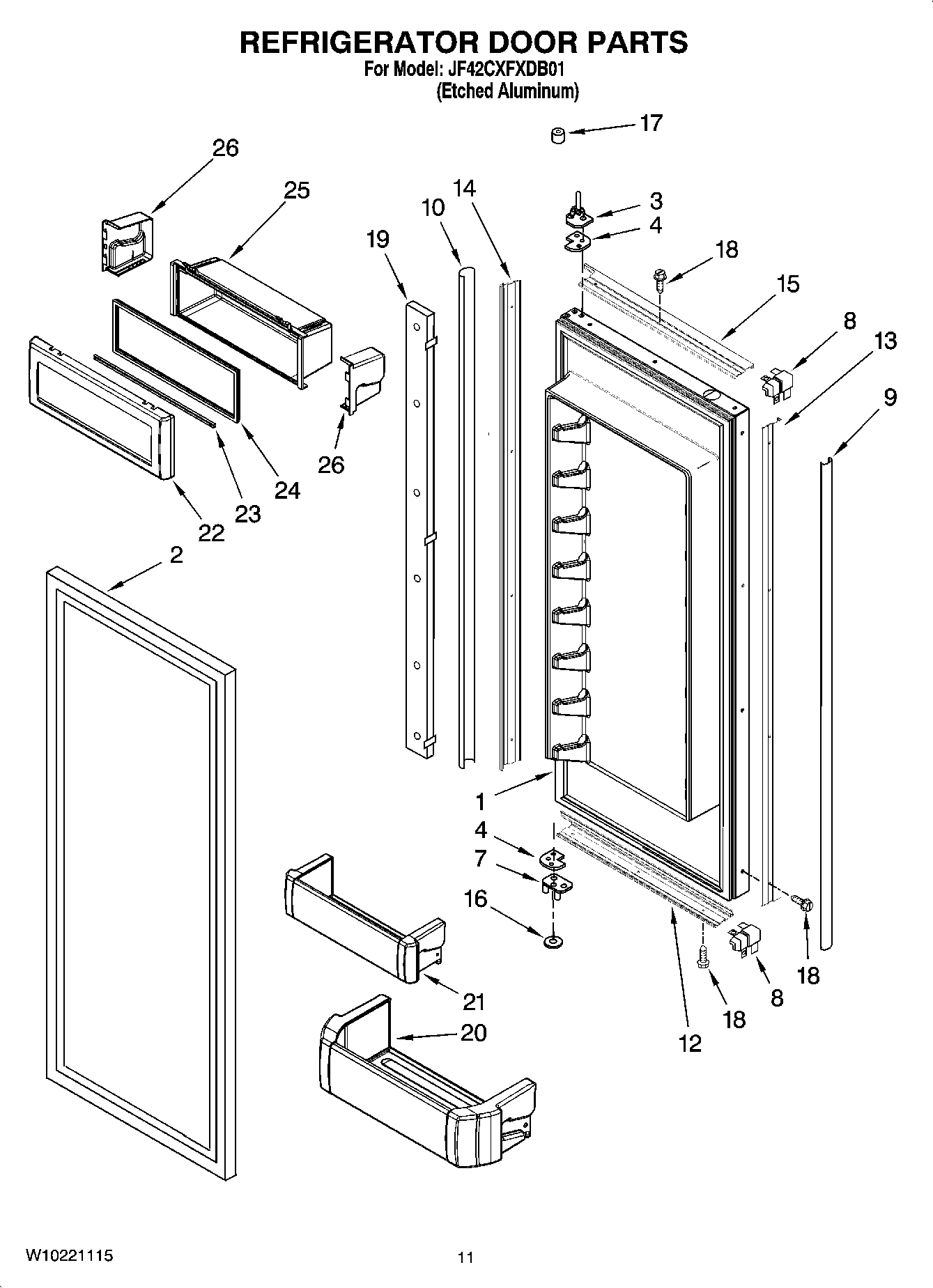

JF42CXFXDB01 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Includes Item 2) (Right)
1Door, Refrigerator (Includes Item 2) (Left)
2MAY 2268265
3MAY 2320642
4Spacer-Door, Top & Bottom
7MAY 2316751
7MAY 2316752
8Trim, Corner (Chrome)
9Cover-Trim, Side (Handle Side)
10Cover-Trim, Side (Hinge Side)
12Trim-Door, Bottom
13Trim-Door, Side (Handle Side)
14Trim-Door, Side (Hinge Side)
15Trim-Door, Top
16WASHER
17MAY 2316760
18Screw, 8-15 x .500 (Stainless Steel)
19MAY 2307938
20MAY 2222769
21MAY 2222772
22MAY W10131132
23MAY 2222795
24MAY 2222981
25MAY 2222921
26End Cap (Right Side)
26End Cap (Left Side)
