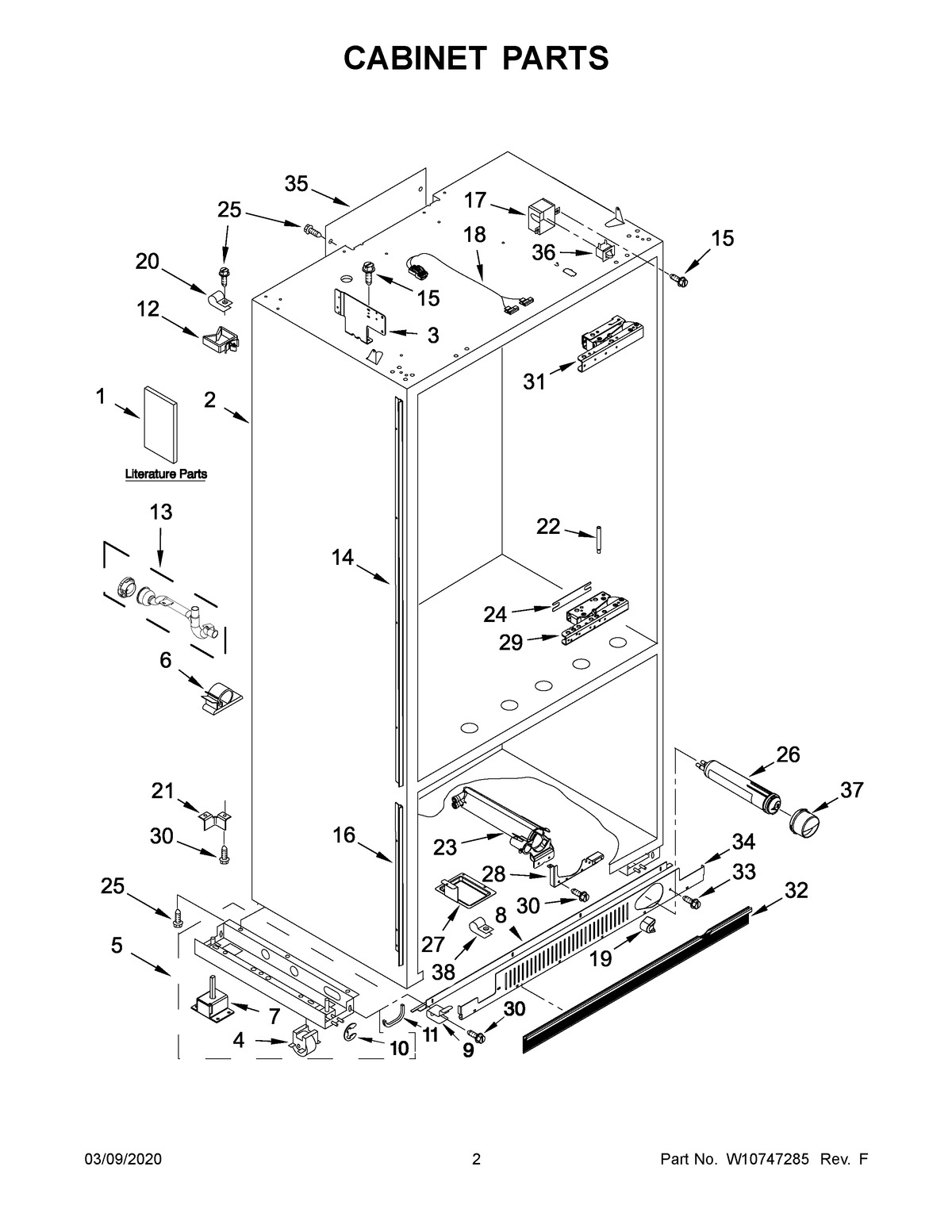

JF42NXFXDE00 02 – CABINET PARTS

Products

Position	Product
1D	MAY W10735232
1	MAY W10728796
1B	MAY W10600683
1C	MAY W10717764
1A	MAY W10605610
2	LINER (NOT A SERVICEABLE PART)
3A	BRACKET, GRILLE RIGHT HAND (GREY)
3	BRACKET, GRILLE LEFT HAND (GREY)
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6	CLIP
7	LEVELER ASSY
8	GRILLE TRIM (GREY)
9	Mounting Stud, Grille
10	Ring, Retainer
11	GROMMET, CROSSOVERTUBE
12	Wire Clip (5)
13	MAY W11291510
14A	MAY W10687582
14	MAY W10687588
15	Screw
16	MAY W10714137
16A	MAY W10687583
17	COVER, SWITCH (LH)
17A	COVER, SWITCH (RH)
18	MAY W10740131
19	Button, Filter (Black)
20	CLAMP, TUBE
21	Bracket, Support Base (Rear) (2)
22	Pin-Stop, Door
23	MAY W10121140
24	MAY W10291661
25	SCREW
26	MAY W10735401
27	Tray, Drip Filter
28	MAY W10674648
29	HINGE, BOTTOM (GREY)
30	Screw
31	HINGE (TOP) LEFT HAND (GREY)
31A	HINGE (TOP) RIGHT HAND (GREY)
32	Skirt-Grille, Bottom
33	MAY W10005050
34	GRILLE BASE, FRONT
35	Cover, Rear
36	SWITCH, LIGHT
37	CAP, WATER FILTER (BLACK)
38	MAY 2221070
