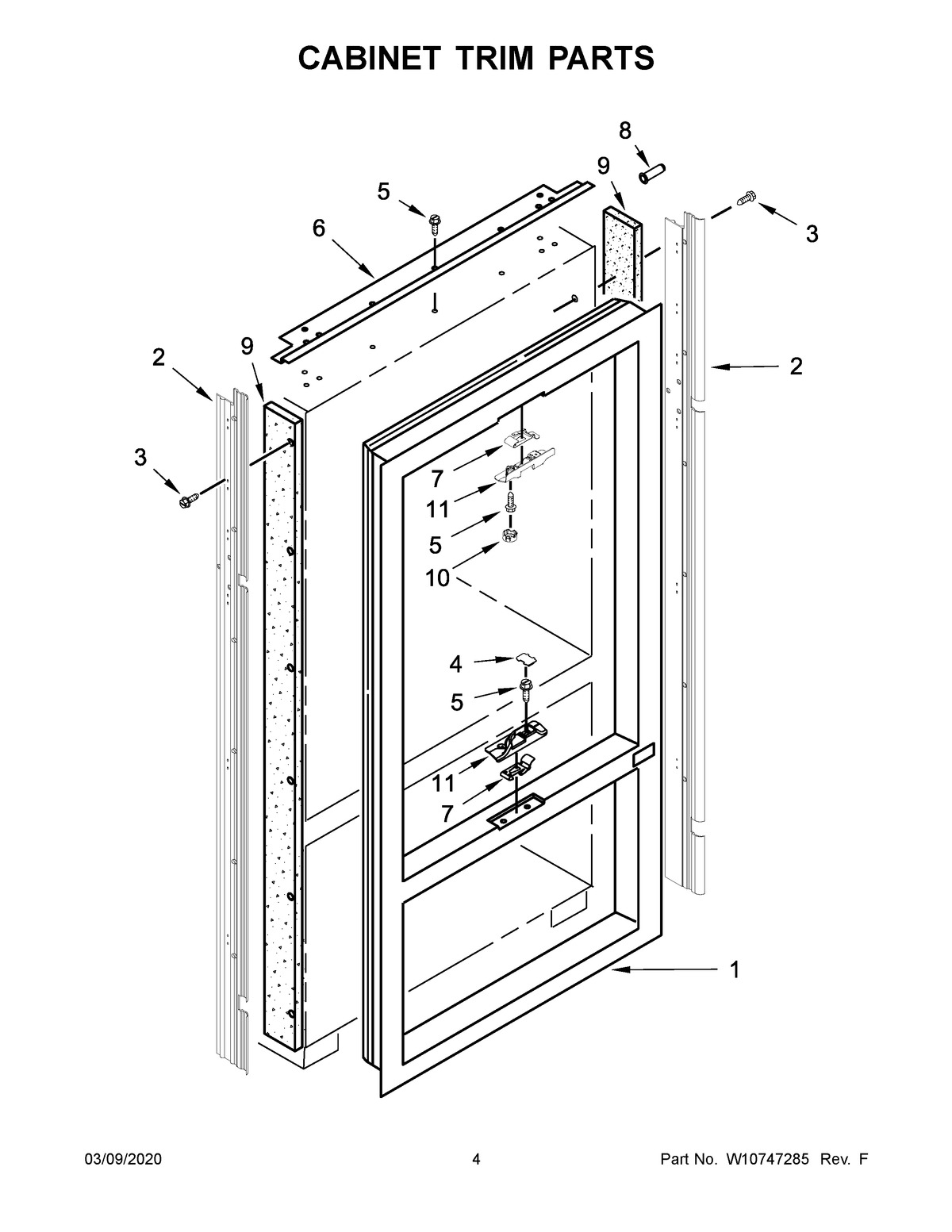

JF42NXFXDE00 03 – CABINET TRIM PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2A	MAY W10714135
2	MAY W10714136
3	MAY W10141645
4	COVER, SCREW (SQUARE) (GREY)
5	SCREW
6	MAY W10605547
7A	MAY 2309231
7	MAY 2309230
8	Nutsert (4)
9	SEAL-TRIM, SIDE
10	COVER, SCREW (ROUND) (GREY)
11	CONTACT, MULLION TOP (GREY)
11A	CONTACT, MULLION BOTTOM (GREY)
