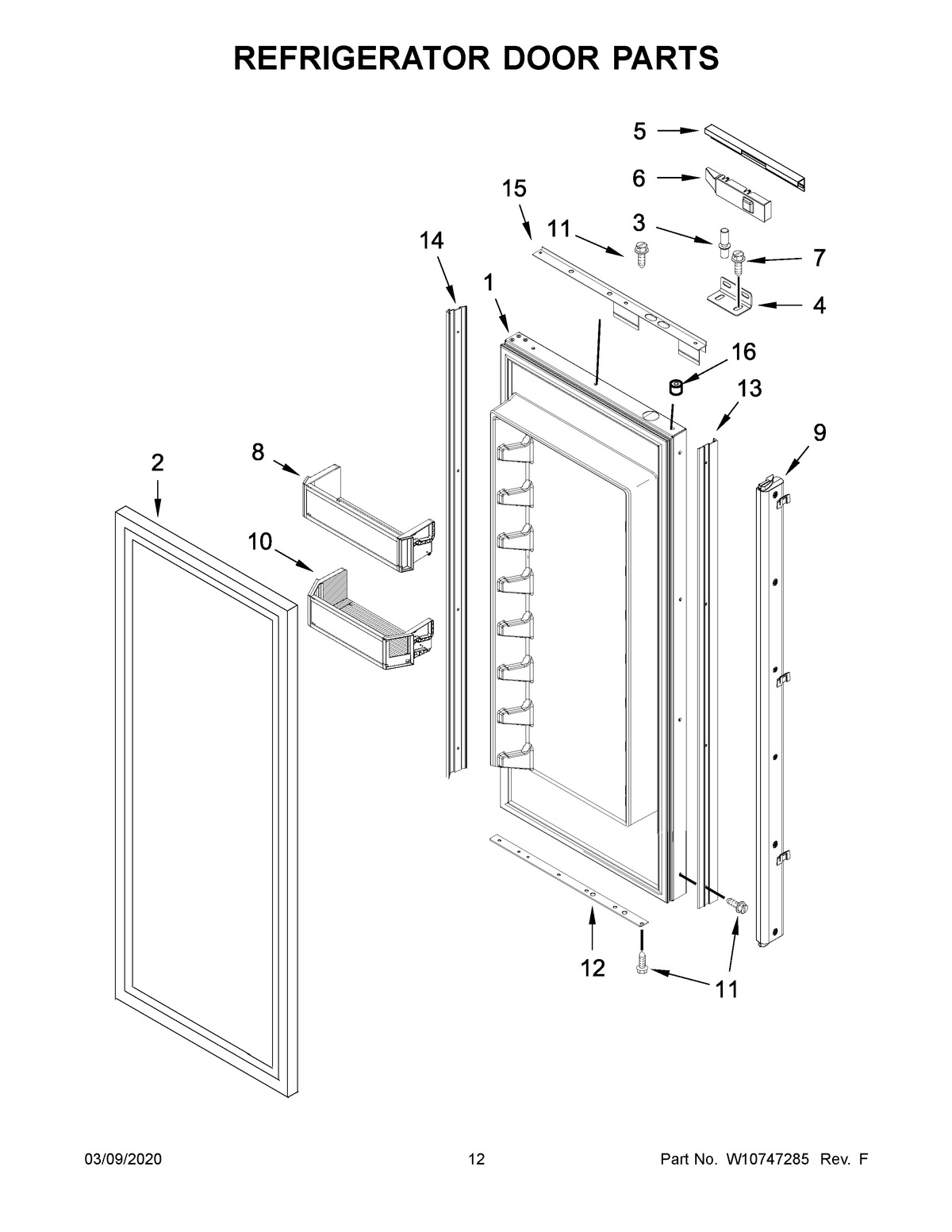

JF42NXFXDE00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
NIMAY W10746025
NILINER (NOT A SERVICEABLE PART)
NIMAY W10746020
1DOOR, REFRIGERATOR (INCLUDES ITEM 2) (LEFT HAND)
1AMAY W10605556
2MAY W10606752
3Pin-Door, Top
4BRACKET, PANEL MOUNTING (GREY)
5AMAY W10726562
5MAY W10606808
6AINSERT, DOOR ARM BOTTOM (GREY)
6INSERT, DOOR ARM TOP (GREY)
7SCREW 10-32 X 1/2
8MAY W10529452
9ASSEMBLY, MULLION (GREY)
10MAY W11350962
11Screw, 8-15 x .500 (Black)
12MAY W10606805
12AMAY W10606801
13ATRIM, DOOR (HANDLE SIDE) RIGHT HAND (GREY)
13TRIM, DOOR (HANDLE SIDE) LEFT HAND (GREY)
14TRIM, DOOR (HINGE SIDE) (GREY)
15MAY W10651648
15AMAY W10606800
16Spacer, Door-Skin (Top)
