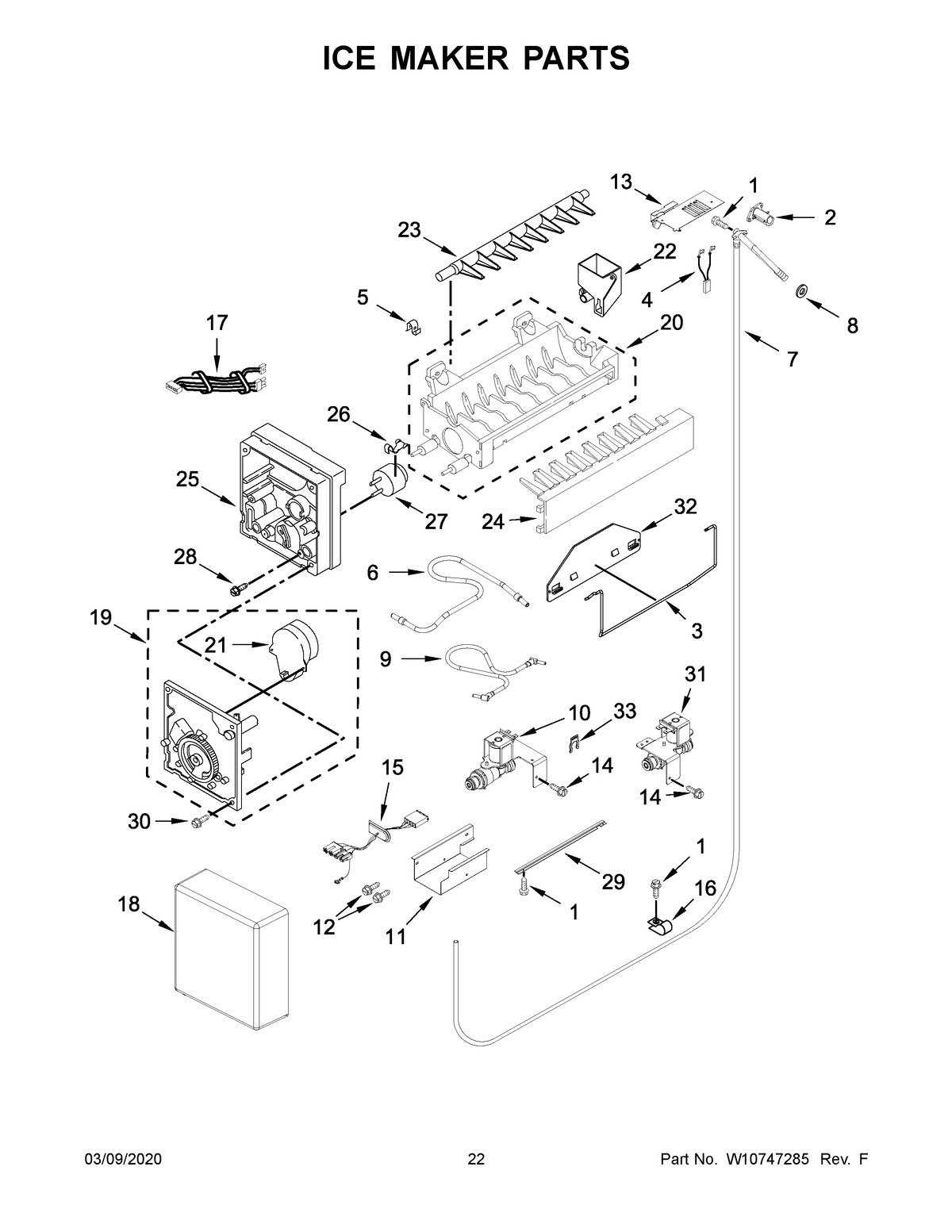

JF42NXFXDE00 12 – ICE MAKER PARTS

Products

Position	Product
NI	TEMPLATE, DOORS (WOOD PANEL)
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	MAY W10613135
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10744761
1	SCREW
2	MAY 2221240
3	ARM, SHUT OFF
4	WIRE ASSEMBLY, FILL TUBE HEATER
5	Clip
6	MAY W10619899
7	MAY 2317847
8	Seal
9	MAY W10635851
10	MAY W10574769
11	MAY W10619291
12	MAY W10001250
13	MAY 2221231
14	MAY 487871
15	MAY W10565837
16	Clip, Tube
17	WIRE ASSEMBLY, ICE MAKER
18	COVER
19	Module Assembly (Includes Items 23 and 24)
20	ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
22	MAY W10392442
23	MAY 627843
24	MAY W10699925
25	MAY W11236451
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	Screw (2)
29	MAY 2320559
30	MAY 489276
31	MAY W10578757
32	EXTENSION, SHUT OFF ARM
33	LOCKING RING (5/16)
100	MAY W10645968
