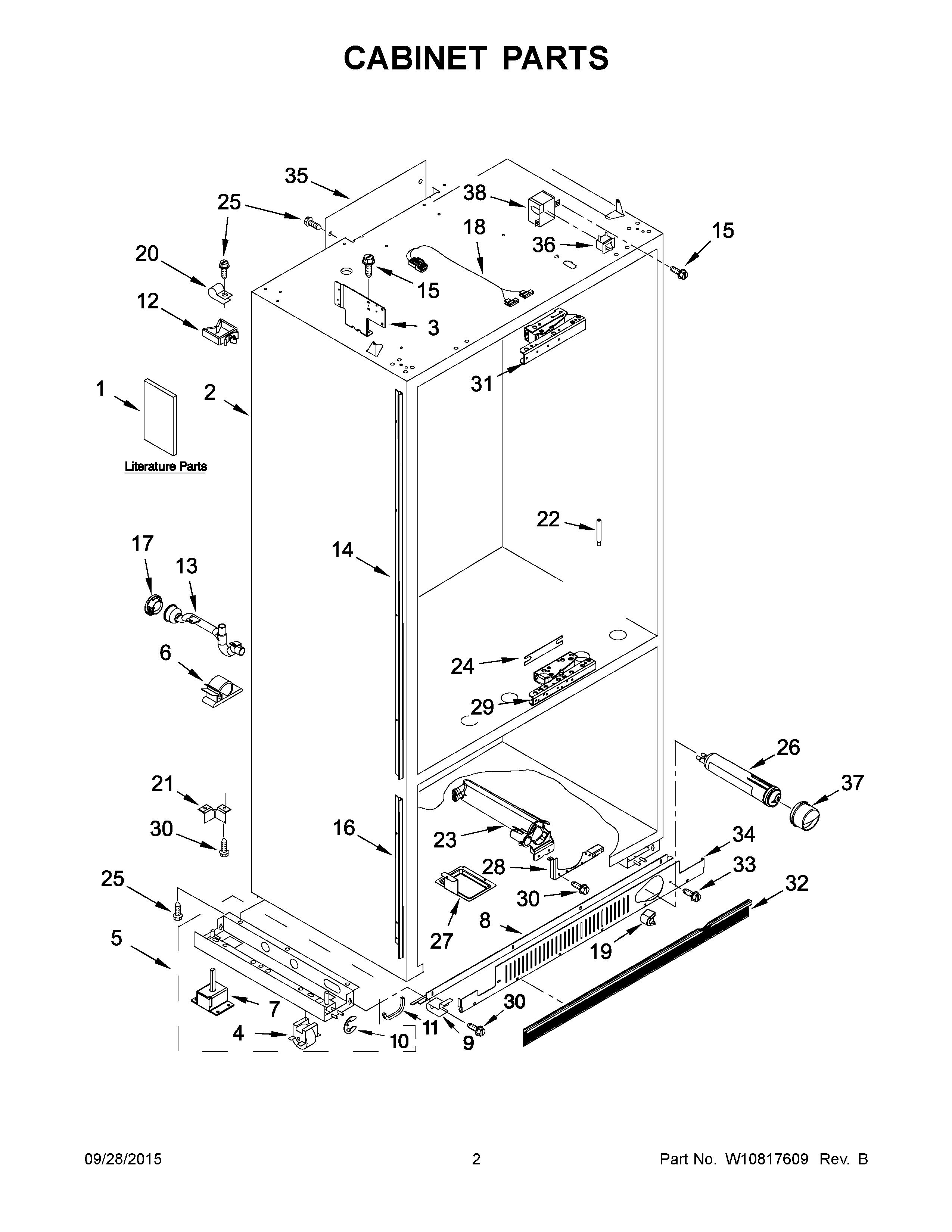

JF42NXFXDE01 02 – CABINET PARTS

Products

Position	Product
1D	MAY W10735232
1A	MAY W10605610
1	MAY W10728796
1B	MAY W10600683
1C	MAY W10717764
2	LINER (NOT A SERVICEABLE PART)
3	MAY W10714143
3A	MAY W10714146
4	MAY W10138054
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	CLIP
7	LEVELER ASSY
8	GRILLE TRIM (GREY)
9	Mounting Stud, Grille
10	Ring, Retainer
11	GROMMET, CROSSOVERTUBE
12	Wire Clip (5)
13	MAY W10702348
14A	MAY W10687582
14	MAY W10687588
15	Screw
16	MAY W10714137
16A	MAY W10687583
17	MAY W10368332
18	MAY W10740131
19	Button, Filter (Black)
20	MAY W10331955
21	Bracket, Support Base (Rear) (2)
22	Pin-Stop, Door
23	MAY W10121140
24	MAY W10291661
25	SCREW
26	Filter, Water
27	Tray, Drip Filter
28	MAY W10674648
29	HINGE, BOTTOM (GREY)
30	Screw
31A	HINGE (TOP) RIGHT HAND (GREY)
31	HINGE (TOP) LEFT HAND (GREY)
32	Skirt-Grille, Bottom
33	MAY W10005050
34	GRILLE BASE, FRONT
35	MAY W10426957
36	SWITCH, LIGHT
37	CAP, WATER FILTER (BLACK)
38A	COVER, SWITCH (RH)
38	COVER, SWITCH (LH)
