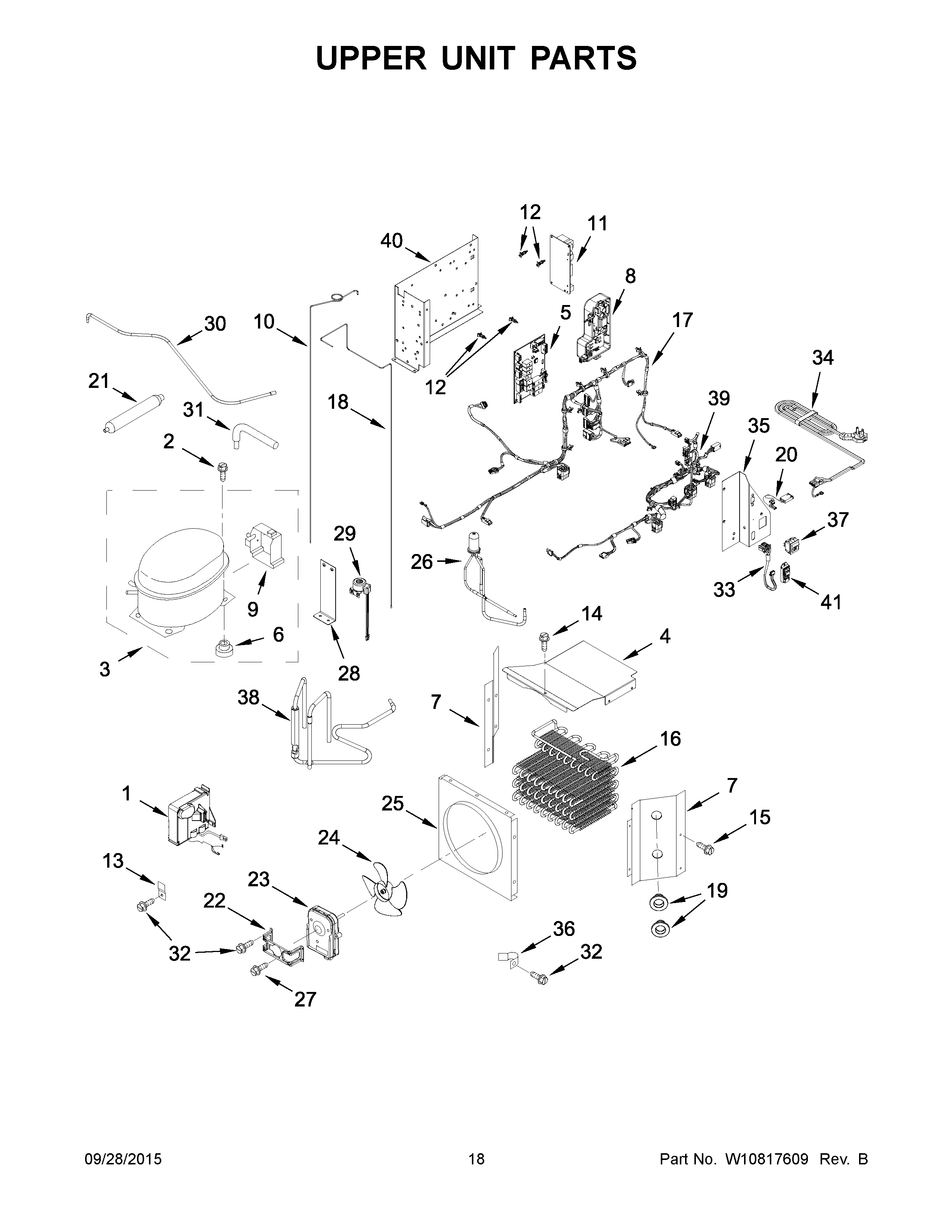

JF42NXFXDE01 10 – UPPER UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
1	MAY W10721030
2	MAY 489473
3	MAY W10183959
4	TOP COVER, CONDENSER
5	MAY W10739408
6	MAY 2183042
7A	MAY W10525179
7	MAY W10525177
8	MAY W10640411
9	MAY 2215676
10	MAY W10720079
11	SUPPLY, POWER
12	Spacer (5)
13	Bracket, Inverter Box
14	Screw
15	MAY 1157158
16	MAY W10591457
17	MAY W10565844
18	MAY W10720080
19	MAY W10587113
20	ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER CORD)
21	MAY W10704381
22	BRACKET, FAN MOTOR (CONDENSER FAN)
23	MAY 2188875
24	MAY W10139483
25	MAY W10415670
26	MAY W10545670
27	MAY W10146359
28	MAY W10544999
29	COIL, 3 WAY VALVE
30	MAY W10555310
31	MAY W10528578
32	SCREW
33	ASSEMBLY, HUMIDITY SENSOR WIRE
34	Service Cord
35	MAY W10625531
36	MAY 549193
37	Switch, Power Disconnect
38	MAY W10545389
39	MAY W10565841
40	HOUSING, CONTROL BOARD MOUNTING
41	SENSOR, HUMIDITY
