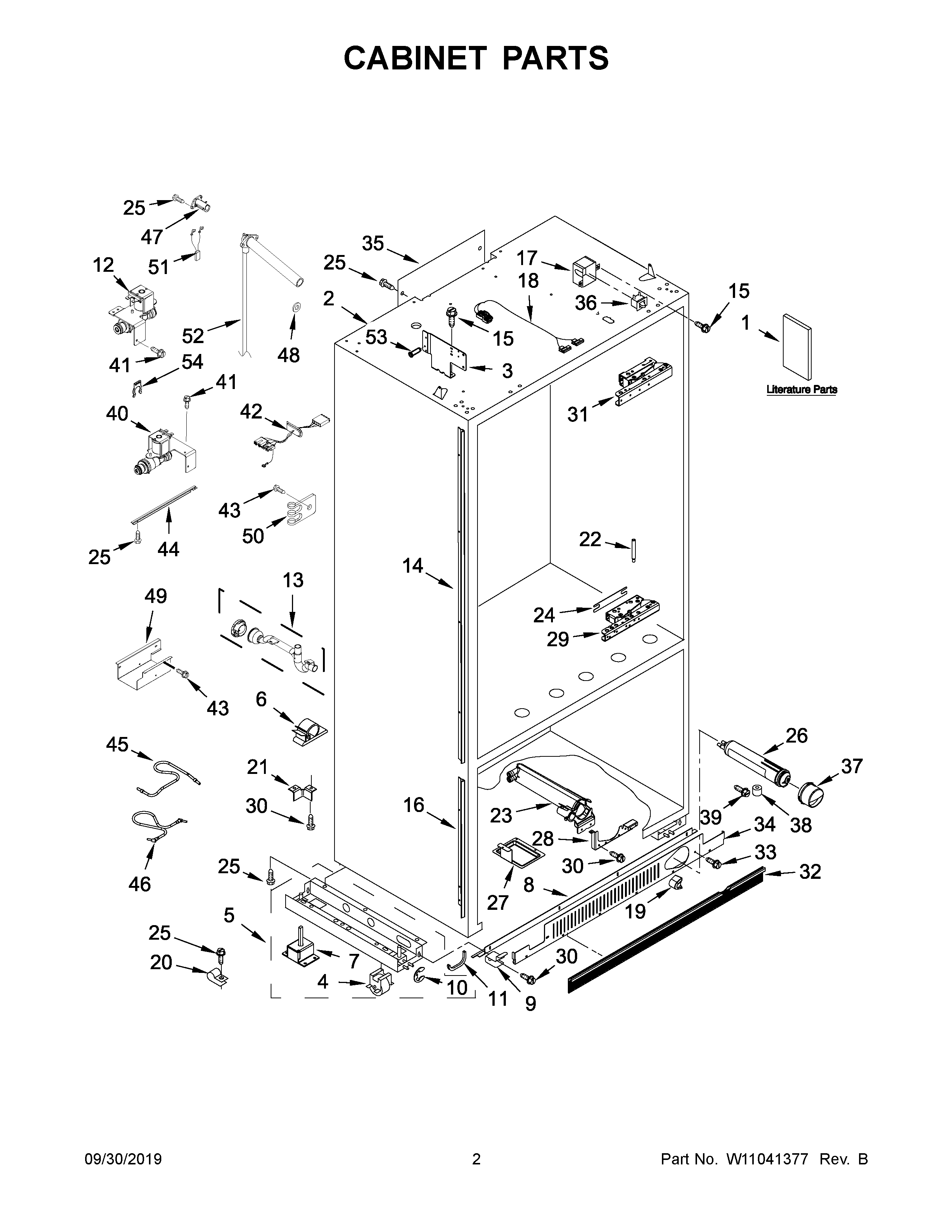

JF42NXFXDE02 02 – CABINET PARTS

Products

Position	Product
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	TEMPLATE, DOORS (WOOD PANEL)
NI	MAY W10744761
NI	MAY W10613135
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10728796
1E	MAY W10735232
1C	MAY W10896708
1B	MAY W10896706
1D	MAY W10906504
1A	MAY W11113370
3A	MAY W10756004
3	MAY W10756003
4	MAY W10138054
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	CLIP
7	LEVELER ASSY
8	GRILLE TRIM (GREY)
9	Mounting Stud, Grille
10	Ring, Retainer
11	GROMMET, CROSSOVERTUBE
12	MAY W10578757
13	MAY W10702350
14	MAY W10687588
14A	MAY W10687582
15	Screw
16A	MAY W10687583
16	MAY W10714137
17A	COVER, SWITCH (RH)
17	COVER, SWITCH (LH)
18	MAY W10740131
19	Button, Filter (Black)
20	CLAMP, TUBE
21	Bracket, Support Base (Rear) (2)
22	Pin-Stop, Door
23	MAY W10121140
24	MAY W10291661
25	SCREW
26	Filter, Water
27	Tray, Drip Filter
28	MAY W10674648
29	HINGE, BOTTOM (GREY)
30	Screw
31	HINGE (TOP) LEFT HAND (GREY)
31A	HINGE (TOP) RIGHT HAND (GREY)
32	Skirt-Grille, Bottom
33	MAY W10005050
34	GRILLE BASE, FRONT
35	Cover, Rear
36	SWITCH, LIGHT
37	CAP, WATER FILTER (BLACK)
38	Spacer, Door-Skin (Top)
39	MAY 9741232
40	MAY W10574769
41	Screw
42	MAY W10565837
43	MAY W10001250
44	MAY 2320559
45	MAY W10619899
46	MAY W10635851
47	MAY 2221240
48	Seal
49	MAY W10619291
50	Clip, Tube
51	WIRE ASSEMBLY, FILL TUBE HEATER
52	MAY 2317847
53	Nutsert (4)
54	LOCKING RING (5/16)
