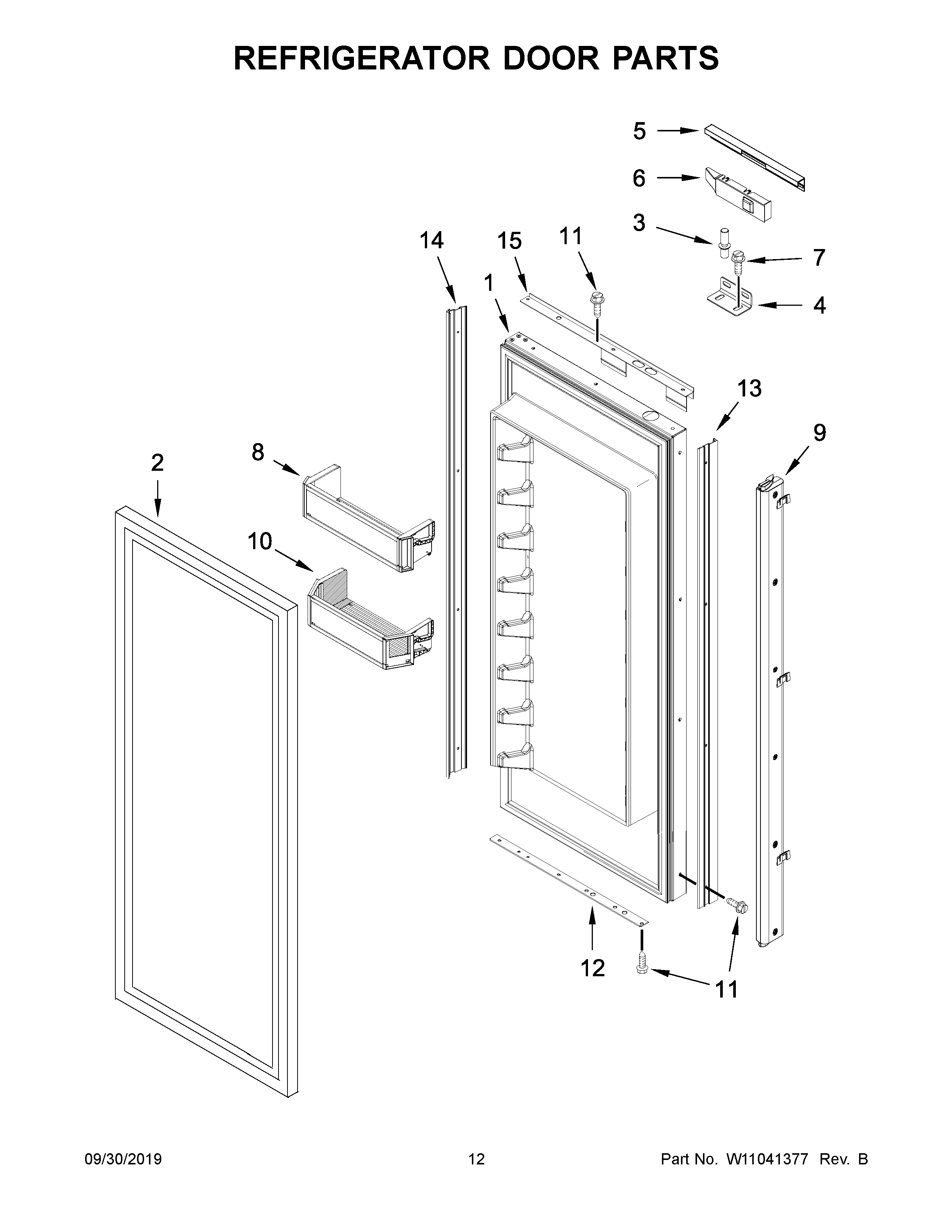

JF42NXFXDE02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
NI	MAY W10772221
NI	LINER (NOT A SERVICEABLE PART)
1A	MAY W10605556
1	MAY W10796467
2	MAY W10606752
3	Pin-Door, Top
4	BRACKET, PANEL MOUNTING (GREY)
5	MAY W10606808
5A	MAY W10726562
6	INSERT, DOOR ARM TOP (GREY)
6A	INSERT, DOOR ARM BOTTOM (GREY)
7	SCREW 10-32 X 1/2
8	MAY W10529452
9	MAY W10732109
10	MAY W10525435
11	Screw, 8-15 x .500 (Black)
12	MAY W10606805
12A	MAY W10606801
13	TRIM, DOOR (HANDLE SIDE) LEFT HAND (GREY)
13A	TRIM, DOOR (HANDLE SIDE) RIGHT HAND (GREY)
14	TRIM, DOOR (HINGE SIDE) (GREY)
15	MAY W10651648
15A	MAY W10606800
