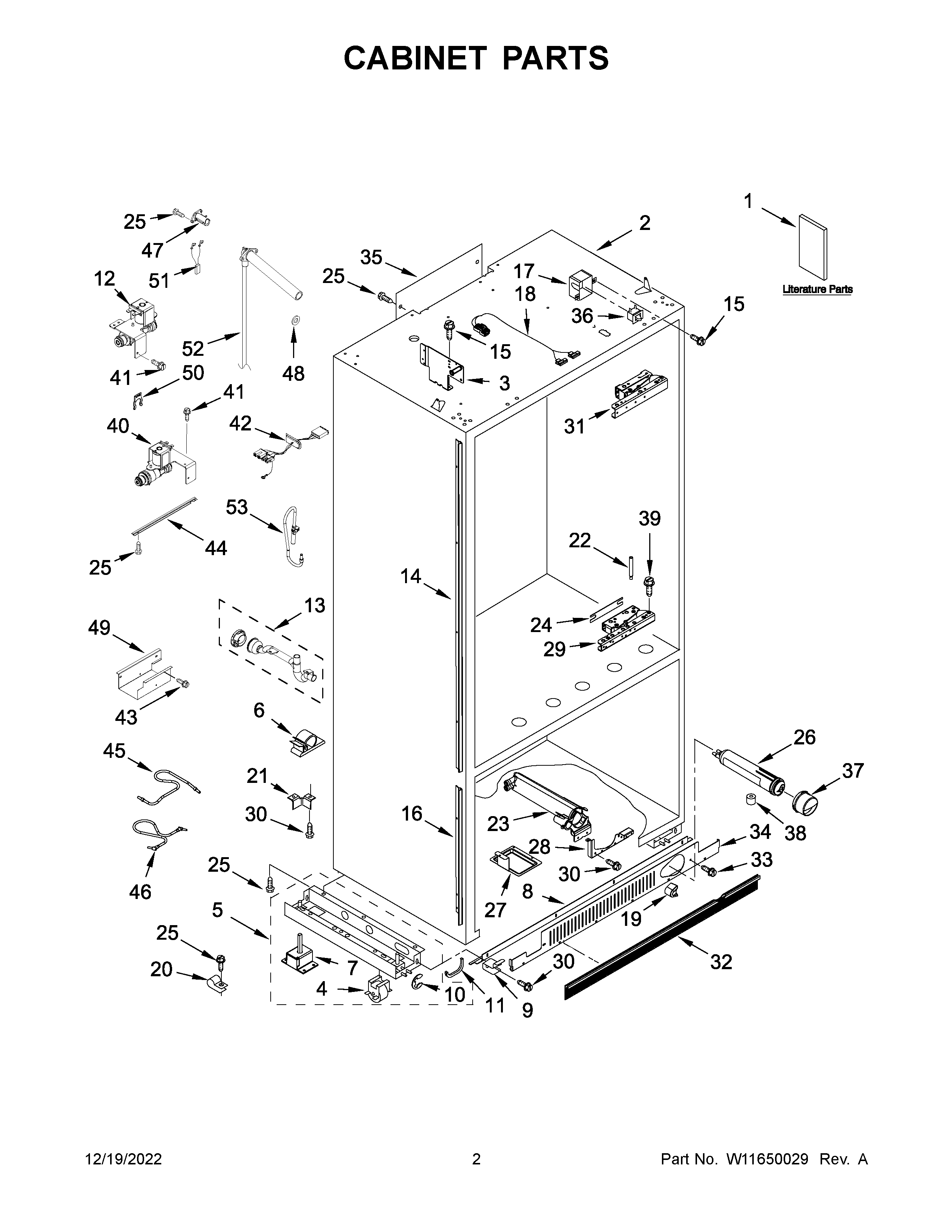

JF42NXFXDE05 02 – CABINET PARTS

JF42NXFXDE05 02 – CABINET PARTS

Written by

in

JF42NXFXDE05 02 – CABINET PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11175806 Whirlpool Refrigerator Installation Kit
NI	W10744761 Whirlpool Refrigerator Installation Kit
NI	W10234156 Whirlpool Refrigerator Installation Kit
NI	W10488118 Whirlpool Refrigerator Installation Kit
1B	TECH SHEET
1C	WIRING DIAGRAM
1D	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1A	ENERGY GUIDE
3A	W11042559 Whirlpool Refrigerator Bracket
3	W11042558 Whirlpool Refrigerator Bracket
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5A	W10860448 Whirlpool Refrigerator Support
6	CLIP
7	2005032 Whirlpool Refrigerator Leveler
8	W10606812 Whirlpool Refrigerator Grill Trim
9	W10839844 Whirlpool Refrigerator Bracket
10	2006841 Whirlpool Ring
11	2307584 Whirlpool Refrigerator Grommet
12	W11246413 Whirlpool Refrigerator Inlet Valve
13	W11291510 Whirlpool Refrigerator Valve
14A	W10687582 Whirlpool Refrigerator Cabinet Trim
14	W10687588 Whirlpool Refrigerator Cabinet Trim
15	WP965173 Whirlpool Dishwasher Screw
16	W10714137 Whirlpool Refrigerator Cabinet Trim
16A	W10687583 Whirlpool Refrigerator Cabinet Trim
17	COVER, SWITCH (LEFT & RIGHT HAND)
18	W10740131 Whirlpool Jumper Wire
19	WP2260503B Whirlpool Refrigerator Button
20	W11456069 Whirlpool Refrigerator Clamp
21	2006617 Whirlpool Refrigerator Bracket
22	W10234202 Whirlpool Refrigerator Hinge Pin
23	WPW10121140 Whirlpool Refrigerator Housing
24	W10291661 Whirlpool Refrigerator Hinge Shim
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	2318189 Whirlpool Refrigerator Drip Pan
28	W10674648 Whirlpool Refrigerator Bracket
29	W10828686 Whirlpool Refrigerator Door Hinge
30	WP8533928 Whirlpool Refrigerator Screw
31A	W11700299 Whirlpool Door Hinge
31	W10691145 Whirlpool Refrigerator Door Hinge
32	WPW10188549 Whirlpool Refrigerator Front Grille
34	W10861748 Whirlpool Refrigerator Front Grille
35	2215612 Whirlpool Refrigerator Duct Cover
36	SWITCH, LIGHT
37	W11238395 Whirlpool Refrigerator Filter Cap
38	2005433 Whirlpool Refrigerator Spacer
39	W11721628 Whirlpool Screw Assembly
40	W11225845 Whirlpool Refrigerator Inlet Valve
41	WP489069 Whirlpool Compactor Screw
42	WPL W11479397
43	WP489464 Whirlpool Refrigerator Screw
44	Support, Valve
45	W10619899 Whirlpool Refrigerator Water Tube
46	W10635851 Whirlpool Refrigerator Water Tube
47	WP2221240 Whirlpool Refrigerator Heater
48	WP1106508 Whirlpool Refrigerator Gasket
49	W10619291 Whirlpool Refrigerator Shield
50	W10782424 Whirlpool Refrigerator Ring
50A	W10782423 Whirlpool Refrigerator Ring
51	W10482373 Whirlpool Refrigerator Jumper Wire
52	2317847 Whirlpool Refrigerator Water Tube
53	WPL W10577944
