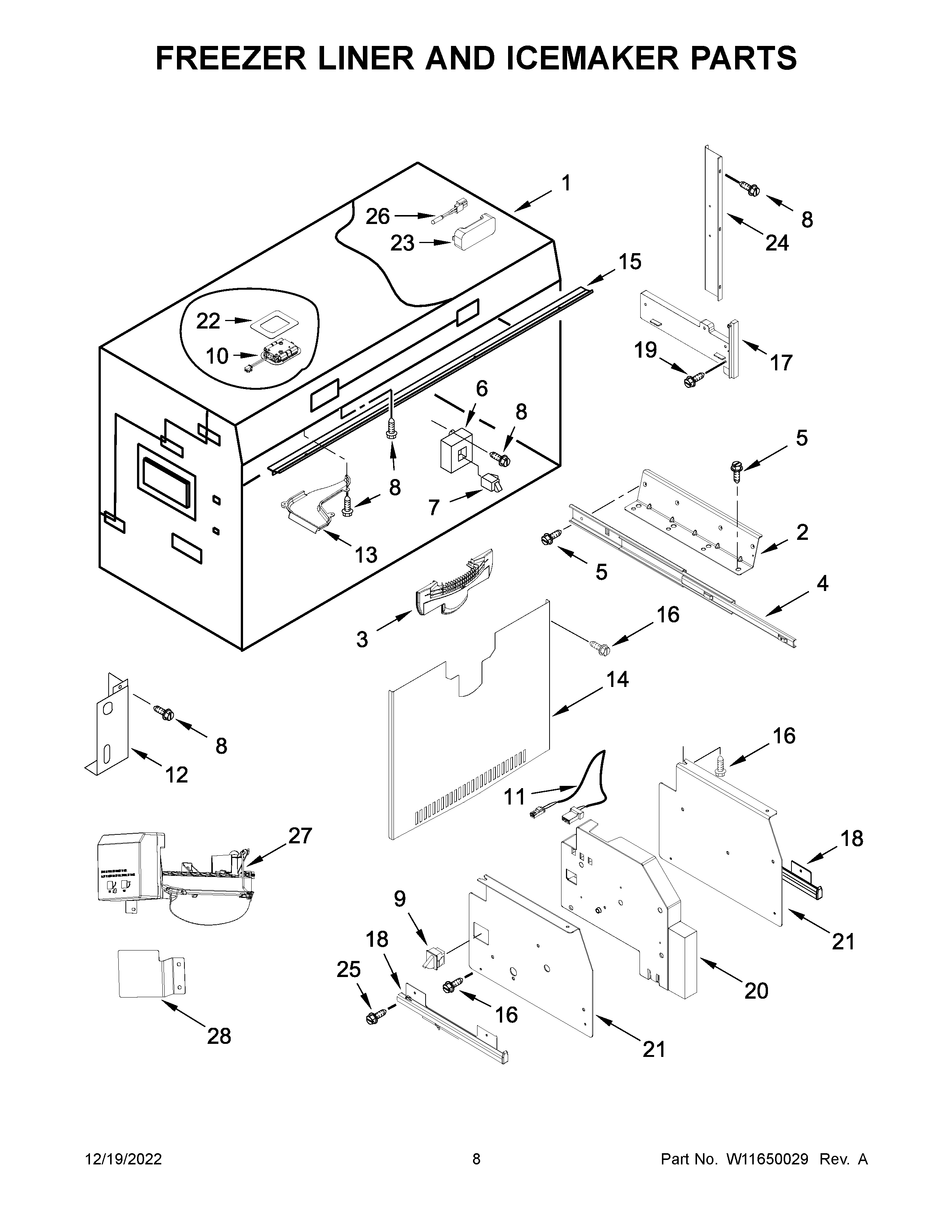

JF42NXFXDE05 05 – FREEZER LINER AND ICEMAKER PARTS

JF42NXFXDE05 05 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

JF42NXFXDE05 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10744327 Whirlpool Refrigerator Support
3W10541687 Whirlpool Grille Assembly
4W11650036 Whirlpool Slide
5Screw
6W10606833 Whirlpool Cover
7W11670534 Whirlpool Refrigerator Switch
8W11624204 Whirlpool Screw
9W11289496 Whirlpool Refrigerator Switch
10W11484836 Whirlpool Refrigerator Module
11W10568445 Whirlpool Refrigerator Jumper Wire
12COVER, ICEMAKER WIRING
13DUCT, AIR FLOW (ICEMAKER)
14COVER, EVAPORATOR (CHARCOAL SPARKLE)
15W10710401 Whirlpool Refrigerator Deflector
16WPW10001160 Whirlpool Refrigerator Screw
17AW10664383 Whirlpool Refrigerator Track
17W10664385 Whirlpool Refrigerator Track
18A2306116 Whirlpool Refrigerator Slide
182306117 Whirlpool Refrigerator Slide
20W10647421 Whirlpool Refrigerator Divider
21W10600630 Whirlpool Refrigerator Support
21ASUPPORT, SLIDE (RIGHT HAND)
22W10672548 Whirlpool Refrigerator Shim
23W10609678 Whirlpool Refrigerator Cover
24ASSEMBLY, EVAPORATOR COVER RAIL
25WP488163 Whirlpool Refrigerator Screw
26THERMISTOR
27ICEMAKER
28EXTENSION, ICEMAKER WIRING COVER
