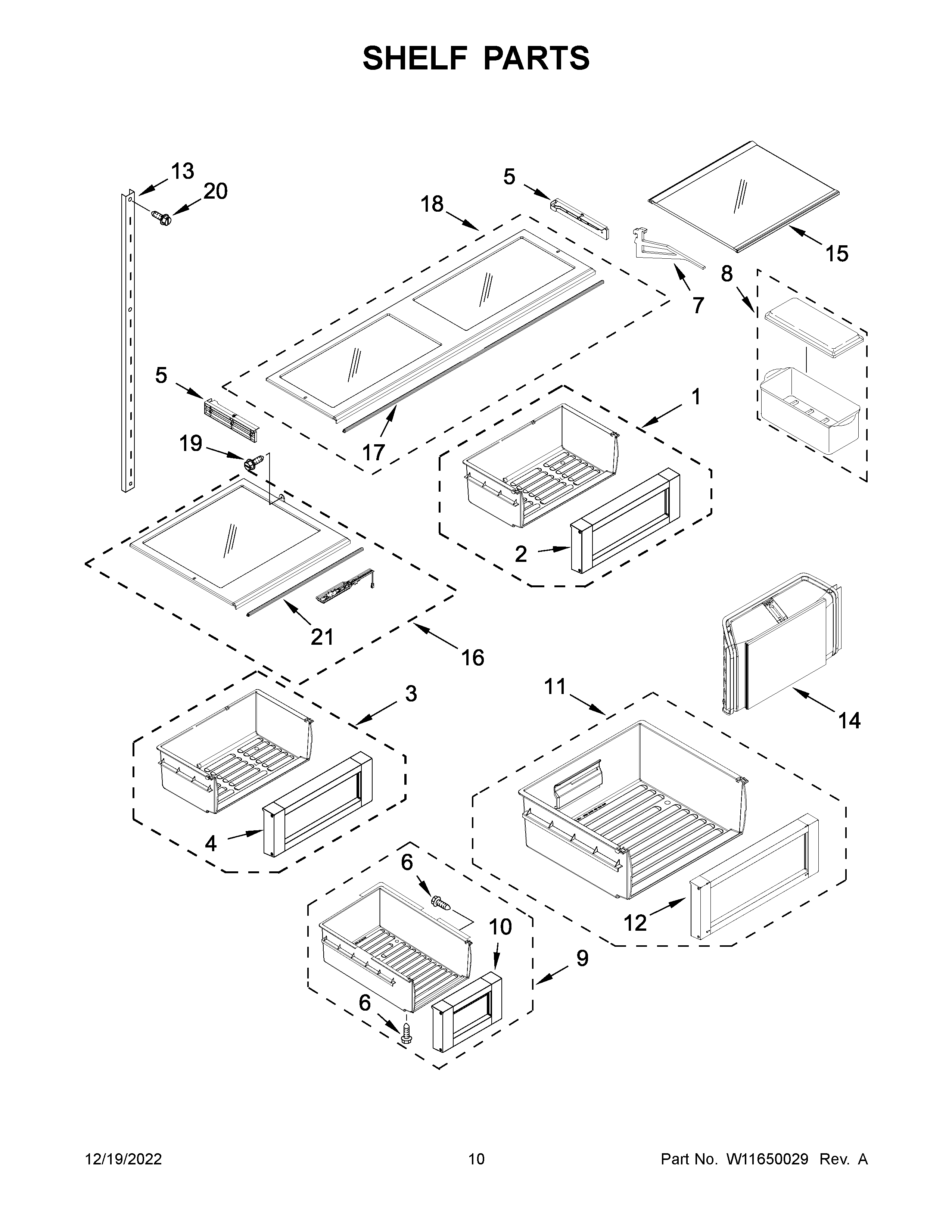

JF42NXFXDE05 06 – SHELF PARTS

Products

Position	Product
1	W10529501 Whirlpool Crisper Pan
2	ASSEMBLY, CRISPER PAN FRONT
3	W10529506 Whirlpool Refrigerator Crisper Pan
4	ASSEMBLY, DELI PAN FRONT
5	W10569842 Whirlpool Refrigerator Support Assembly
5A	SUPPORT, CRISPER COVER RIGHT HAND (GREY)
6	WP488787 Whirlpool Refrigerator Screw
7	W11690161 Whirlpool Support
8	Egg Bin Assembly
9	W10626679 Whirlpool Refrigerator Ice Pan
10	W10626676 Whirlpool Refrigerator Front Panel
11	ASSEMBLY, FREEZER PAN
12	ASSEMBLY, FRONT PAN
13B	LADDER, SHELF CENTER (BLACK)
13A	LADDER, SHELF RIGHT HAND (BLACK)
13	LADDER, SHELF LEFT HAND (BLACK)
14	W10826105 Whirlpool Refrigerator Pro Service
15	WPW10198701 Whirlpool Refrigerator Glass Shelf
16	COVER, DELI BIN (LEFT HAND)
16A	COVER, DELI BIN (RIGHT HAND)
17	GASKET COVER, FRONT (CRISPER) (GREY)
18	WPW10569917 Whirlpool Glass Shelf
19	WP8533928 Whirlpool Refrigerator Screw
20	SCREW
21	GASKET COVER, FRONT (DELI) (GREY)
