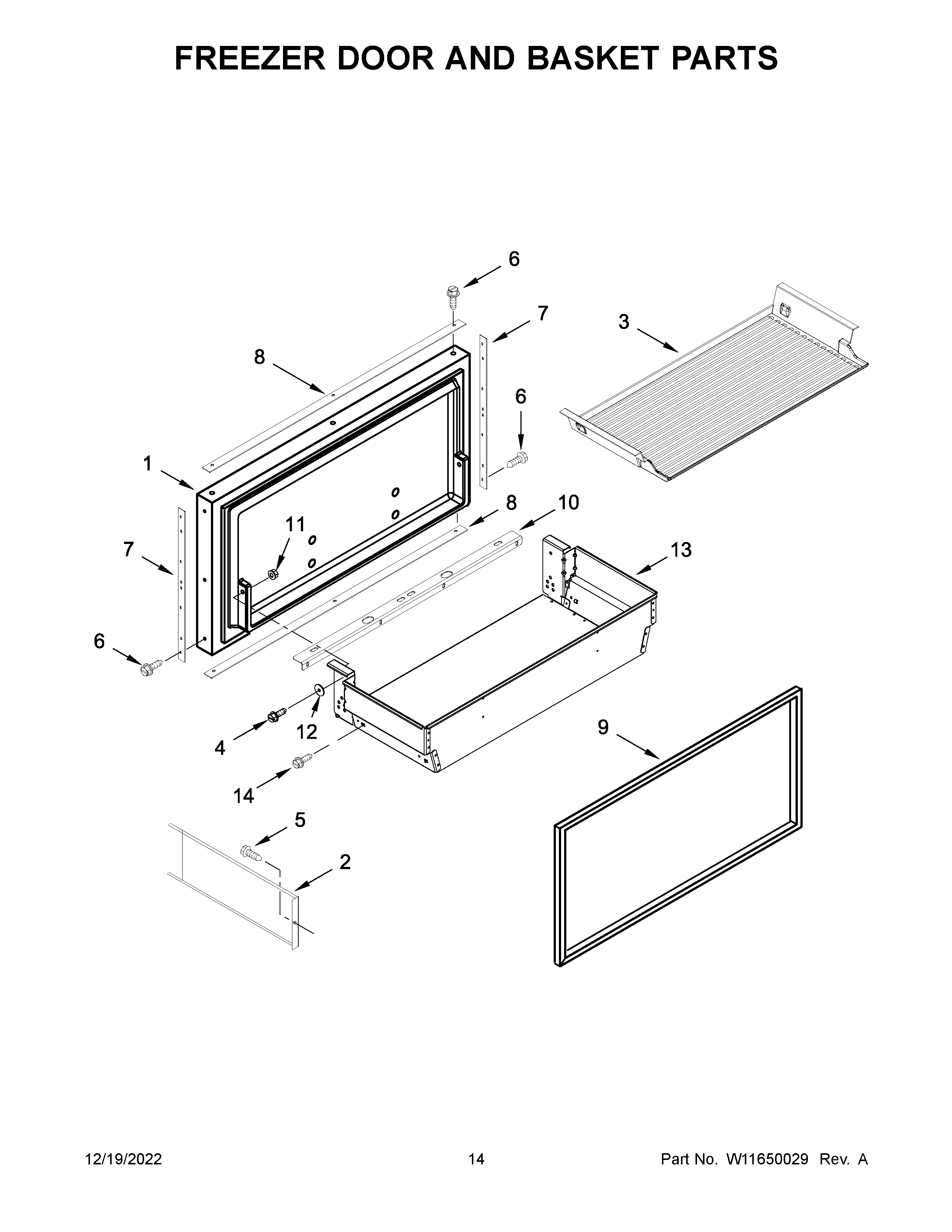

JF42NXFXDE05 08 – FREEZER DOOR AND BASKET PARTS

JF42NXFXDE05 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

JF42NXFXDE05 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782358 Whirlpool Refrigerator Door Assembly
2DIVIDER, BASKET (GREY)
3W10665413 Whirlpool Refrigerator Mat
4W10761334 Whirlpool Screw Assembly
5W10678208 Whirlpool Screw
6W10851443 Whirlpool Refrigerator Screw
7W10606810 Whirlpool Refrigerator Door Trim
8W10606809 Whirlpool Refrigerator Door Trim
9W10803131 Whirlpool Refrigerator FIP Gasket
10W11256496 Whirlpool Refrigerator Bracket
11NUT
12WASHER
13ASSEMBLY, FREEZER BASKET (GREY)
14W10109030 Whirlpool Refrigerator Screw
