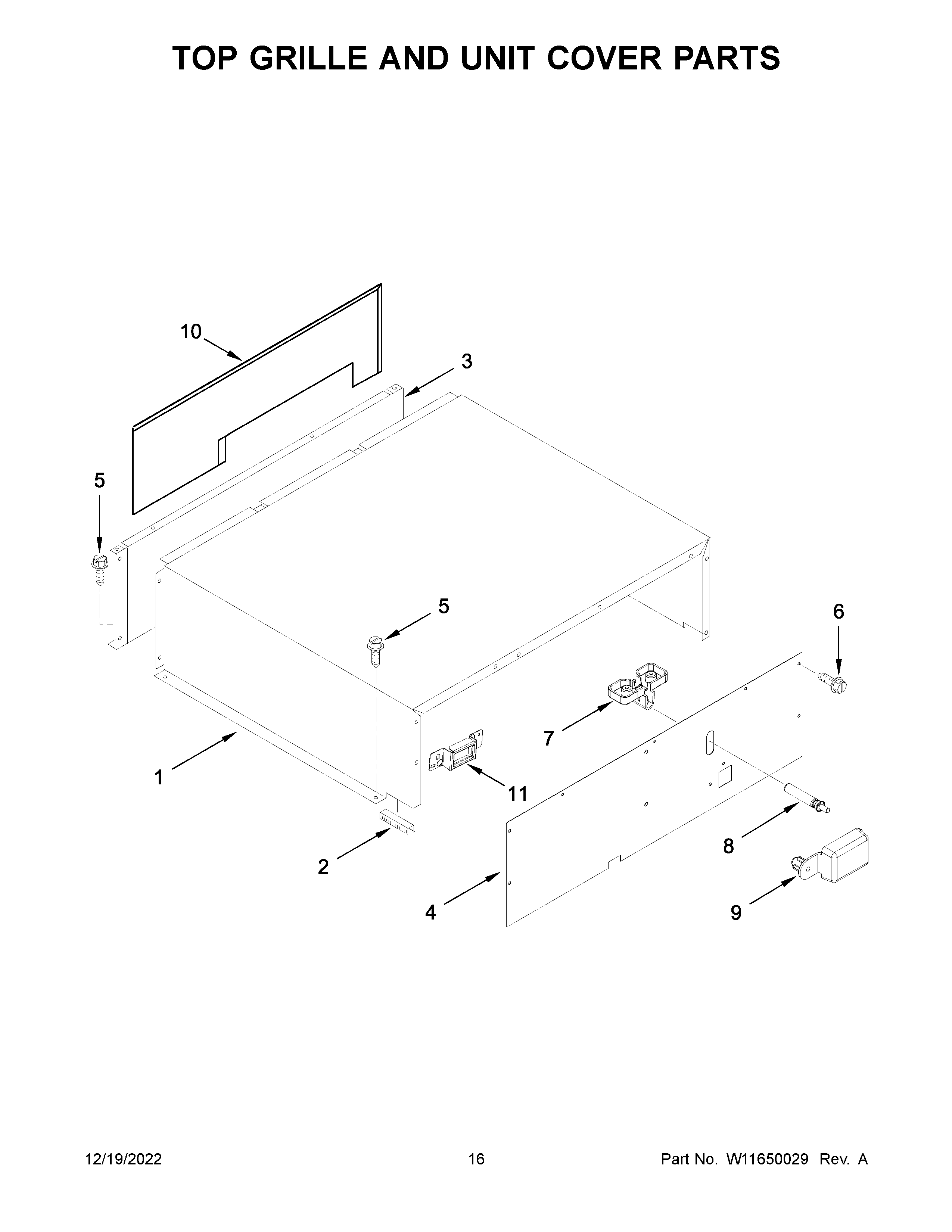

JF42NXFXDE05 09 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1W10545068 Whirlpool Refrigerator Unit Cover
22215910 Whirlpool Refrigerator Grommet
32256466 Whirlpool Refrigerator Unit Cover
4COVER, UNIT FRONT
5WP965173 Whirlpool Dishwasher Screw
6WP489069 Whirlpool Compactor Screw
7DAMPER, MOUNT
8W11251734 Whirlpool Plate
9W10770988 Whirlpool Damper
10INSULATION, UNIT BACK PANEL
11COVER, SAFETY SWITCH
