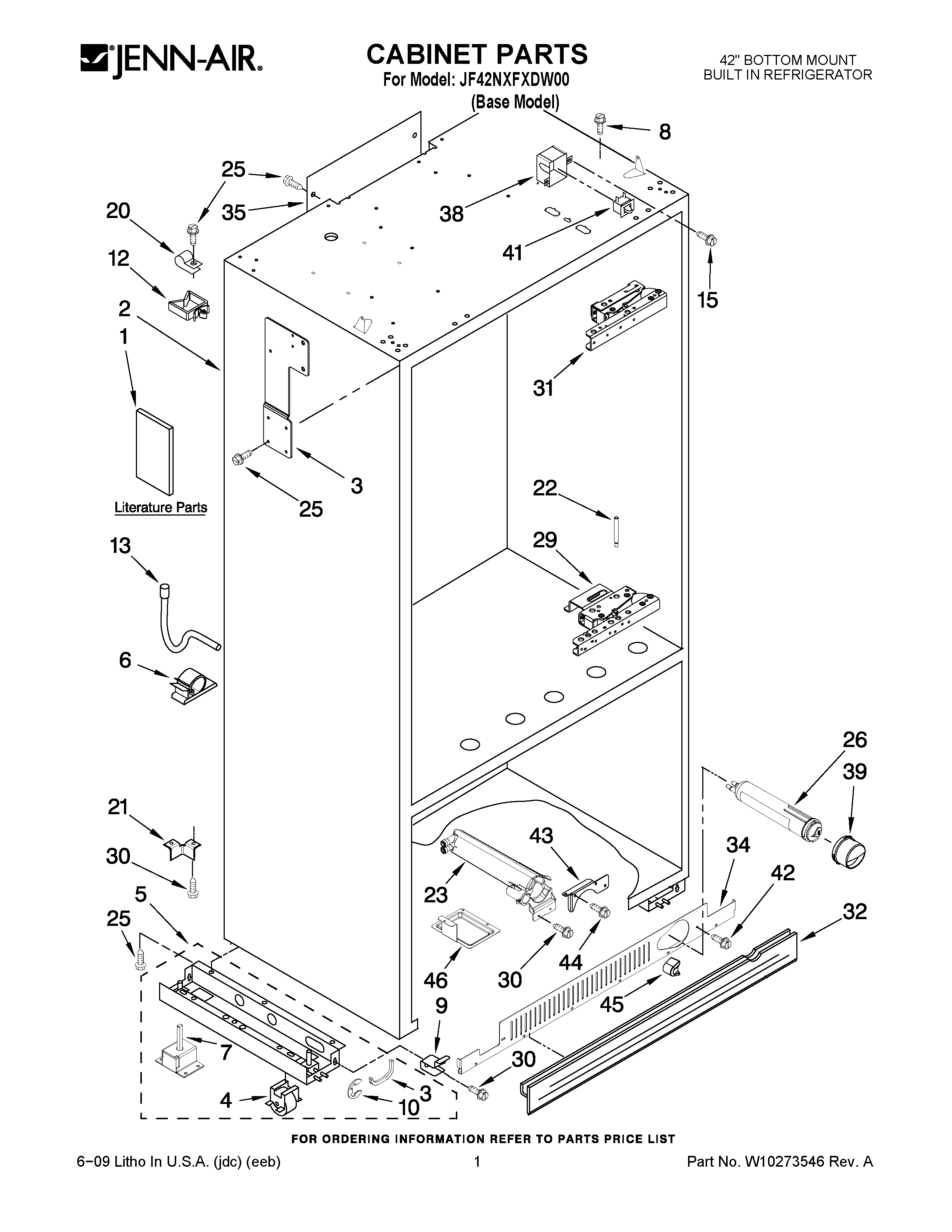

JF42NXFXDW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10234147
1	MAY W10234137
1	MAY W10231367
1	MAY W10246796
1	MAY W10231365
2	LINER (NOT A SERVICEABLE PART)
3	SUPPORT, GRILLE (LH)
3	SUPPORT, GRILLE (RH)
4	MAY W10138054
5	Support, Leveler Assembly (Freezer Side)
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6	CLIP
7	LEVELER ASSY
8	MAY 8281164
9	Mounting Stud, Grille
10	Ring, Retainer
12	Wire Clip (5)
13	MAY 2314064
15	Screw
20	MAY 2221070
21	Bracket, Support Base (Rear) (2)
22	Pin-Stop, Door
23	MAY 2260526
25	SCREW
26	MAY 4396841
29	MAY W10136731
30	Screw (3)
31	Hinge (Top) (FC)
31	Hinge (Top) (RC)
32	Skirt-Grille, Bottom
34	GRILLE BASE, FRONT
35	Cover, Rear
38	COVER, SWITCH (RH)
38	COVER, SWITCH (LH)
39	MAY 2260518B
41	SWITCH, LIGHT
42	MAY W10005050
43	Bracket, Mount (Water Filter)
44	Screw
45	Button, Filter (Black)
46	Tray, Drip Filter
