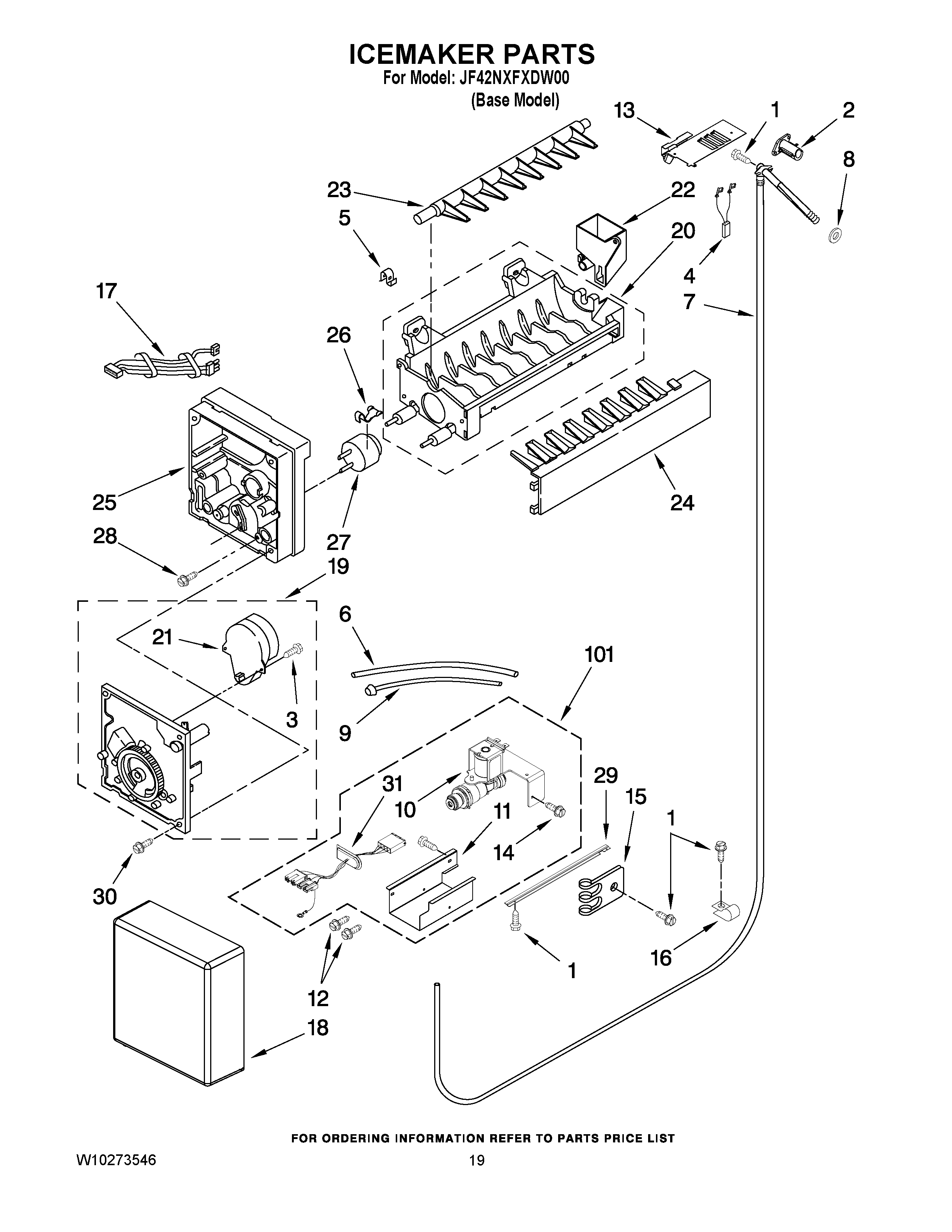

JF42NXFXDW00 11 – ICEMAKER PARTS

Written by

Products

Position	Product
NI	MAY W10222283
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	MAY W10249830
NI	MAY 8537055
NI	TEMPLATE, WOOD PANELS BM (RIGHT)
1	SCREW
2	MAY 2221240
3	MAY 489136
4	Jumper, Fill Tube Heater
5	Clip
6	MAY W10174395
7	MAY 2317848
8	Seal
9	MAY 2317912
10	MAY 2307650
11	MAY W10129653
12	Screw (3)
13	MAY 2221231
14	Screw
15	Clip, Tube
16	Clamp, Tubing
17	Wire Assembly, Icemaker
18	MAY 2257538
19	Module Assembly (Includes Items 23 and 24)
20	MAY W10122527
21	MAY 626683
22	Cup, Fill
23	MAY 627843
24	MAY 2182124
25	Support & Motor Assembly
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	MAY 8533917
29	MAY 2320559
30	MAY 489276
31	MAY W10139195
100	MAY 2316895
101	MAY W10160031
