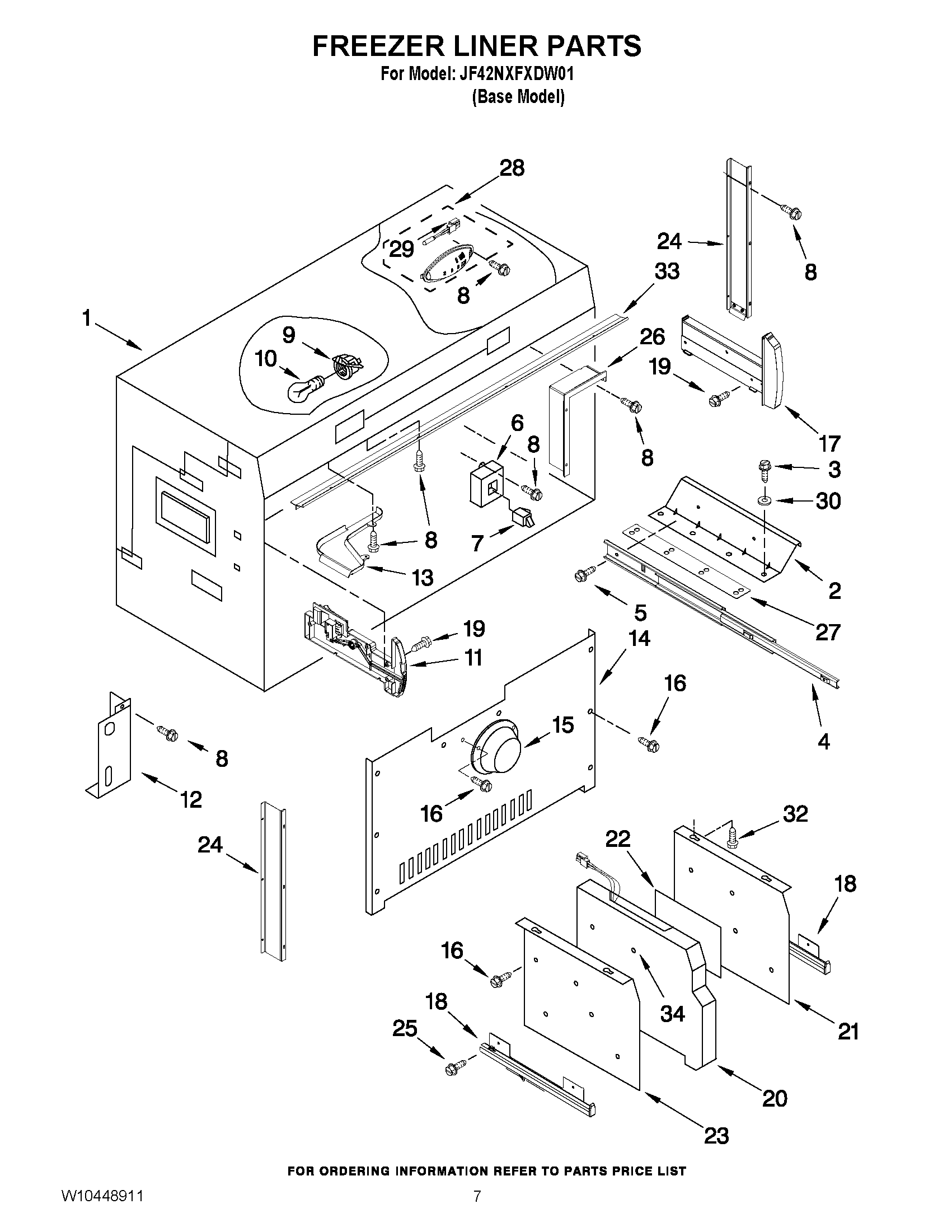

JF42NXFXDW01 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2306425
3MAY W10071460
4MAY 2320616
5MAY W10061370
6COVER, SWITCH
7SWITCH, LIGHT
8SCREW
9MAY 2223857
10Bulb, Light
11Switch Assembly, Icemaker (Includes Emitter)
12MAY 2306187
13MAY 2317005
14MAY 2306100
15COVER, FAN
16SCREW
17MAY 2306106
18MAY 2306116
18MAY 2306117
20DIVIDER, FREEZER BINS
21SUPPORT, SLIDE (RIGHT HAND)
22MAY 2317927
23SUPPORT, SLIDE (LEFT HAND)
24MAY 2317893
24BRACKET, EVAPORATOR COVER (LEFT HAND)
25MAY 488163
26MAY W10121940
27SHIM,BRACKET SLIDE
28ASSEMBLY, THERMISTOR
29MAY 2188820
30MAY W10075920
32Screw
33MAY W10135430
34MAY 2198643
