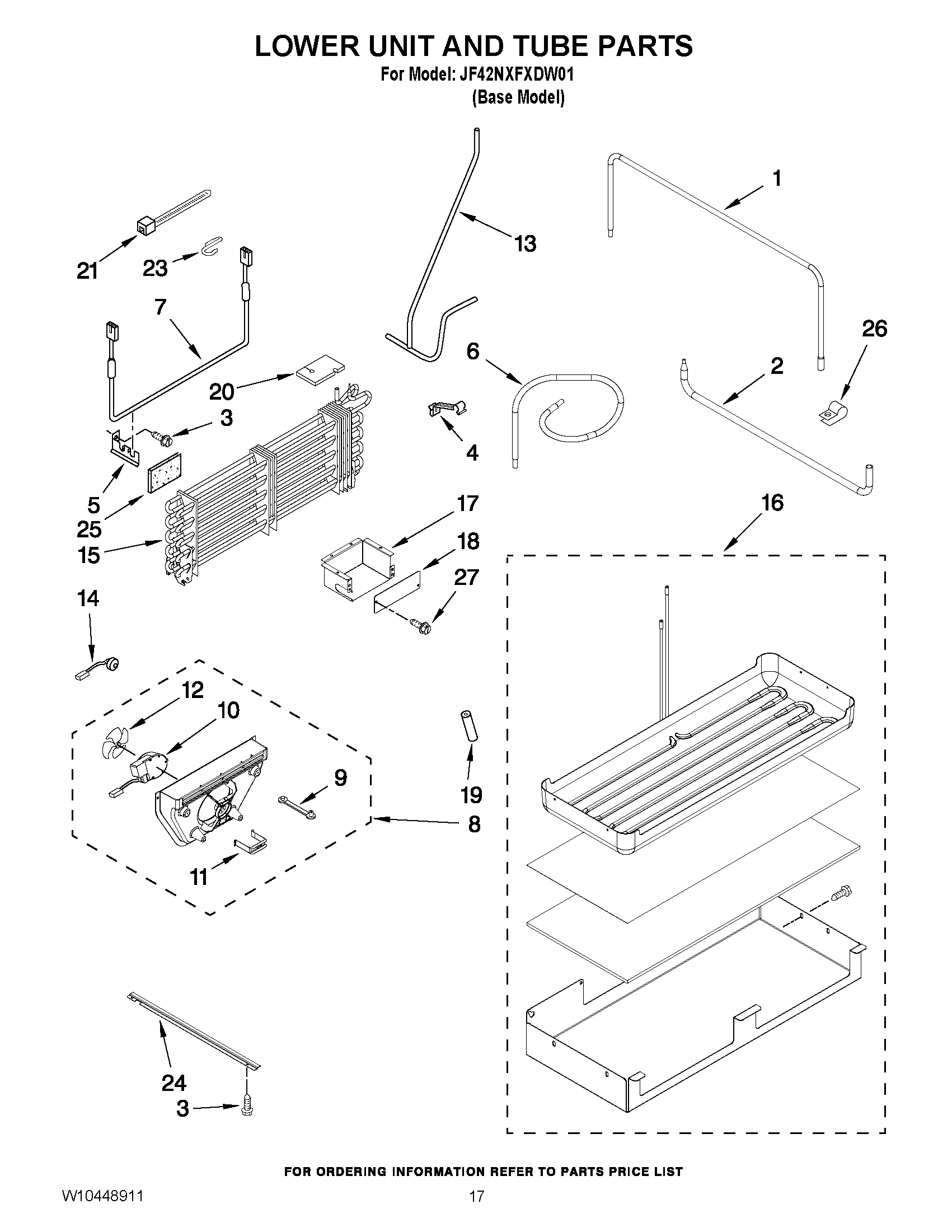

JF42NXFXDW01 10 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	TUBE, TRANSITION (CONDENSER/DRAIN PAN)
2	Tube, Connect (Drier/Restrictor)
3	SCREW
4	MAY 2307944
5	MAY 2307945
6	MAY 2309076
7	MAY W10219166
8	MAY 2306178
9	Grommet
10	MAY 2259385
11	MAY 2223733
12	Blade, Fan (Evaporator)
13	MAY W10121368
14	MAY W10139165
15	EVAPORATOR (INCLUDES No.5 & 7)
16	MAY W10281063
17	MAY W10153595
18	COVER, BOX
19	Dampener
20	MAY 2306180
21	MAY 2155774
23	MAY 2317920
24	MAY 2320554
25	SEALER, INSULATION
26	Clamp, Nylon
27	Screw
