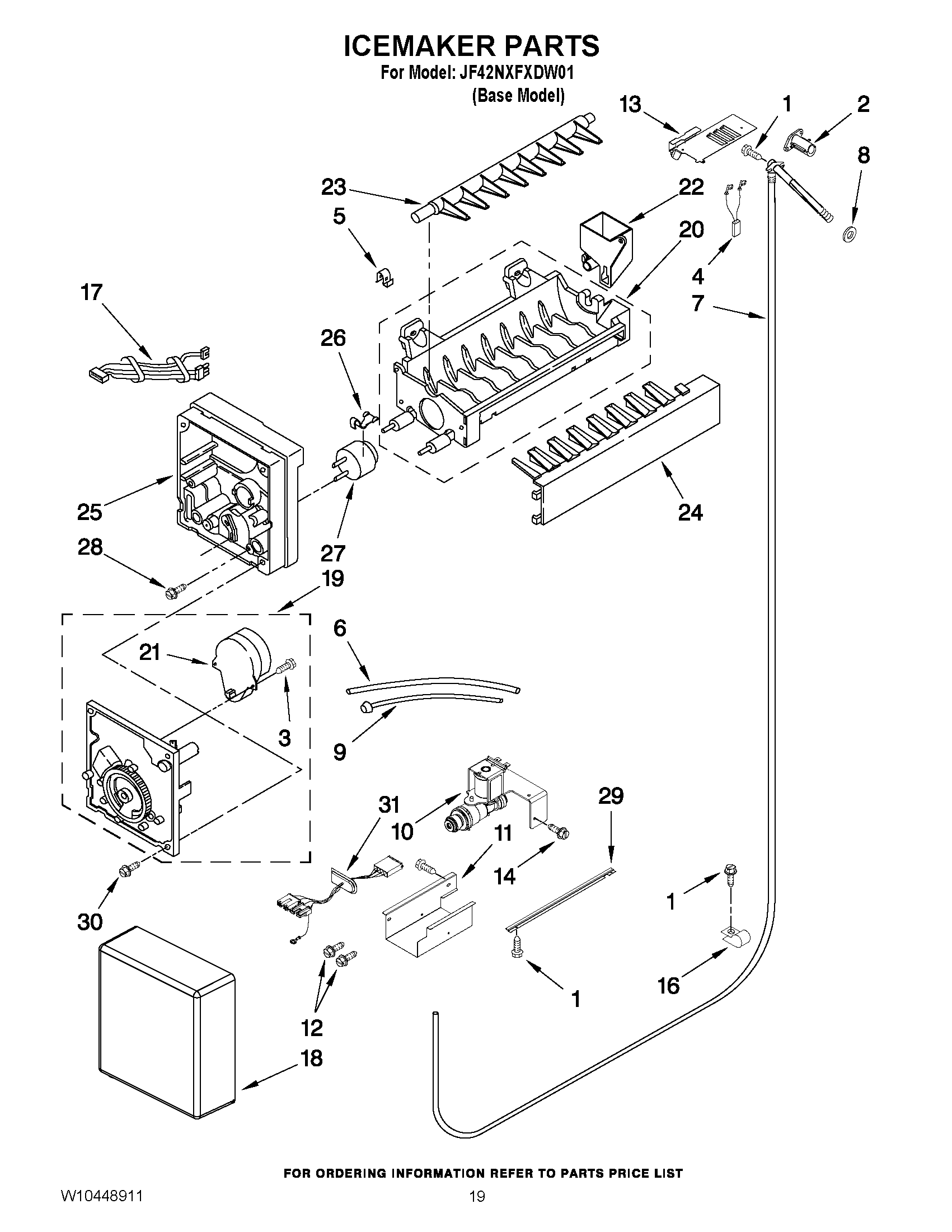

JF42NXFXDW01 11 – ICEMAKER PARTS

Products

Position	Product
NI	MAY W10249830
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	MAY W10222283
NI	TEMPLATE, WOOD PANELS BM (RIGHT)
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
1	SCREW
2	MAY 2221240
3	MAY 489136
4	Jumper, Fill Tube Heater
5	Clip
6	MAY W10296807
7	MAY 2317848
8	Seal
9	MAY 2317912
10	MAY 2307650
11	MAY W10129653
12	MAY W10001250
13	MAY 2221231
14	Screw
16	Clamp, Tubing
17	Wire Assembly, Icemaker
18	COVER
19	Module Assembly (Includes Items 23 and 24)
20	MAY W10122527
21	MAY 626683
22	MAY W10122561
23	MAY 627843
24	ICE STRIPPER
25	MAY 2194712
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	MAY 8533917
29	MAY 2320559
30	MAY 489276
31	MAY W10279393
100	MAY W10277450
