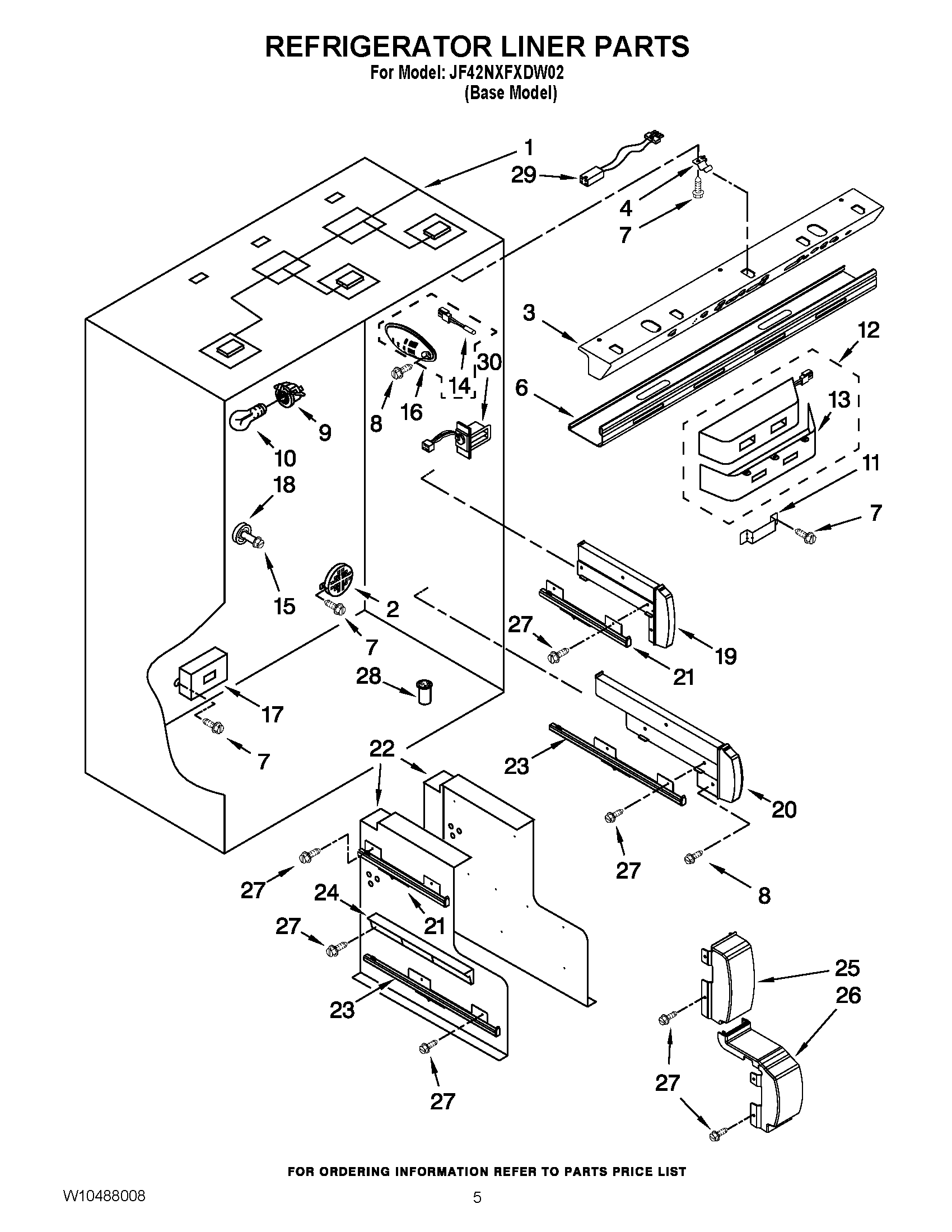

JF42NXFXDW02 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2317004
3	MAY W10269708
4	MAY 2317000
6	MAY 2309248
7	SCREW
8	MAY 488163
9	MAY W10191429
10	Bulb, Light
11	MAY 2317917
12	MAY 2320523
13	Cover, Diffuser
14	MAY 2188820
15	MAY W10191952
16	ASSEMBLY, THERMISTOR
17	DIFFUSER, CRISPER (COMPLETE)
18	ASSEMBLY, SHELF STUD
19	MAY 2268331
19	MAY 2268332
20	MAY 2306475
20	MAY 2306474
21	Slide, Crisper (Right Vent)
21	Slide, Crisper (Left)
22	MAY 2320550
22	MAY 2320551
23	Slide, Crisper (Right Side)
23	Slide, Crisper (Left Side)
24	MAY 2314054
25	MAY 2309083
26	MAY 2318008
27	MAY W10001160
28	Valve
29	MAY W10209498
30	Air Baffle Assembly
