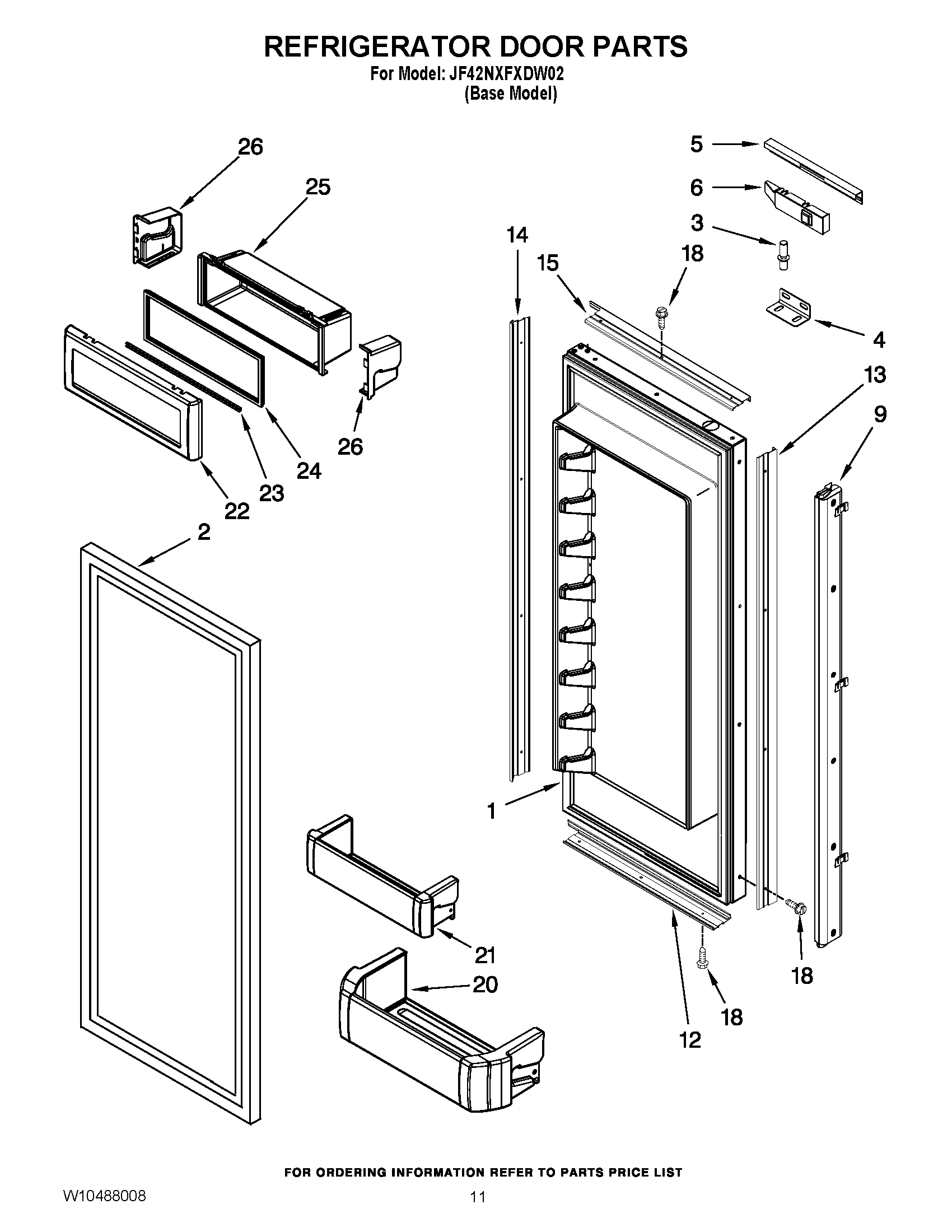

JF42NXFXDW02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (INCLUDES ITEM 2) (RH)
1	DOOR, REFRIGERATOR (INCLUDES ITEM 2) (LH)
2	MAY 2268265
3	Pin-Door, Top
4	MAY W10199955
5	MAY W10202511
5	MAY W10202510
6	INSERT-DOOR, ARM (BOTTOM)
6	INSERT-DOOR, ARM (TOP)
9	MAY W10188592
12	MAY W10202474
12	TRIM-DOOR, BOTTOM (RH)
13	TRIM-DOOR, SIDE (HANDLE SIDE) (RH)
13	MAY W10202480
14	MAY W10202476
15	TRIM-DOOR, TOP (RH)
15	MAY W10202472
18	MAY 8281251
20	BUCKET, GALLON
21	BUCKET, SHALLOW
22	MAY W10131132
23	MAY 2222795
24	MAY 2222981
25	MAY W10323035
26	END CAP (LEFT HAND)
26	END CAP (RIGHT HAND)
