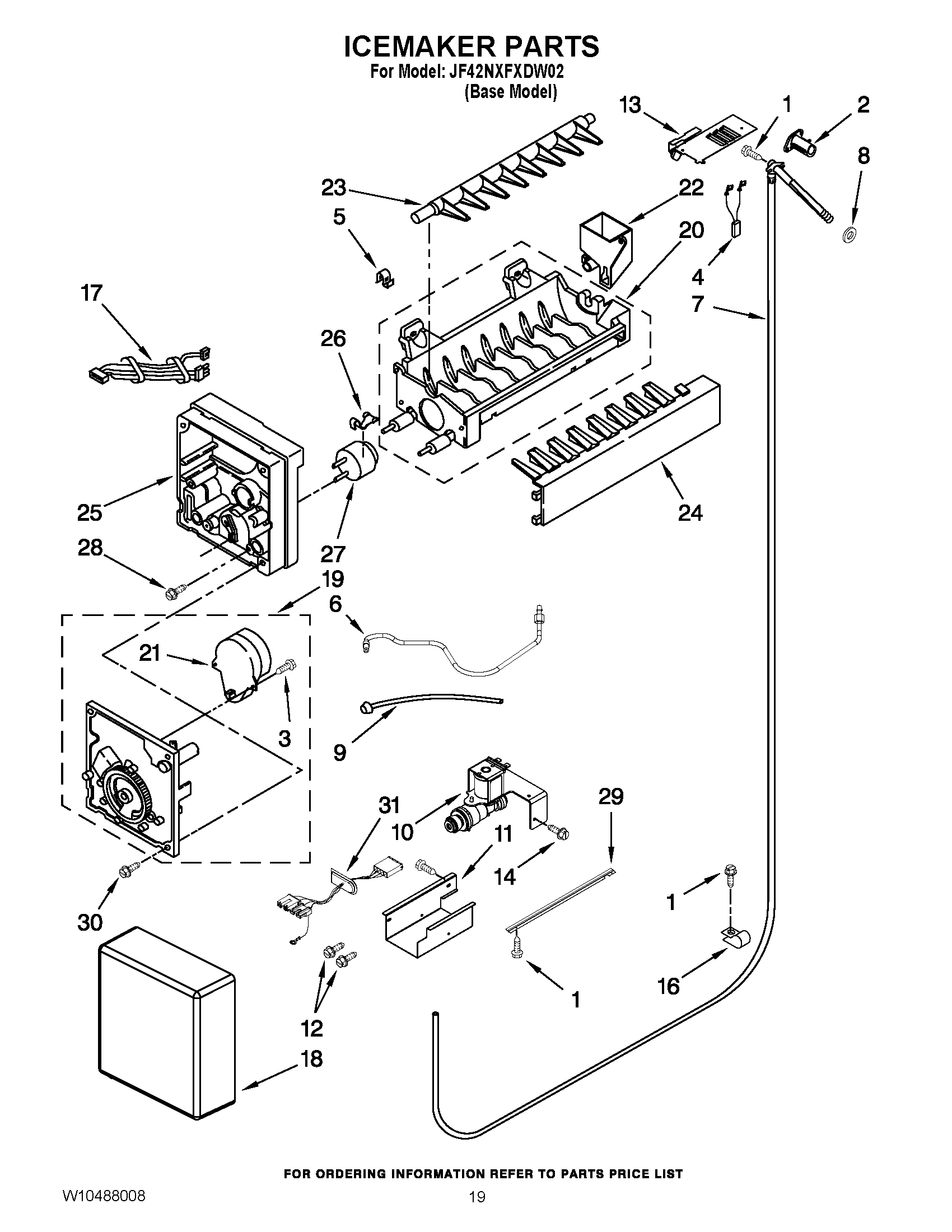

JF42NXFXDW02 11 – ICEMAKER PARTSadmin2025-04-26T09:27:04+00:00JF42NXFXDW02 11 – ICEMAKER PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE |
| NI | MAY REFDEODOR |
| NI | MAY W10222283 |
| NI | ACCESSORIES, WIPES, STAINLESS STEEL CLEANING |
| NI | BLOCK, INSTALL TEMPLATE, WOOD PANELS |
| NI | MAY W10249830 |
| NI | ACCESSORY PARTS, CLEANER, STAINLESS STEEL |
| NI | TEMPLATE, WOOD PANELS BM (RIGHT) |
| 1 | SCREW |
| 2 | MAY 2221240 |
| 3 | MAY 489136 |
| 4 | Jumper, Fill Tube Heater |
| 5 | Clip |
| 6 | MAY W10296807 |
| 7 | MAY 2317847 |
| 8 | Seal |
| 9 | MAY 2317912 |
| 10 | MAY 2307650 |
| 11 | MAY W10129653 |
| 12 | MAY W10001250 |
| 13 | MAY 2221231 |
| 14 | Screw |
| 16 | Clamp, Tubing |
| 17 | Wire Assembly, Icemaker |
| 18 | COVER |
| 19 | Module Assembly (Includes Items 23 and 24) |
| 20 | MAY W10122527 |
| 21 | MAY 626683 |
| 22 | MAY W10435665 |
| 23 | MAY 627843 |
| 24 | ICE STRIPPER |
| 25 | MAY 2194712 |
| 26 | MAY 2315522 |
| 27 | Thermostat (Also Order 542369 Cement Alumilastic) |
| 28 | MAY 8533917 |
| 29 | MAY 2320559 |
| 30 | MAY 489276 |
| 31 | MAY W10279393 |
| 100 | MAY W10277450 |
