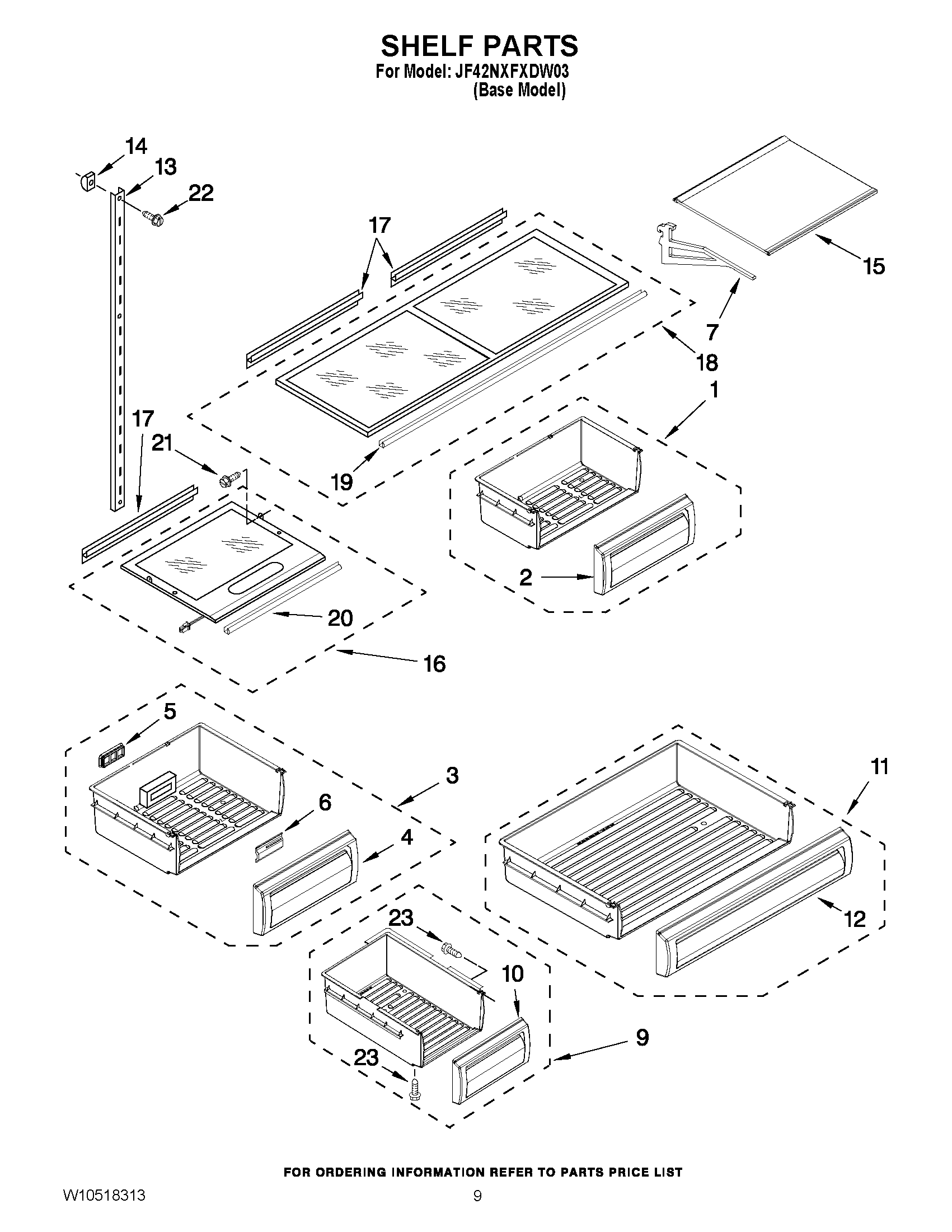

JF42NXFXDW03 06 – SHELF PARTS

Written by

Products

Position	Product
1	CRISPER PAN ASSEMBLY INCLUDES No. 2) (LEFT)
1	CRISPER PAN ASSEMBLY INCLUDES No. 2) (RIGHT)
2	MAY 2256247
3	DELI PAN ASSEMBLY (INCL. No.4, 5 & 6) (RIGHT)
3	DELI PAN ASSEMBLY (INCL. No.4, 5 & 6) (LEFT)
4	MAY 2256365
5	DUCT, PAN
6	DEFLECTOR
7	MAY W10187549
9	ASSEMBLY, ICE PAN
10	Front, Ice Pan
11	MAY 2327511
12	Front, Meat Pan
13	LADDER, SHELF (SIDE)
14	LADDER, SHELF (CENTER)
15	SHELF (4)
16	COVER, DELI BIN (RH)
16	COVER, DELI BIN (LH)
17	MAY 2309400
18	MAY W10183754
19	MAY 2309396
20	MAY 2309395
21	MAY 8281251
22	SCREW
23	MAY 488886
