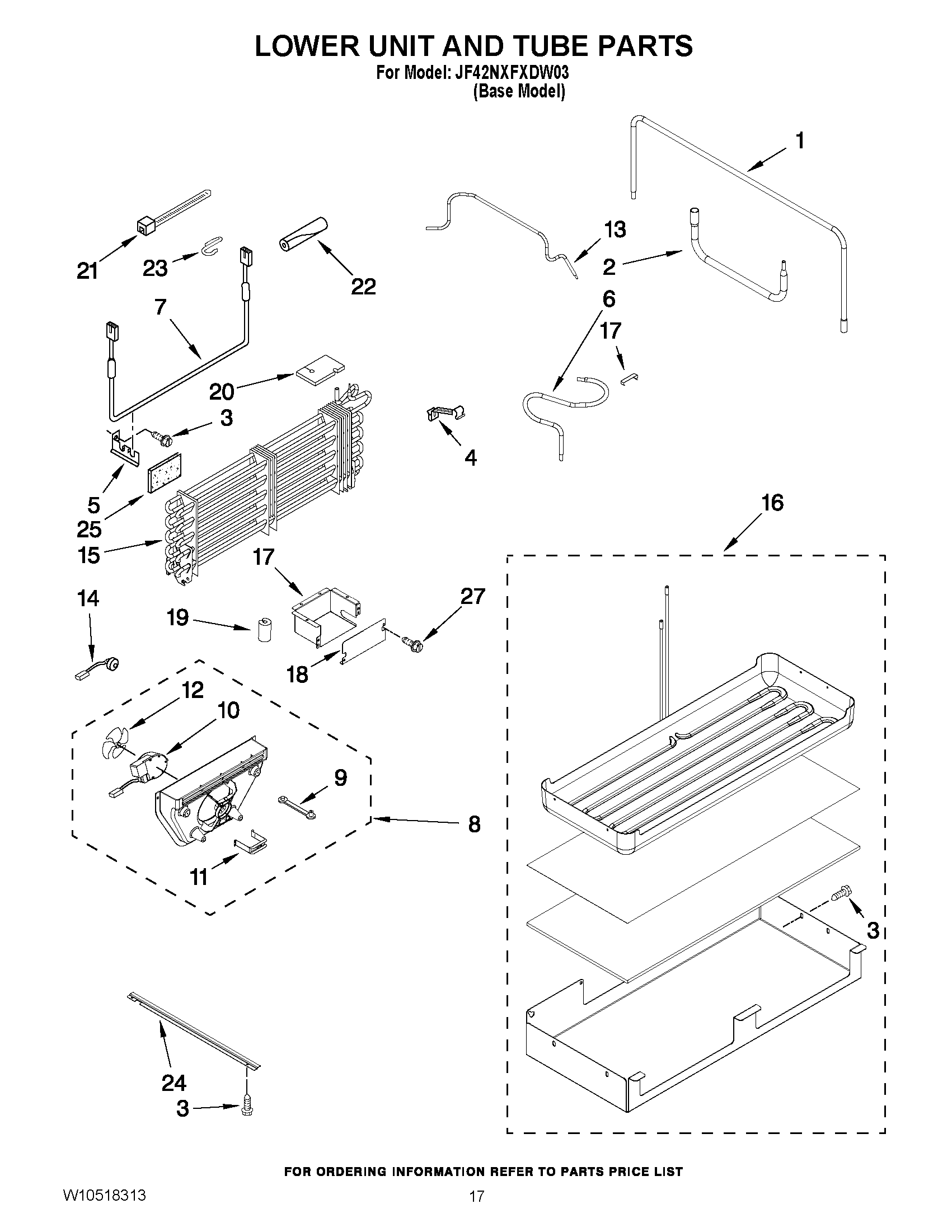

JF42NXFXDW03 10 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	TUBE, TRANSITION (CONDENSER/DRAIN PAN)
2	TUBE, CONNECT (DRIER/RESTRICTOR)
3	SCREW
4	MAY 2307944
5	MAY 2307945
6	SUCTION TUBE
7	MAY W10219166
8	MAY W10321092
9	MAY W10321090
10	MAY W10436861
11	MAY W10260421
12	Blade, Fan (Evaporator)
13	TUBE, DISCHARGE ASSEMBLY
14	MAY W10139165
15	EVAPORATOR (INCLUDES No.5 & 7)
16	MAY W10281063
17	MAY W10321048
18	COVER, WIRING
19	GROMMET, CONDENSER
20	MAY 2306180
21	MAY 2155774
22	MAY W10405530
23	MAY 2317920
24	MAY 2320554
25	SEALER, INSULATION
27	Screw
