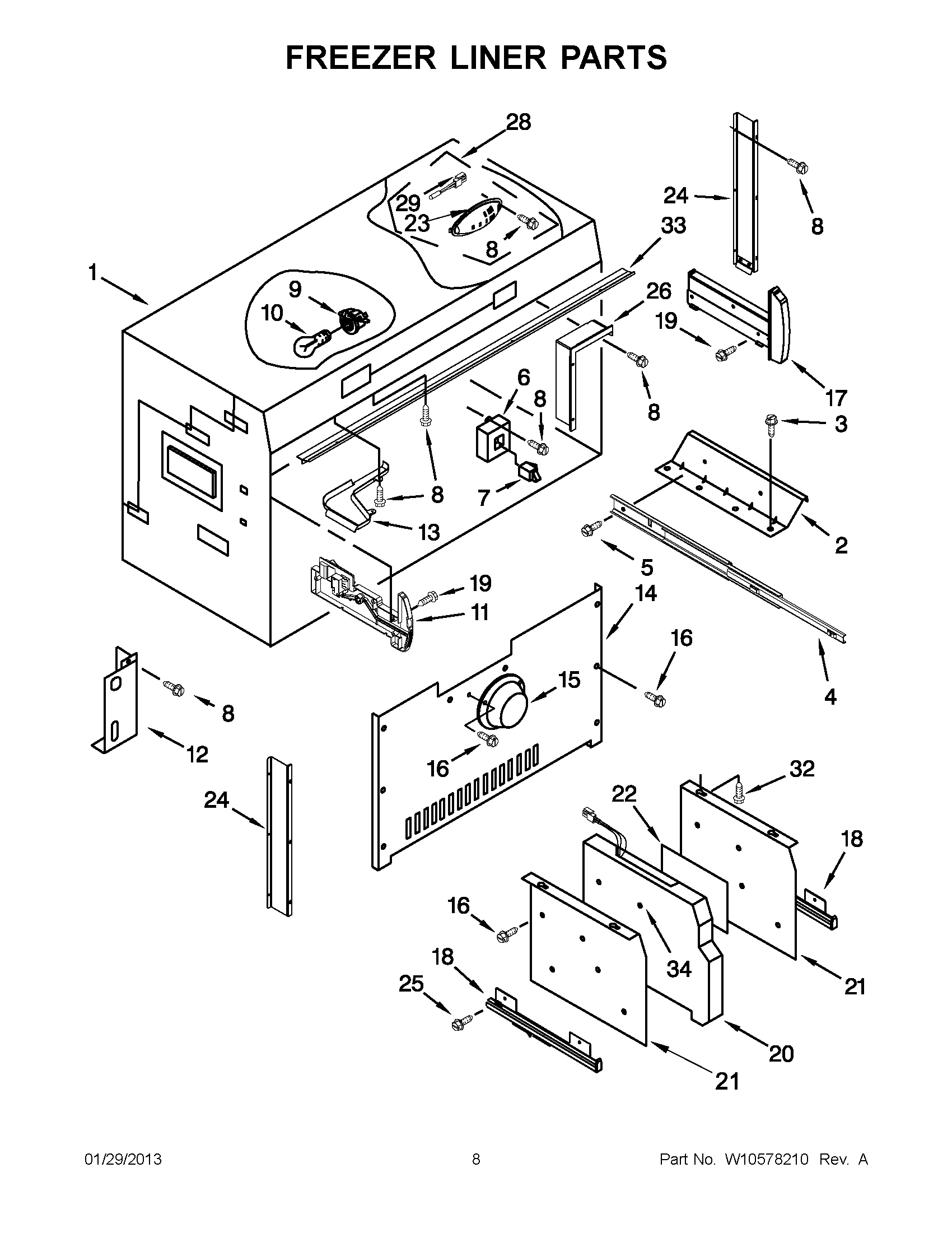

JF42NXFXDW04 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10423553
3	MAY W10071460
4	MAY W10423551
5	MAY W10061370
6	COVER, SWITCH
7	SWITCH, LIGHT
8	SCREW
9	MAY W10191429
10	Bulb, Light
11	MAY W10321131
12	MAY 2306187
13	MAY 2317005
14	MAY 2306100
15	COVER, FAN
16	SCREW
17	MAY 2306106
18	MAY 2306116
18	MAY 2306117
20	DIVIDER, FREEZER BINS
21	SUPPORT, SLIDE (RIGHT HAND)
21	SUPPORT, SLIDE (LEFT HAND)
22	MAY 2317927
23	MAY 2317105
24	MAY 2317893
24	BRACKET, EVAPORATOR COVER (LEFT HAND)
25	MAY 488163
26	MAY W10121940
28	ASSEMBLY, THERMISTOR
29	MAY 2188820
32	Screw
33	MAY W10135430
34	MAY 2198643
