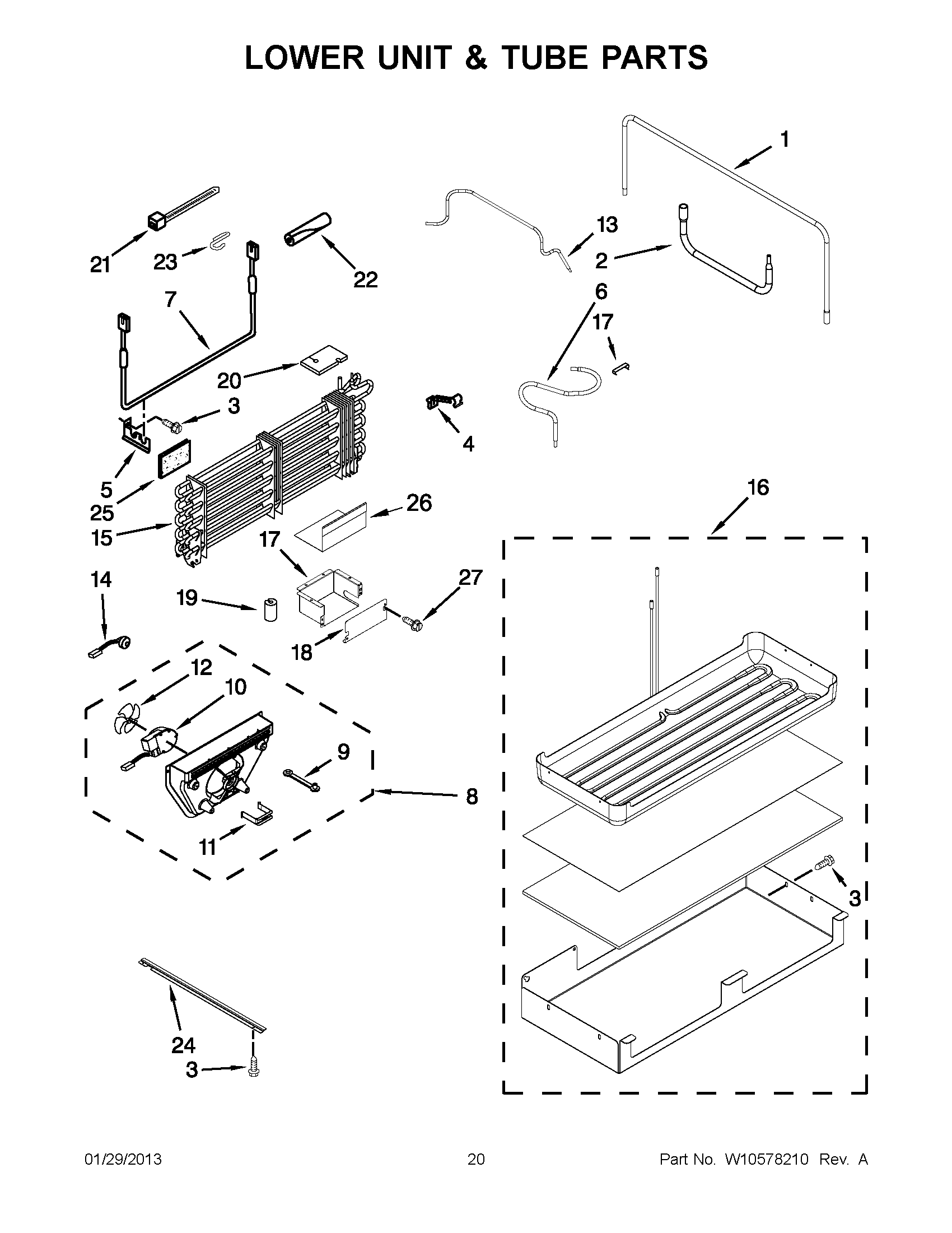

JF42NXFXDW04 10 – LOWER UNIT & TUBE PARTS

Products

PositionProduct
1TUBE, TRANSITION (CONDENSER/DRAIN PAN)
2TUBE, CONNECT (DRIER/RESTRICTOR)
3SCREW
4MAY 2307944
5MAY 2307945
6TUBE, OIL TRAP SUCTION
7MAY W10219166
8MAY W10321092
9MAY W10321090
10MAY W10436861
11MAY W10260421
12Blade, Fan (Evaporator)
13TUBE, DISCHARGE ASSEMBLY
14MAY W10482185
15EVAPORATOR (INCLUDES No.5 & 7)
16MAY W10281063
17MAY W10321048
18COVER, WIRING
19GROMMET, CONDENSER
20MAY 2306180
21MAY 2155774
22MAY W10405530
23MAY 2317920
24MAY 2320554
25SEALER, INSULATION
26MAY W10321050
27Screw
