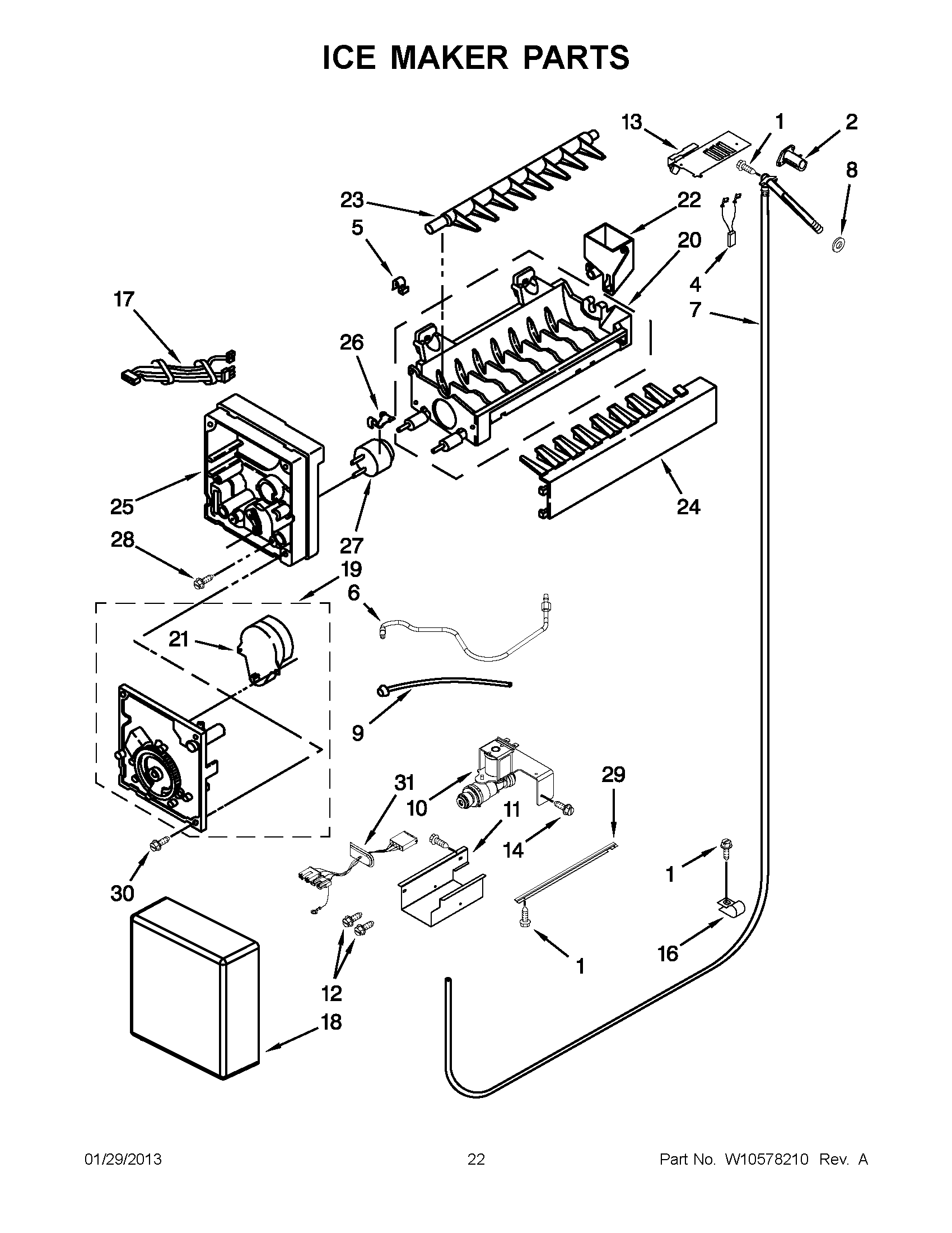

JF42NXFXDW04 11 – ICE MAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY REFDEODOR
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	MAY W10249830
NI	MAY W10489178
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	TEMPLATE, DOORS (WOOD PANEL)
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
1	SCREW
2	MAY 2221240
4	WIRE ASSEMBLY, FILL TUBE HEATER
5	Clip
6	MAY W10296807
7	MAY 2317847
8	Seal
9	MAY W10437853
10	MAY 2307650
11	MAY W10129653
12	MAY W10001250
13	MAY 2221231
14	Screw
16	Clamp, Tubing
17	WIRE ASSEMBLY, ICE MAKER
18	COVER
19	Module Assembly (Includes Items 23 and 24)
20	MAY W10122527
22	MAY W10435665
23	MAY 627843
24	ICE STRIPPER
25	MAY 2194712
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	Screw (2)
29	MAY 2320559
30	MAY 489276
31	MAY W10279393
100	MAY W10277450
