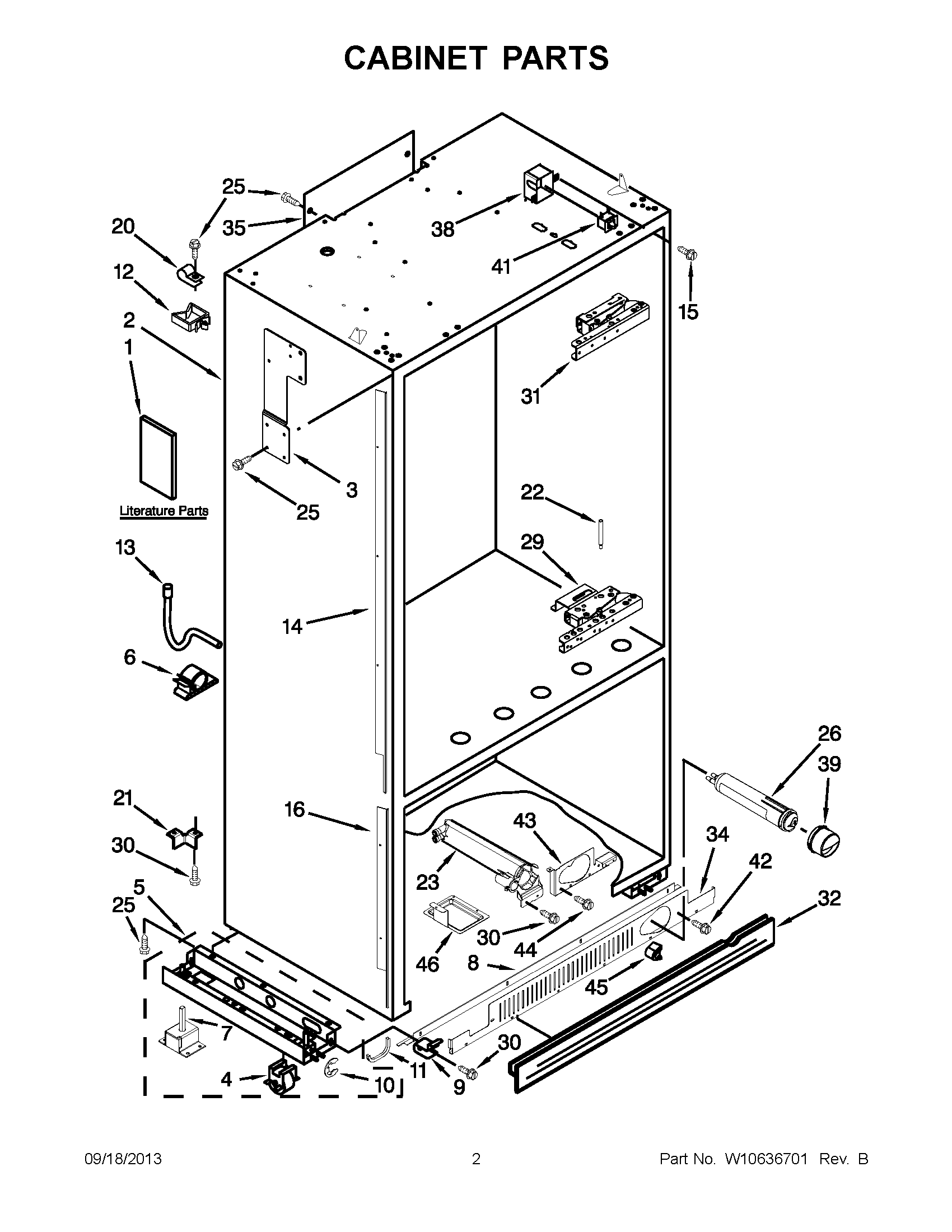

JF42NXFXDW05 02 – CABINET PARTS

Products

Position	Product
1	MAY W10483327
1	MAY W10246796
1	MAY W10234147
1	MAY 2317840
1	MAY W10379137
1	MAY W10303991
2	LINER (NOT A SERVICEABLE PART)
3	SUPPORT, GRILLE (RH)
3	SUPPORT, GRILLE (LH)
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	CLIP
7	LEVELER ASSY
8	MAY W10250962
9	Mounting Stud, Grille
10	Ring, Retainer
11	GROMMET, CROSSOVERTUBE
12	Wire Clip (5)
13	MAY 2314064
14	MAY W10207207
15	Screw
16	MAY W10207244
20	MAY W10331955
21	Bracket, Support Base (Rear) (2)
22	Pin-Stop, Door
23	MAY W10121140
25	SCREW
26	Filter, Water
29	MAY W10136731
30	MAY W10001250
31	Hinge (Top) (RC)
31	Hinge (Top) (FC)
32	Skirt-Grille, Bottom
34	GRILLE BASE, FRONT
35	MAY W10426957
38	COVER, SWITCH (LH)
38	COVER, SWITCH (RH)
39	MAY 2260518B
41	SWITCH, LIGHT
42	MAY W10005050
43	BRACKET, FILTER
44	Screw
45	Button, Filter (Black)
46	Tray, Drip Filter
