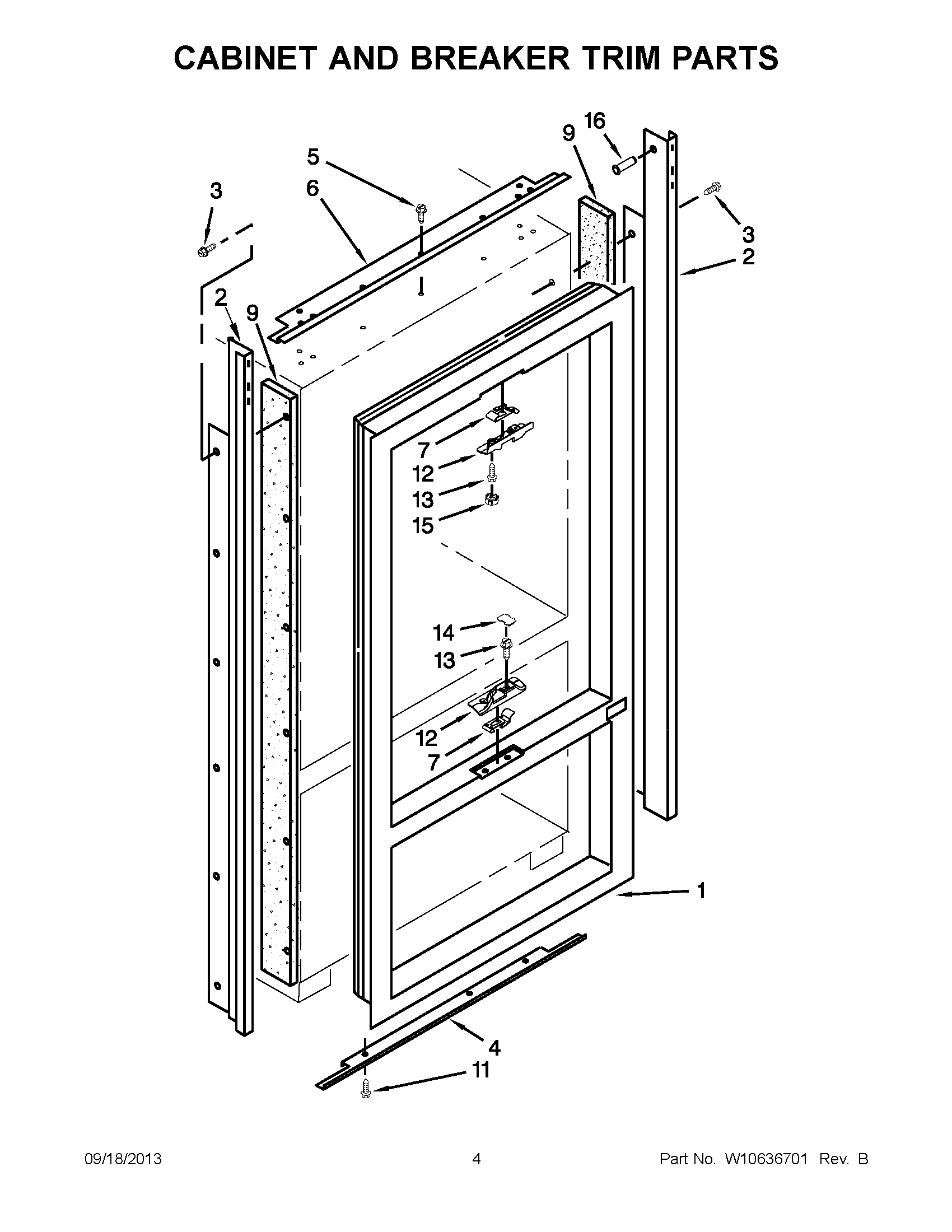

JF42NXFXDW05 03 – CABINET AND BREAKER TRIM PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10344547
2CABINET TRIM, RIGHT SIDE
3SCREW
4MAY W10188505
6MAY W10138451
7MAY 2316858
7MAY 2316857
9SEAL-TRIM, SIDE
11MAY W10001250
12MAY 2309230
12MAY 2309231
13SCREW
14MAY 2316899
15MAY 2317078
16Nutsert (4)
