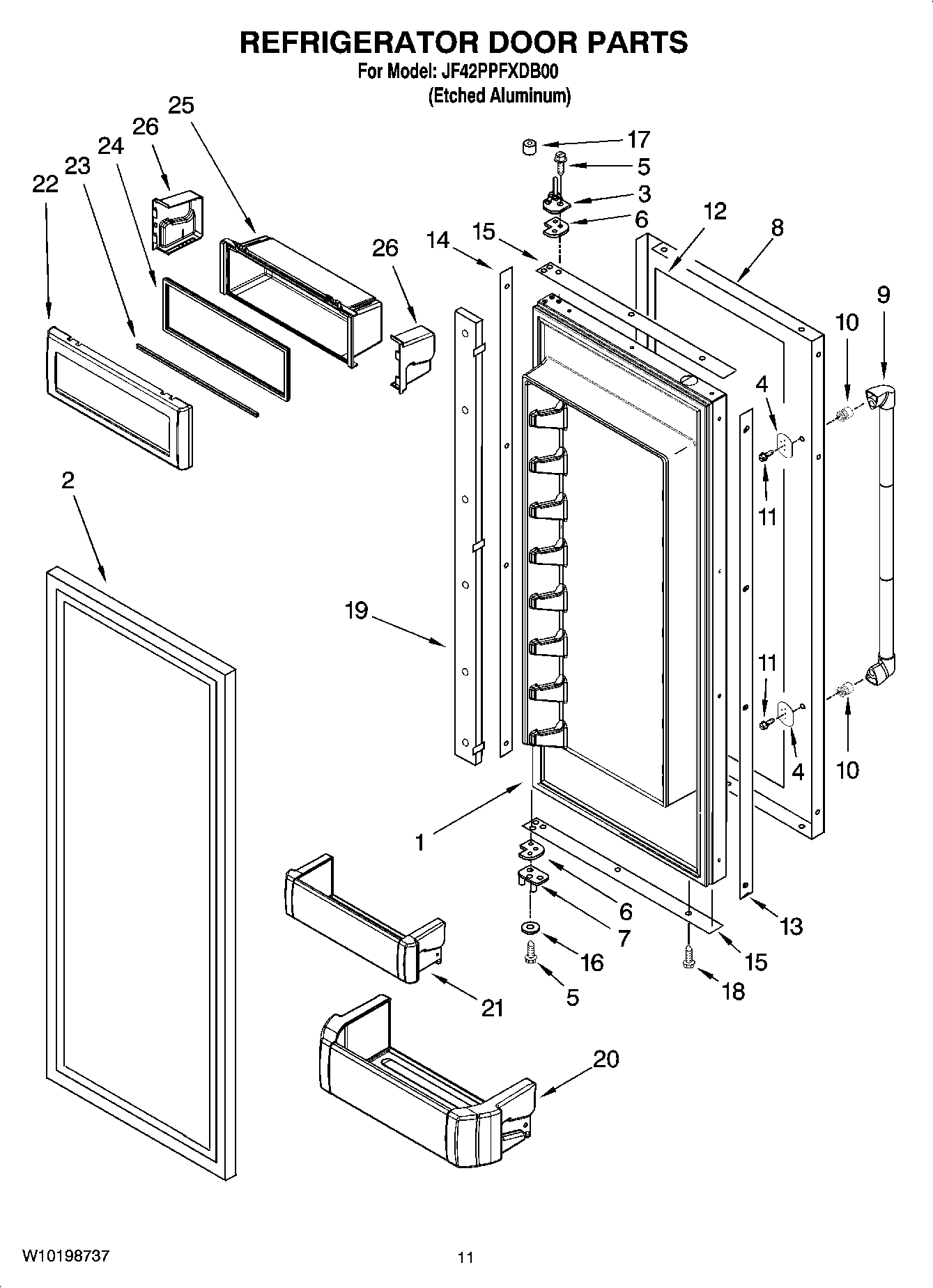

JF42PPFXDB00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 2307902
1	MAY 2307903
2	MAY 2268265
3	MAY 2320642
4	MAY W10127710
5	MAY 489282
6	Spacer-Door, Top & Bottom
7	MAY 2316752
7	MAY 2316751
8	MAY W10183779
9	WP12859109 Whirlpool Door Handle
10	STUD, HANDLE MOUNTING
11	Screw
12	MAY 2309218
13	MAY 2314068
14	MAY 2316768
15	MAY 2309204
16	WASHER
17	MAY 2316760
18	Screw, 8-15 x .500 (Stainless Steel)
19	MAY 2307938
20	MAY 2222769
21	MAY 2222772
22	MAY W10131132
23	MAY 2222795
24	MAY 2222981
25	MAY 2222921
26	End Cap (Right Side)
26	End Cap (Left Side)
