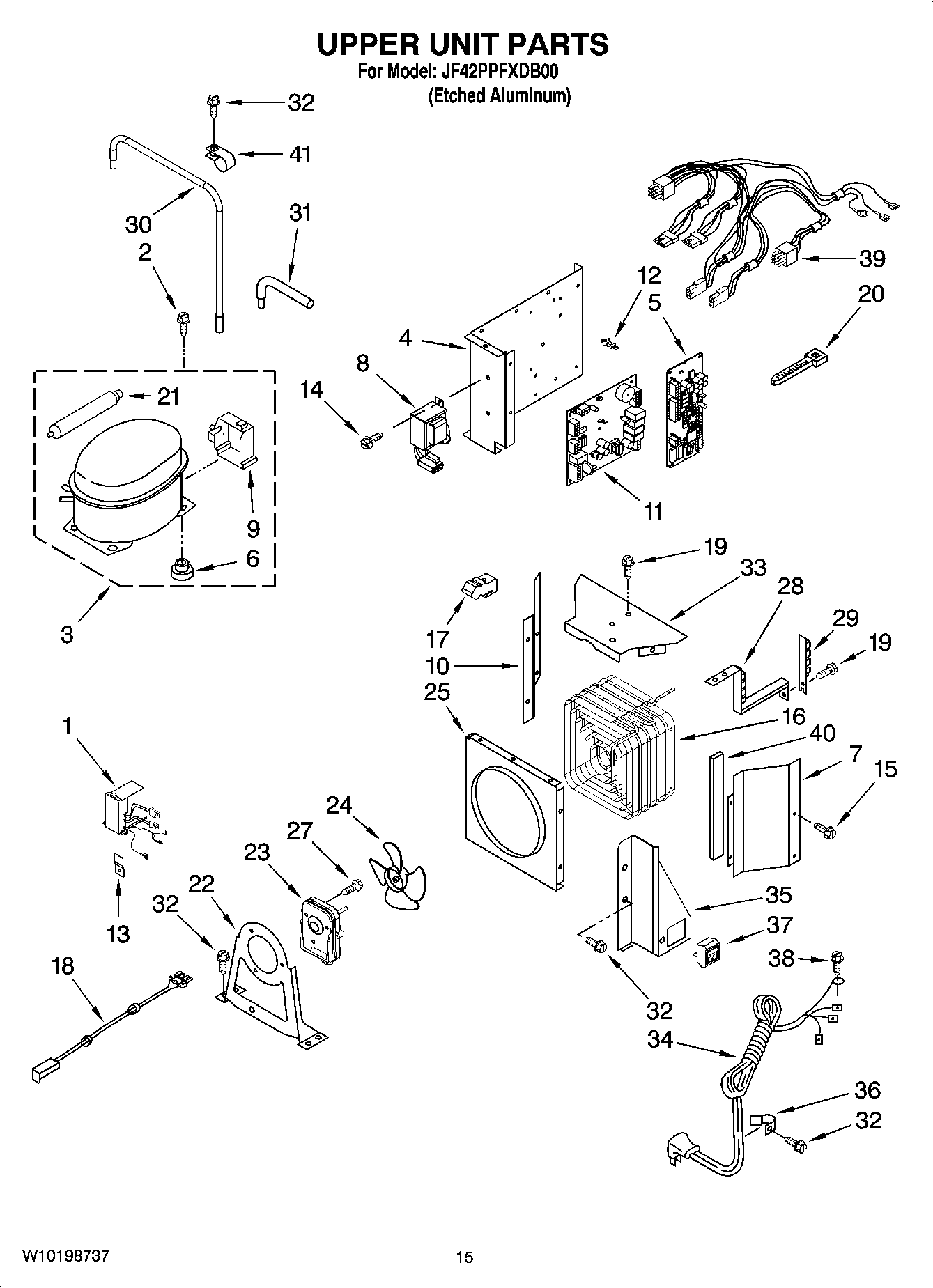

JF42PPFXDB00 09 – UPPER UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY W10133449
2	MAY 489373
3	Compressor (Includes Items 6 & 9)(Also Order 876765 Tube Kit)
4	MAY 2307683
5	MAY 2303091
6	Grommet (Production)
7	Support, Condenser
8	MAY 2303033
9	MAY 2215676
10	MAY 2309001
11	MAY W10121049
12	Spacer (5)
13	Bracket, Inverter Box
14	Screw
15	MAY 1157158
16	MAY 2307998
17	MAY 2309431
18	MAY 2310207
19	Screw 8-32 x 5/16
20	MAY 2155774
21	MAY W10183201
22	Bracket, Fan Motor (Condenser Fan)
23	MAY 2188875
24	MAY W10139483
25	MAY 2003169
27	MAY 8533993
28	BRACKET, VIBRATION CONDENSER
29	ARM, VIBRATION CONDENSER
30	MAY 2307566
31	MAY 2194319
32	SCREW
33	MAY 2309000
34	MAY 2310251
35	MAY 2307684
36	MAY 549193
37	Switch, Power Disconnect
38	Screw, Ground
39	MAY W10123227
40	MAY 2309432
41	Clamp, Nylon
