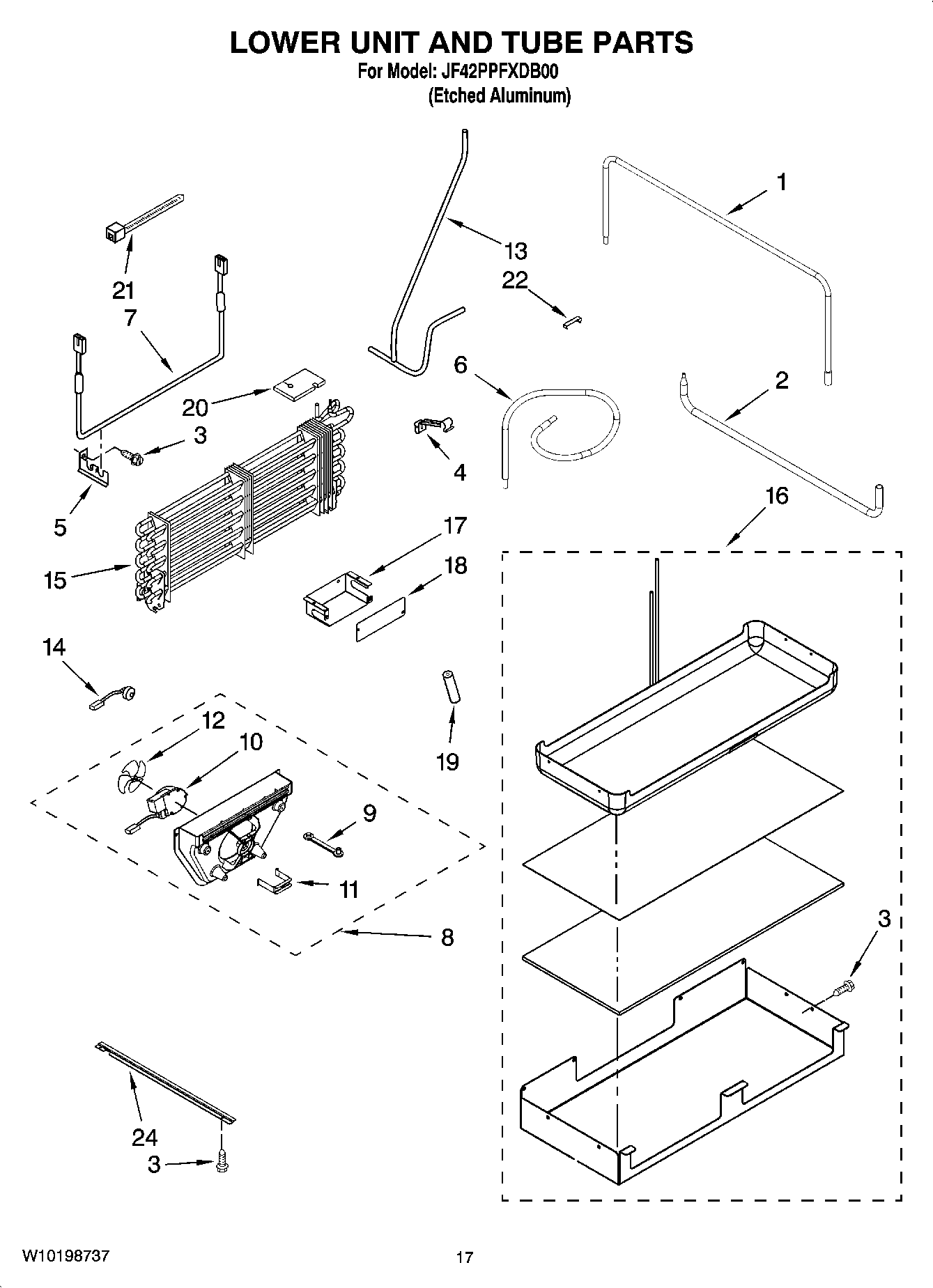

JF42PPFXDB00 10 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	TUBE, TRANSITION (CONDENSER/DRAIN PAN)
2	Tube, Connect (Drier/Restrictor)
3	SCREW
4	MAY 2307944
5	MAY 2307945
6	MAY 2309076
7	MAY 2306176
8	MAY 2306178
9	Grommet
10	MAY 2259385
11	MAY 2223733
12	Blade, Fan (Evaporator)
13	MAY W10121368
14	MAY W10139165
15	MAY 2306485
16	MAY 2320615
17	MAY W10153595
18	MAY W10151288
19	Dampener
20	MAY 2306180
21	MAY 2155774
22	MAY 2317920
24	MAY 2320554
