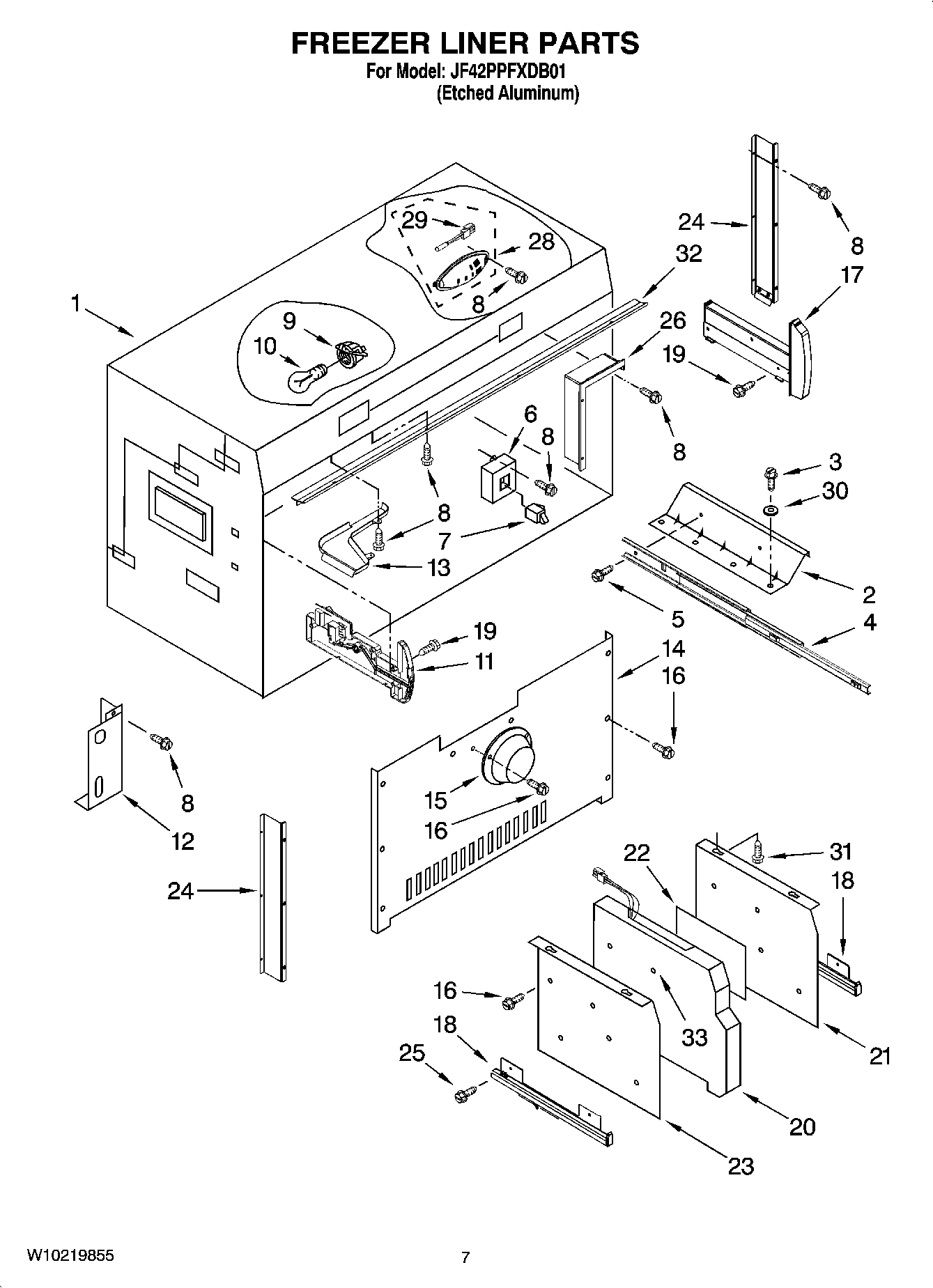

JF42PPFXDB01 05 – FREEZER LINER PARTS

Products

Position	Product
2	MAY 2306425
3	MAY W10071460
4	MAY 2320616
5	MAY W10061370
6	MAY 2314022
7	MAY 1118894
8	SCREW
9	MAY 2223857
10	Bulb, Light
11	Switch Assembly, Icemaker (Includes Emitter)
12	MAY 2306187
13	MAY 2317005
14	MAY 2306100
15	COVER, FAN
16	SCREW
17	MAY 2306106
18	MAY 2306116
18	MAY 2306117
20	MAY 2317925
21	SUPPORT, SLIDE (RIGHT HAND)
22	MAY 2317927
23	SUPPORT, SLIDE (LEFT HAND)
24	MAY 2317893
24	BRACKET, EVAPORATOR COVER (LEFT HAND)
25	MAY 488163
26	MAY W10121940
28	ASSEMBLY, THERMISTOR
29	MAY 2188820
30	MAY W10075920
31	Screw
32	MAY W10135430
33	MAY 2198643
