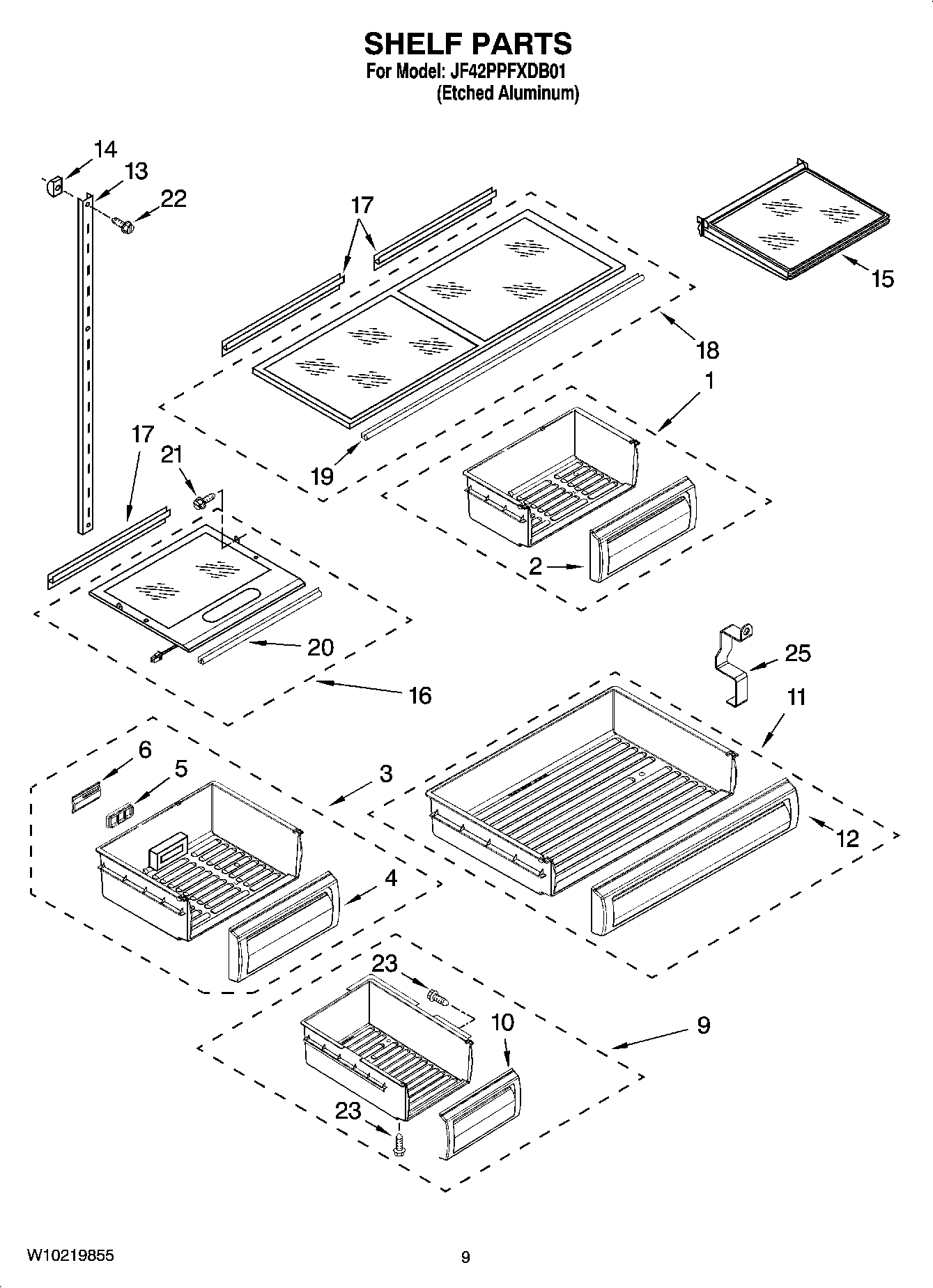

JF42PPFXDB01 06 – SHELF PARTS

JF42PPFXDB01 06 – SHELF PARTS

Written by

in

JF42PPFXDB01 06 – SHELF PARTS

Products

Position	Product
1	MAY 2268173
1	MAY 2268171
2	MAY 2256247
3	MAY 2317941
3	MAY 2317940
4	MAY 2256365
5	DUCT, PAN
6	DEFLECTOR
9	ASSEMBLY, ICE PAN
10	Front, Ice Pan
11	MAY 2327511
12	Front, Meat Pan
13	MAY 2327314
14	Screw Support, Ladder (8)
15	MAY W10183800
16	MAY 2320664
16	MAY 2320666
17	MAY 2309400
18	MAY W10183754
19	MAY 2309396
20	MAY 2309395
21	MAY 8281251
22	SCREW
23	MAY 488886
25	CLIP, BIN (RIGHT HAND)
25	CLIP, BIN (LEFT HAND)
