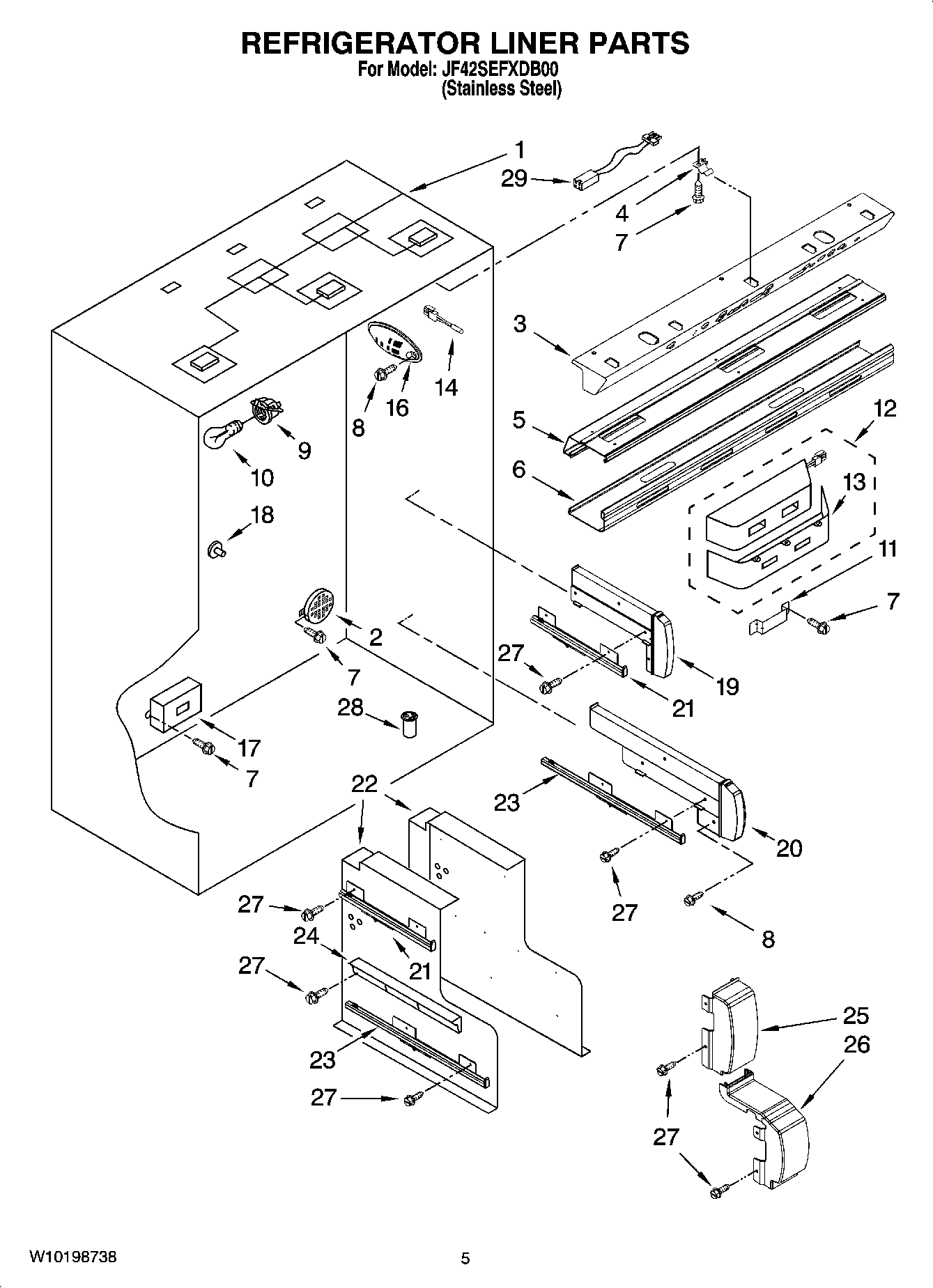

JF42SEFXDB00 04 – REFRIGERATOR LINER PARTS

JF42SEFXDB00 04 – REFRIGERATOR LINER PARTS

Written by

in

JF42SEFXDB00 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
2	MAY 2317004
3	MAY W10183797
4	MAY 2317000
5	MAY 2324969
6	MAY 2309248
7	SCREW
8	MAY 488163
9	MAY 2223857
10	Bulb, Light
11	MAY 2317917
12	MAY 2320523
14	Cover, Diffuser
16	MAY 2317105
17	DIFFUSER, CRISPER (COMPLETE)
18	MAY 2196483
19	MAY 2268332
19	MAY 2268331
20	MAY 2306475
20	MAY 2306474
21	Slide, Crisper (Right Vent)
21	Slide, Crisper (Left)
22	MAY 2320550
22	MAY 2320551
23	Slide, Crisper (Right Side)
23	Slide, Crisper (Left Side)
24	MAY 2314054
25	MAY 2309083
26	MAY 2318008
27	MAY W10001160
28	Valve
29	MAY 2310164
