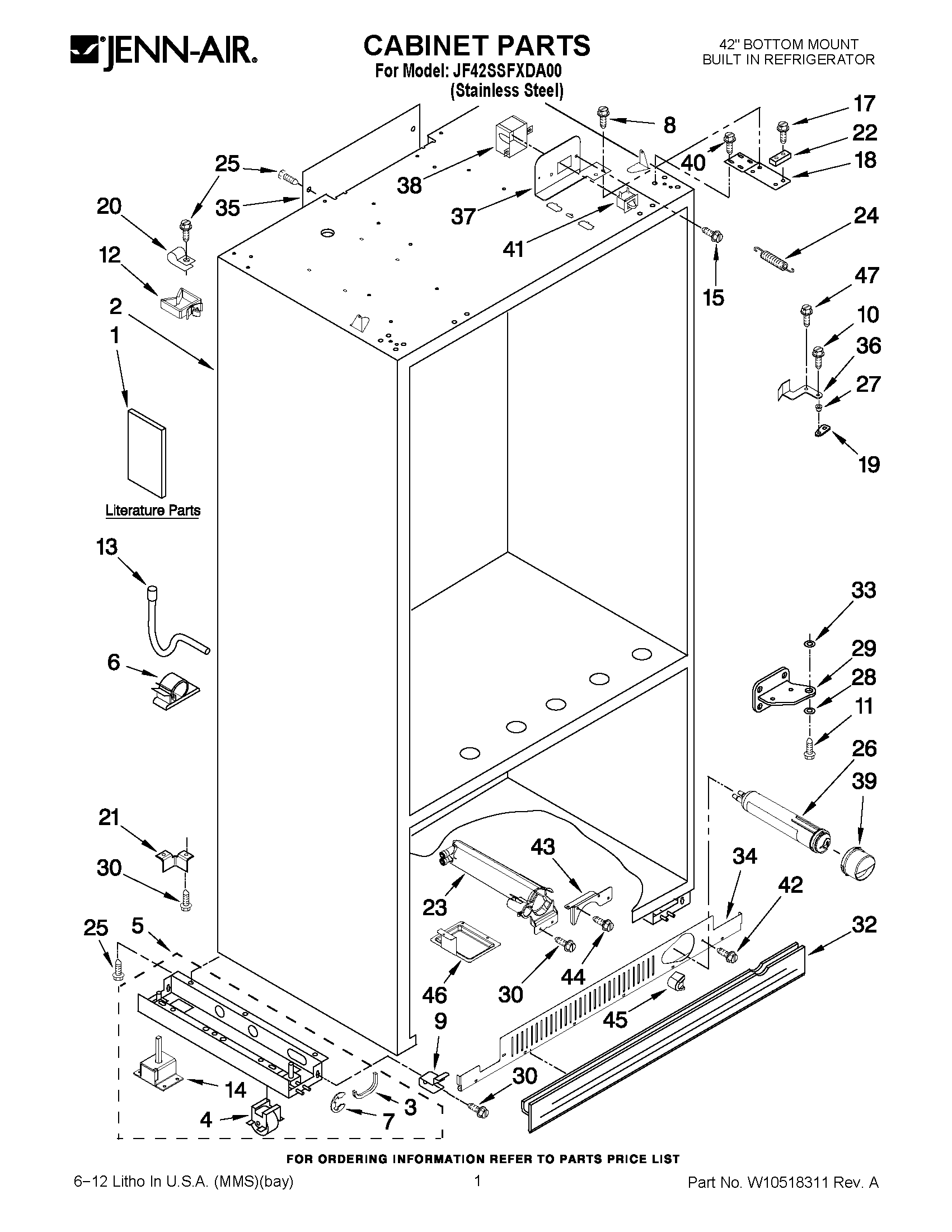

JF42SSFXDA00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10183782
1	MAY W10512205
1	MAY W10477526
1	MAY W10469187
1	USE AND CARE GUIDE
1	MAY 2317840
2	LINER (NOT A SERVICEABLE PART)
3	GROMMET, CROSSOVERTUBE
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	CLIP
7	Ring, Retainer
8	MAY 8281164
9	Mounting Stud, Grille
10	MAY W10485630
11	Screw 8-32 x 1/4
12	Wire Clip (5)
13	MAY 2314064
14	LEVELER ASSY
15	Screw
17	MAY W10005070
18	MAY 2316759
19	MAY 2320509
20	MAY 489348
21	Bracket, Support Base (Rear) (2)
22	MAY 2316758
23	MAY W10121140
24	Spring, Door Closure (Right Side)
25	SCREW
26	Filter, Water
27	MAY 2316859
28	Lock, Adjustable Bushing
29	HINGE, BOTTOM REFRIGERATOR DOOR
30	Screw (3)
32	Skirt-Grille, Bottom (Black)
33	MAY 2314023
34	MAY 2325188B
35	MAY W10426957
36	EXTENSION ARM, DOOR CLOSER (LEFT HAND)
36	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
37	MAY 2221096
37	MAY 2221097
38	Cover, Switch (2)
39	MAY 2260518B
40	Screw 1/4-20 x 5/8
41	MAY 1118894
42	MAY W10005050
43	BRACKET, FILTER
44	Screw
45	Button, Filter (Black)
46	Tray, Drip Filter
47	MAY 8533980
