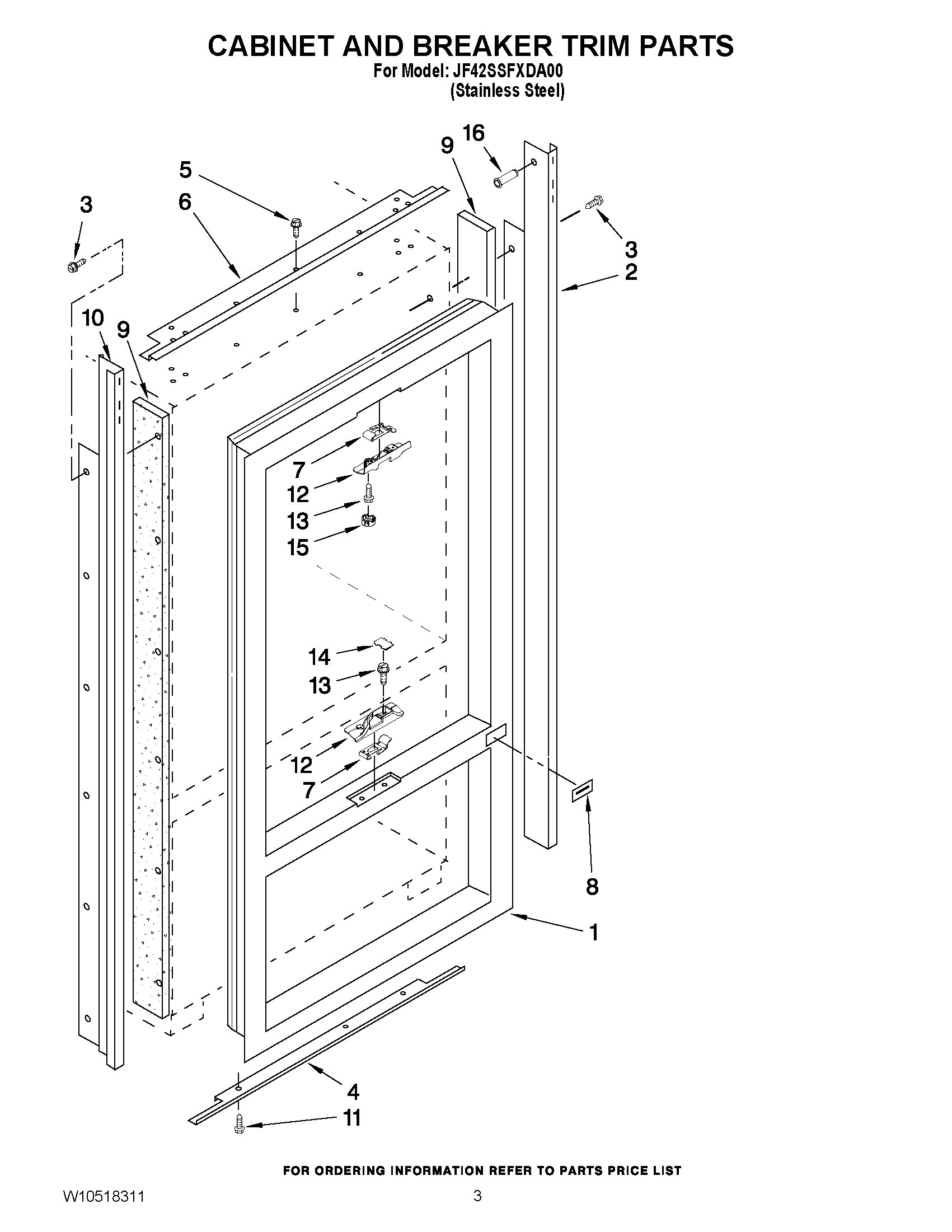

JF42SSFXDA00 02 – CABINET AND BREAKER TRIM PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	TRIM, CAB SIDE (RIGHT)
3	SCREW
4	Cabinet, Trim (Bottom)
6	TRIM, TOP CAB
7	MAY 2316858
7	MAY 2316857
8	COVER, HINGE (WHITE)
9	SEAL-TRIM, SIDE
10	TRIM, CAB SIDE (LEFT)
11	MAY W10001250
12	MAY 2309230
12	MAY 2309231
13	SCREW
14	MAY 2316899
15	MAY 2317078
16	Nutsert (4)
