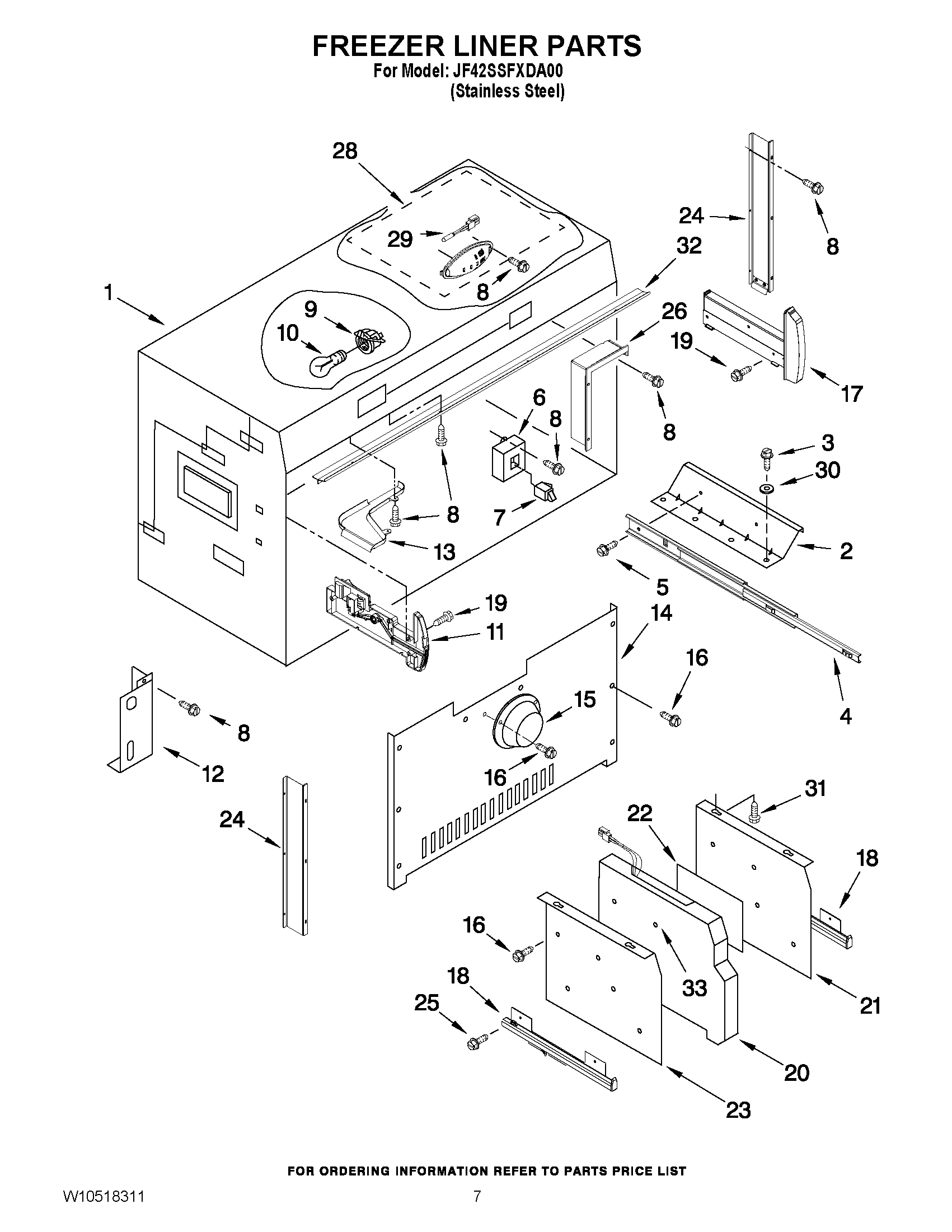

JF42SSFXDA00 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10423553
3MAY W10071460
4MAY W10423551
5MAY W10061370
6COVER, SWITCH
7MAY 1118894
8SCREW
9MAY W10191429
10Bulb, Light
11MAY W10321131
12MAY 2306187
13MAY 2317005
14MAY 2306100
15COVER, FAN
16SCREW
17MAY 2306106
18MAY 2306117
18MAY 2306116
20DIVIDER, FREEZER BINS
21SUPPORT, SLIDE (RIGHT HAND)
22MAY 2317927
23SUPPORT, SLIDE (LEFT HAND)
24BRACKET, EVAPORATOR COVER (LEFT HAND)
24MAY 2317893
25MAY 488163
26MAY W10121940
28ASSEMBLY, THERMISTOR
29MAY 2188820
30MAY W10075920
31Screw
32MAY W10135430
33MAY 2198643
