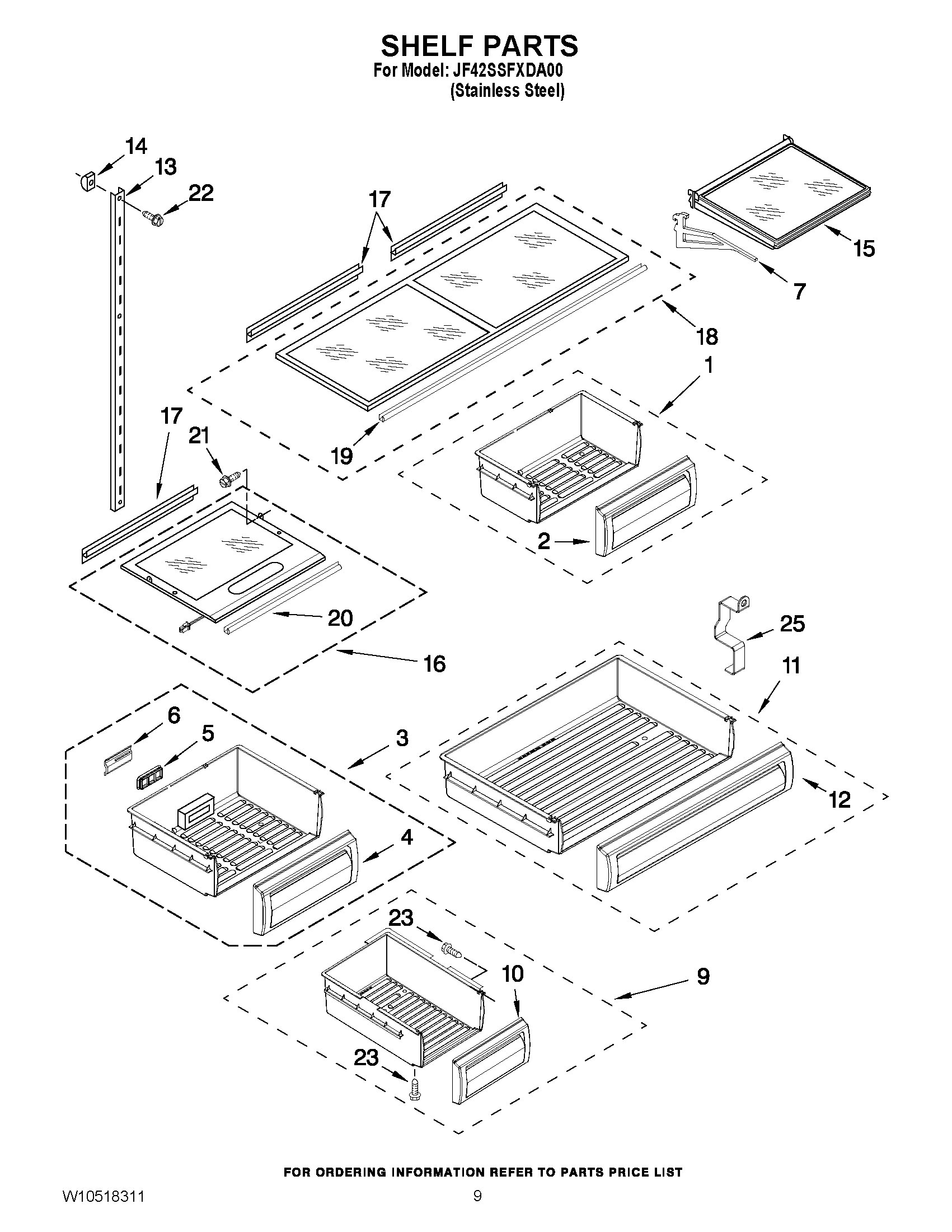

JF42SSFXDA00 06 – SHELF PARTSadmin2025-04-26T09:25:06+00:00JF42SSFXDA00 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | CRISPER PAN ASSEMBLY INCLUDES No. 2) (LEFT) |
| 1 | CRISPER PAN ASSEMBLY INCLUDES No. 2) (RIGHT) |
| 2 | MAY 2256247 |
| 3 | DELI PAN ASSEMBLY (INCL. No.4, 5 & 6) (LEFT) |
| 3 | DELI PAN ASSEMBLY (INCL. No.4, 5 & 6) (RIGHT) |
| 4 | MAY 2256365 |
| 5 | DUCT, PAN |
| 6 | DEFLECTOR |
| 7 | MAY W10187549 |
| 9 | ASSEMBLY, ICE PAN |
| 10 | Front, Ice Pan |
| 11 | MAY 2327511 |
| 12 | Front, Meat Pan |
| 13 | LADDER, SHELF (CENTER) |
| 13 | LADDER, SHELF (SIDE) |
| 14 | Screw Support, Ladder (8) |
| 15 | SHELF (4) |
| 16 | MAY W10183755 |
| 16 | MAY W10183756 |
| 17 | MAY 2309400 |
| 18 | MAY W10183754 |
| 19 | MAY 2309396 |
| 20 | MAY 2309395 |
| 21 | MAY 8281251 |
| 22 | SCREW |
| 23 | MAY 488886 |
| 25 | CLIP, BIN (RIGHT HAND) |
| 25 | CLIP, BIN (LEFT HAND) |
