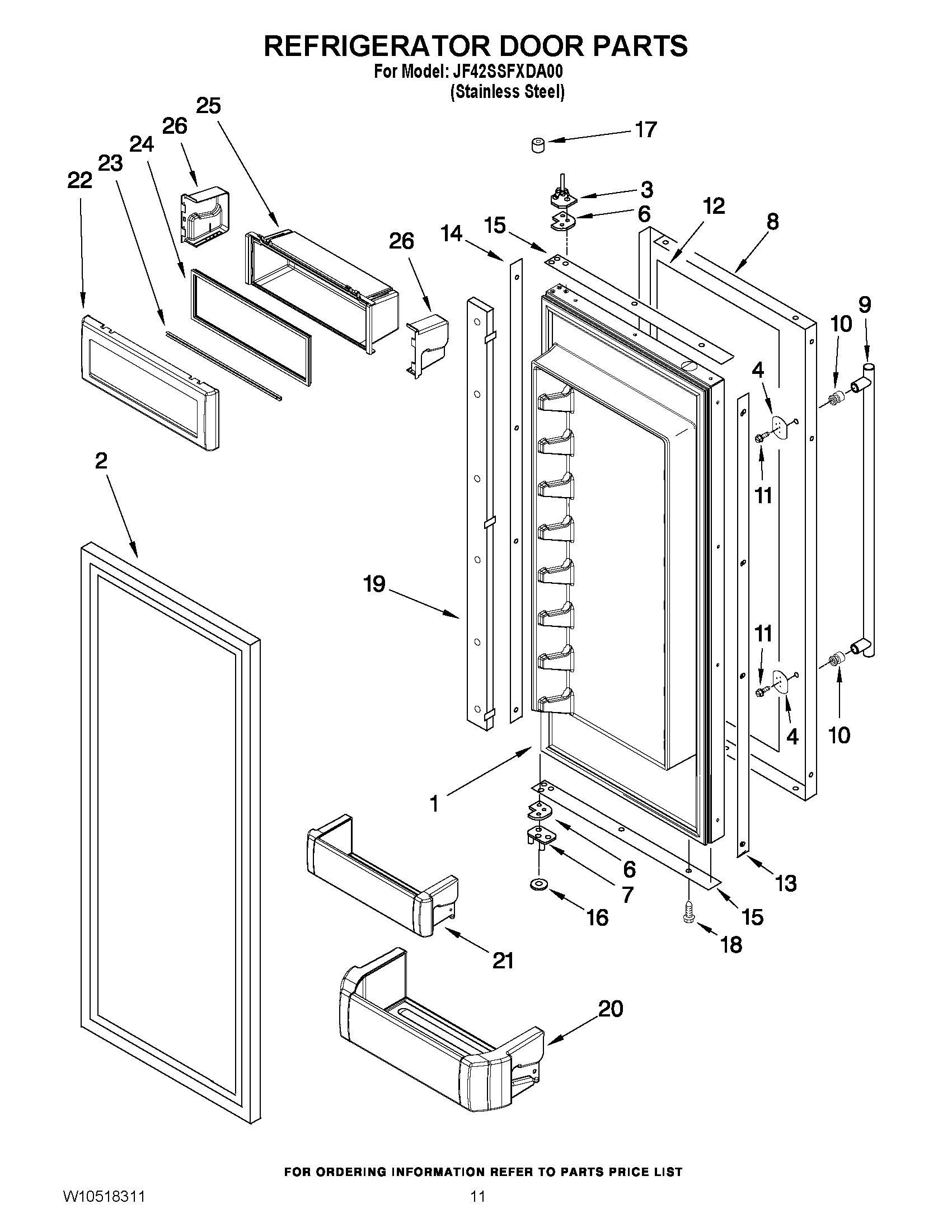

JF42SSFXDA00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Includes Item 2) (Left)
1	Door, Refrigerator (Includes Item 2) (Right)
2	MAY 2268265
3	MAY 2320642
4	MAY W10127710
6	Spacer-Door, Top & Bottom
7	MAY W10273367
7	MAY W10273369
8	MAY W10491169
9	HANDLE, DOOR (STAINLESS)
10	MOUNT, HANDLE
11	Screw
12	MAY 2309218
13	MAY 2314068
14	MAY 2316768
15	MAY 2309204
16	WASHER
17	MAY 2316760
18	Screw, 8-15 x .500 (Stainless Steel)
19	MAY 2307938
20	BUCKET, GALLON
21	BUCKET, SHALLOW
22	MAY W10131132
23	MAY 2222795
24	MAY 2222981
25	MAY W10323035
26	END CAP (LEFT HAND)
26	END CAP (RIGHT HAND)
