JF42SSFXDA01 03 – TOP GRILLE AND UNIT COVER PARTS
Written by
in

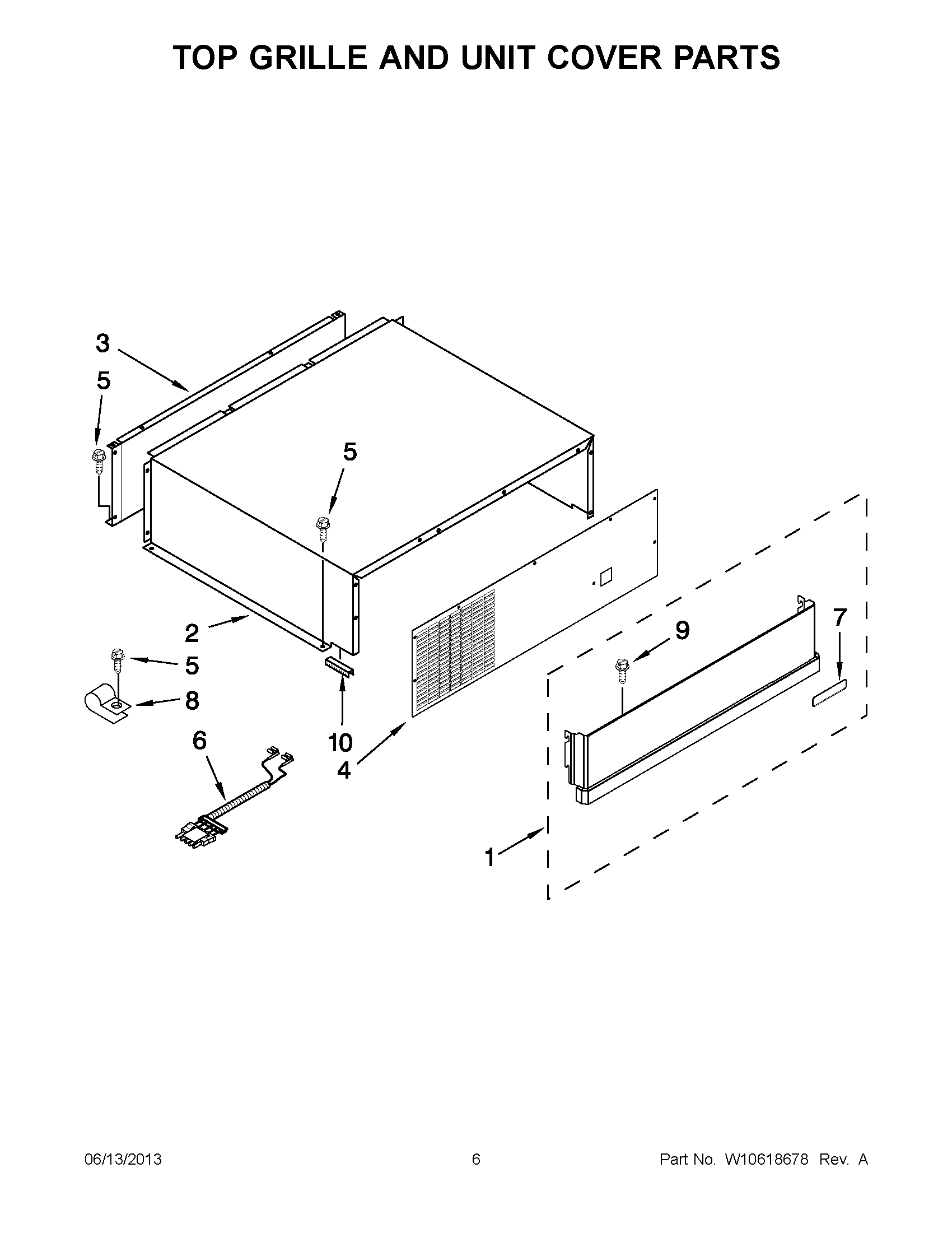

JF42SSFXDA01 03 – TOP GRILLE AND UNIT COVER PARTS
Products
| Position | Product |
|---|---|
| 1 | MAY W10321125 |
| 2 | Cover, Unit |
| 3 | Back Panel |
| 4 | UNIT COVER, FRONT |
| 5 | Screw |
| 6 | MAY 2187946 |
| 7 | ASSEMBLY, BADGE (STAINLESS) |
| 8 | MAY 489348 |
| 9 | Screw 8-32 x 5/16 |
| 10 | GROMMET |
