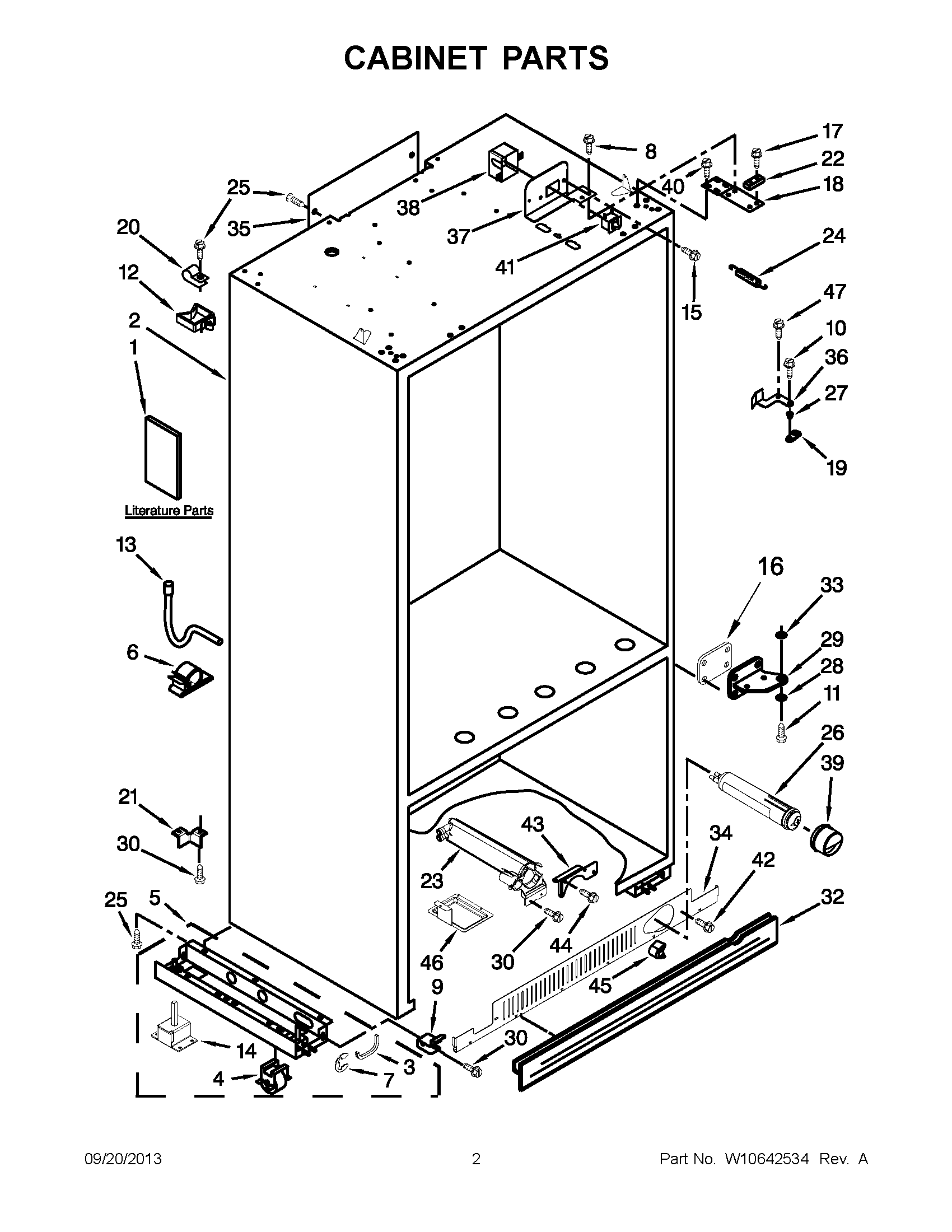

JF42SSFXDA02 02 – CABINET PARTSadmin2025-04-26T09:25:57+00:00JF42SSFXDA02 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10555566 |
| 1 | MAY W10512205 |
| 1 | MAY W10477526 |
| 1 | MAY W10469187 |
| 1 | MAY 2317840 |
| 1 | USE AND CARE GUIDE |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3 | GROMMET, CROSSOVERTUBE |
| 4 | MAY W10138054 |
| 5 | SUPPORT, LEVELER ASSEMBLY (RIGHT HAND) |
| 5 | SUPPORT, LEVELER ASSEMBLY (LEFT HAND) |
| 6 | CLIP |
| 7 | Ring, Retainer |
| 8 | MAY 8281164 |
| 9 | Mounting Stud, Grille |
| 10 | MAY W10485630 |
| 11 | Screw 8-32 x 1/4 |
| 12 | Wire Clip (5) |
| 13 | MAY 2314064 |
| 14 | LEVELER ASSY |
| 15 | Screw |
| 16 | MAY 2207470 |
| 17 | MAY W10005070 |
| 18 | MAY 2316759 |
| 19 | MAY 2320509 |
| 20 | MAY 489348 |
| 21 | Bracket, Support Base (Rear) (2) |
| 22 | MAY 2316758 |
| 23 | MAY W10121140 |
| 24 | Spring, Door Closure (Right Side) |
| 25 | SCREW |
| 26 | Filter, Water |
| 27 | MAY 2316859 |
| 28 | Lock, Adjustable Bushing |
| 29 | HINGE, BOTTOM REFRIGERATOR DOOR |
| 30 | MAY W10001250 |
| 32 | Skirt-Grille, Bottom (Black) |
| 33 | MAY 2314023 |
| 34 | MAY 2325188B |
| 35 | MAY W10426957 |
| 36 | EXTENSION ARM, DOOR CLOSER (RIGHT HAND) |
| 36 | EXTENSION ARM, DOOR CLOSER (LEFT HAND) |
| 37 | MAY 2221097 |
| 37 | MAY 2221096 |
| 38 | Cover, Switch (2) |
| 39 | MAY 2260518B |
| 40 | Screw 1/4-20 x 5/8 |
| 41 | MAY 1118894 |
| 42 | MAY W10005050 |
| 43 | BRACKET, FILTER |
| 44 | Screw |
| 45 | Button, Filter (Black) |
| 46 | Tray, Drip Filter |
| 47 | MAY 8533980 |
