JFC2070KRB 01 – CABINET BACK

JFC2070KRB 01 – CABINET BACK

Written by

in

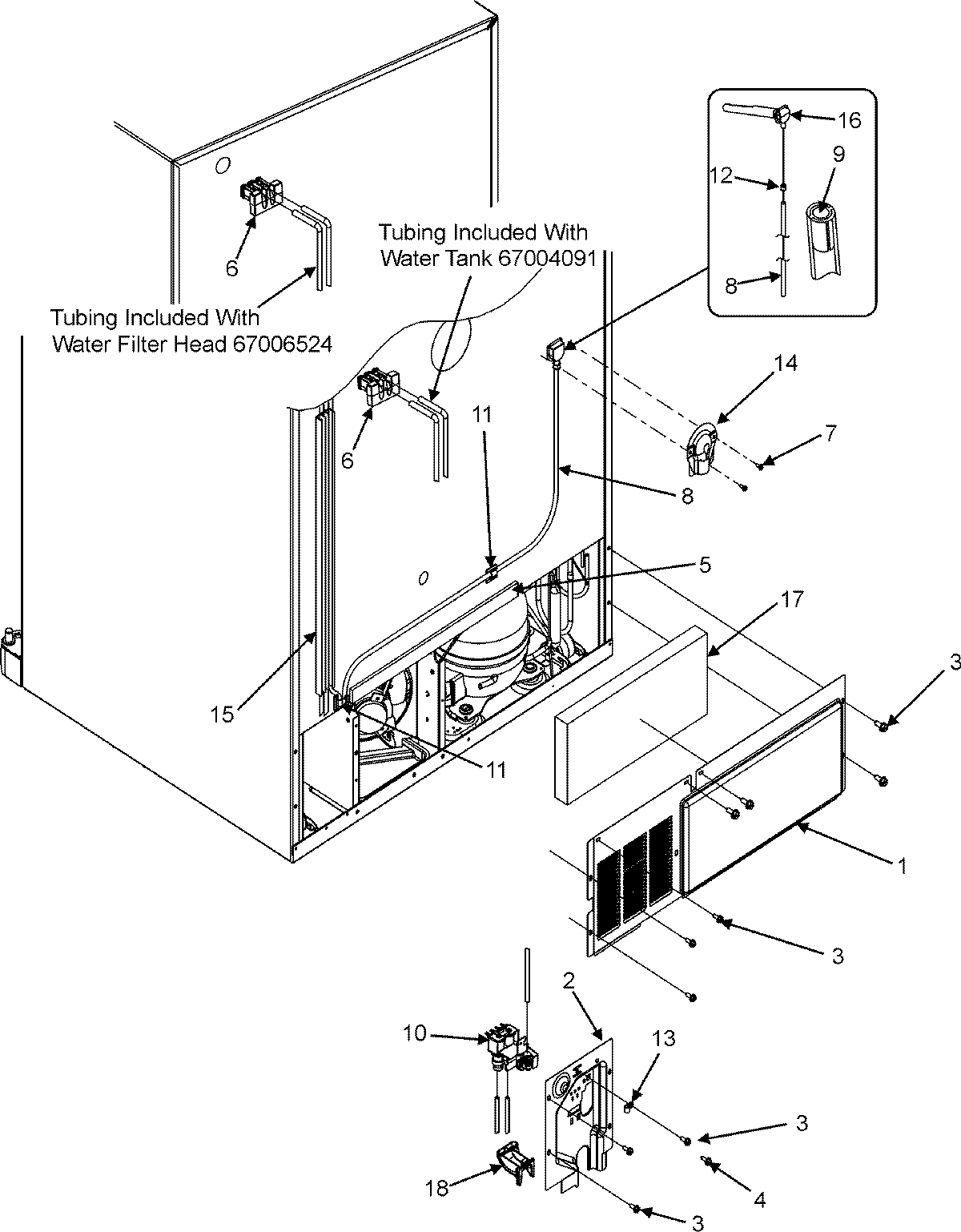

JFC2070KRB 01 – CABINET BACK

Products

PositionProduct
1MAY 67006101
2MAY 67004098
3Screw (10)
4MAY 67006662
5Gasket
6WP12777701 Whirlpool Refrigerator Filler Block
7WP98165 Whirlpool Screw
8Tubing, Plastic
9MAY A3223101
10WP67006531 Whirlpool Water Inlet Valve
11WPM0104106 Whirlpool Refrigerator Clip
12Clip
13W10833902 Whirlpool Refrigerator Clamp
14COVER, WATER LINE
15TRACK, WATERLINE
16ELBOW, FILL TUBE
1767003796 Whirlpool Refrigerator Fiber Acoustic
1812831101 Whirlpool Refrigerator Tube Clamp
19MAY M0104102
20WP67006506 Whirlpool Refrigerator Power Cord
