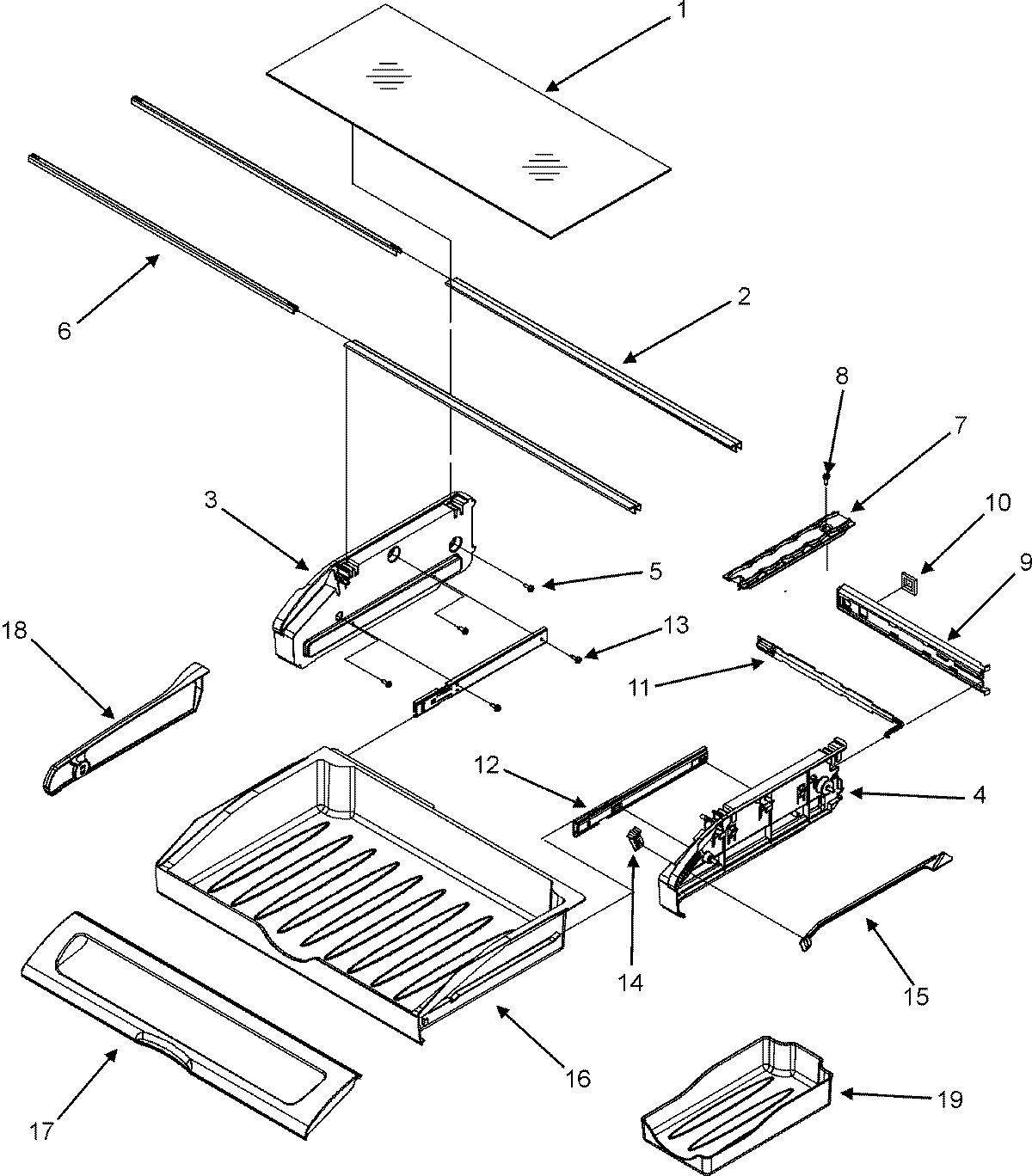

JFC2070KRB 11 – PANTRY ASSEMBLY

JFC2070KRB 11 – PANTRY ASSEMBLY

Written by

in

JFC2070KRB 11 – PANTRY ASSEMBLY

Products

PositionProduct
1WP67002332 Whirlpool Refrigerator Glass Pan
2WP67006010 Whirlpool Refrigerator Shelf Trim
3WP12656105 Whirlpool Drawer Support
4WP12656018 Whirlpool Drawer Support
5Screw (2)
6WP12227305WD Whirlpool Drawer Support
7WP67001719 Whirlpool Refrigerator Track
8MAY 67006400
9MAY 67005625
1067002329 Whirlpool Refrigerator Pantry Gasket
11MAY 67003793
12WPW10235370 Whirlpool Refrigerator Glide
13WP98165 Whirlpool Screw
14W11498983 Whirlpool Refrigerator Knob
15MAY 67003794
16W11490183 Whirlpool Refrigerator Utility Pan
17WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
18WP67002321 Whirlpool Refrigerator Divider Panel
19MAY 67006817
